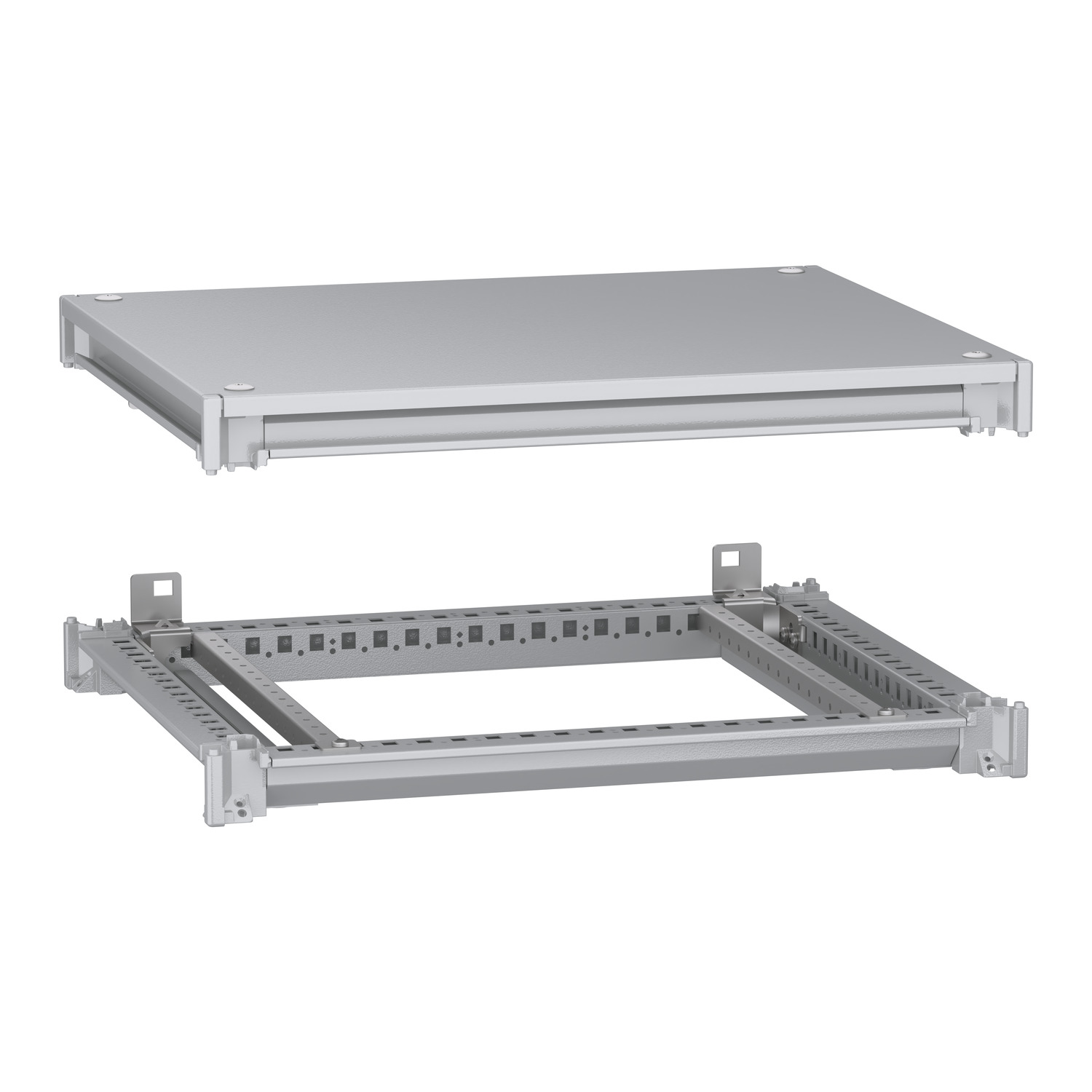

Bottom and top frame, PanelSeT SFN, for electrical enclosure W600 D500mm, roof included

Manufacturer: Schneider Electric

SKU: NSYSFNC65

GTIN: 3606486104002

PDF

Image of product

Promotional video

Instruction sheet

How to video

Declaration of conformity

Technical illustration

Full Description

These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 600 mm and 500 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. This product is qualified as a green premium, with minimal use of hazardous substances.

Availability: Out of stock

Old price: $722.66 inc GST

Price: $585.35 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	framework kit
Enclosure nominal dimensions	- W: 600 mm D: 500 mm
Range	PanelSeT
Range compatibility	PanelSeT SFN
Device composition	1 bottom frame, 1 roof, 1 top frame
Mounting location	bottom of vertical uprights, top of vertical uprights
Accessory / separate part category	enclosure accessory
Quantity per set	set of 1
Device application	multi-purpose
Complementary
Height	110 mm
Surface finish	epoxy-polyester powder
Fixing mode	by screws - each corner of enclosure location
Colour	grey (RAL 7035)
Material	steel
Depth	500 mm
Width	600 mm
Contractual warranty
Warranty	18
