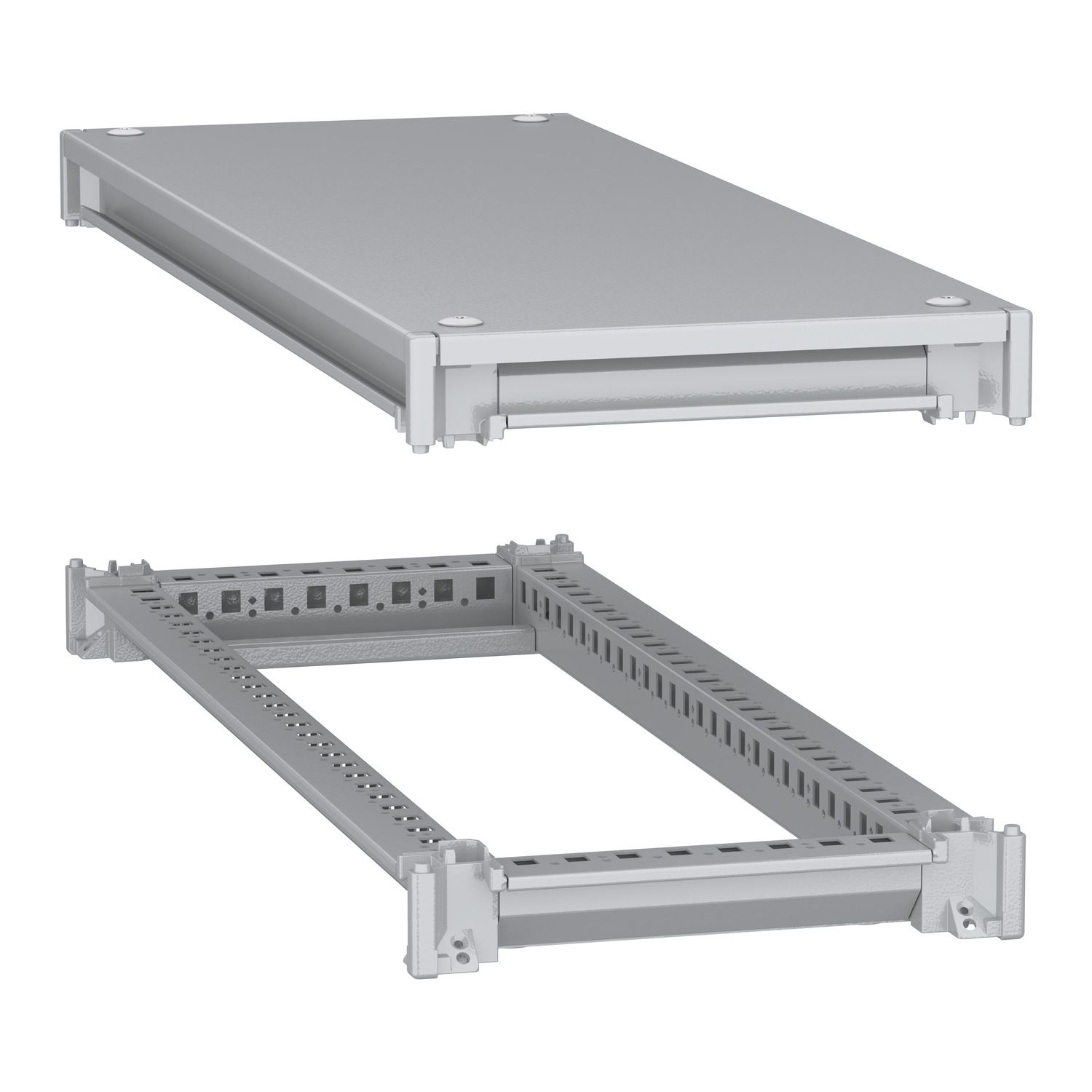

Bottom and top frame, PanelSeT SFN, for electrical enclosure W300 D800mm, roof included
Manufacturer: Schneider Electric
SKU: NSYSFNC38
GTIN: 3606486103937
These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 300 mm and 800 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. The enclosure has UL Types 3R/12 rating and an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an rating. Operation is convenient due to rear, front, and side access.
Availability: Out of stock
Old price: $727.58 inc GST
$589.34 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type framework kit
Enclosure nominal dimensions - W: 300 mm D: 800 mm
Range PanelSeT
Range compatibility PanelSeT SFN
Device composition 1 bottom frame, 1 roof, 1 top frame
Mounting location top of vertical uprights, bottom of vertical uprights
Accessory / separate part category enclosure accessory
Quantity per set set of 1
Device application multi-purpose
Complementary
Height 110 mm
Surface finish epoxy-polyester powder
Fixing mode by screws - each corner of enclosure location
Colour grey (RAL 7035)
Material steel
Depth 800 mm
Width 300 mm
Contractual warranty
Warranty 18
