Folding support tray - 800 mm enclosure - 30 kg load

Manufacturer: Schneider Electric

SKU: NSYSDT8

GTIN: 3606485131511

PDF

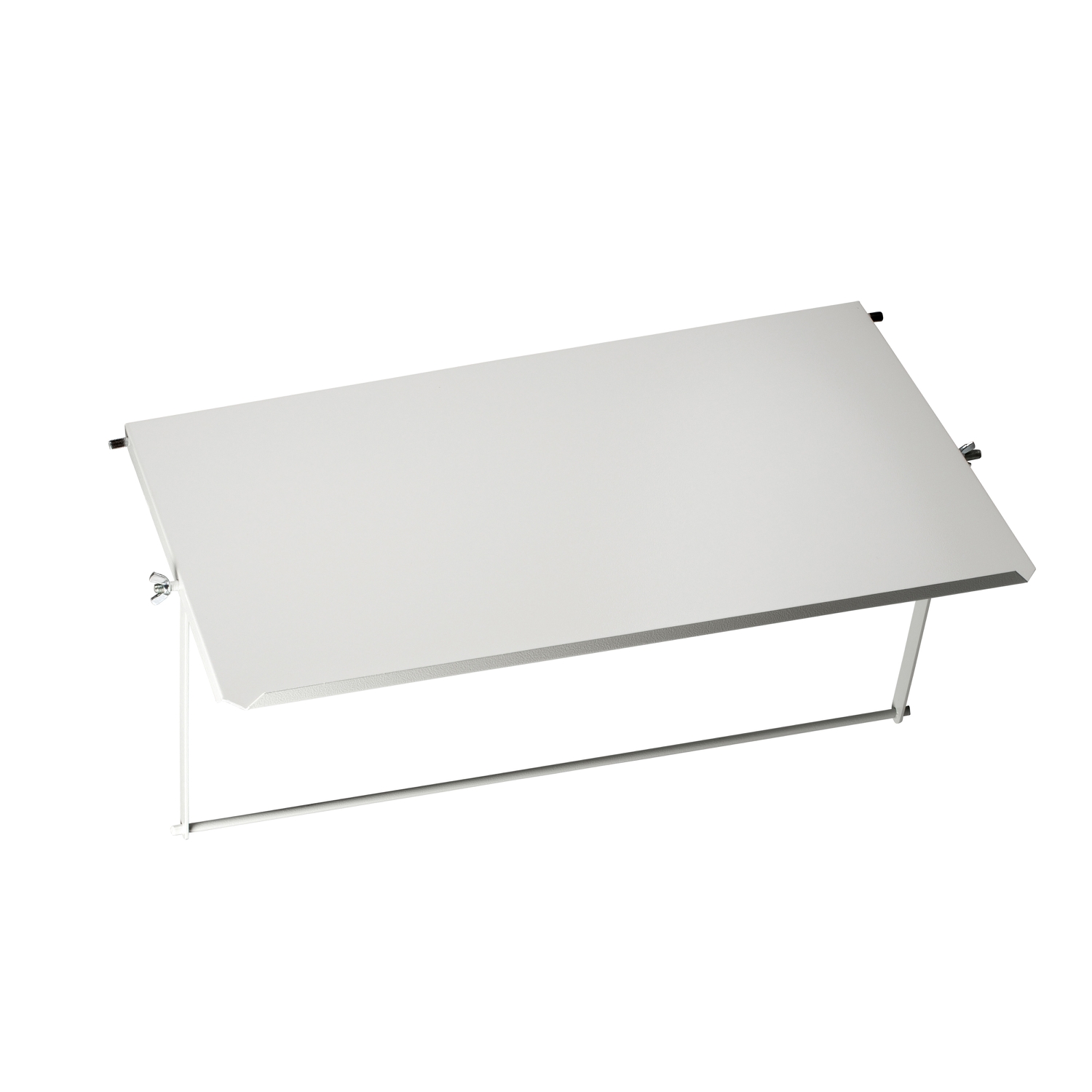

Image of product

Full Description

Folding support tray for Spacial enclosures. Enclosure dimensions is W is800 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.

Availability: Out of stock

Old price: $672.58 inc GST

Price: $544.79 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Mounting support	direct mounting
Product or component type	folding support tray
Enclosure nominal dimensions	-
Range	PanelSeT
Range compatibility	PanelSeT SF, SM, SFX and SMX enclosures
Device composition	1 x fixing element, 1 x folding support tray
Mounting location	door cross rail, on door reinforcement frame
Quantity per set	set of 1
Device application	door accessories
Complementary
Adjustment	adjustable in height, steps of 25 mm for door
Surface finish	painted
Fixing mode	direct fixing - door location
Colour	door: grey (RAL 7035)
Operating angle	60 °, 45 °, 90 °, 75 °
Material	door: steel
Maximum load	30 kg
Thickness	1.5 mm
Depth	350 mm
Width	nominal: 325 mm
Contractual warranty
Warranty	18
