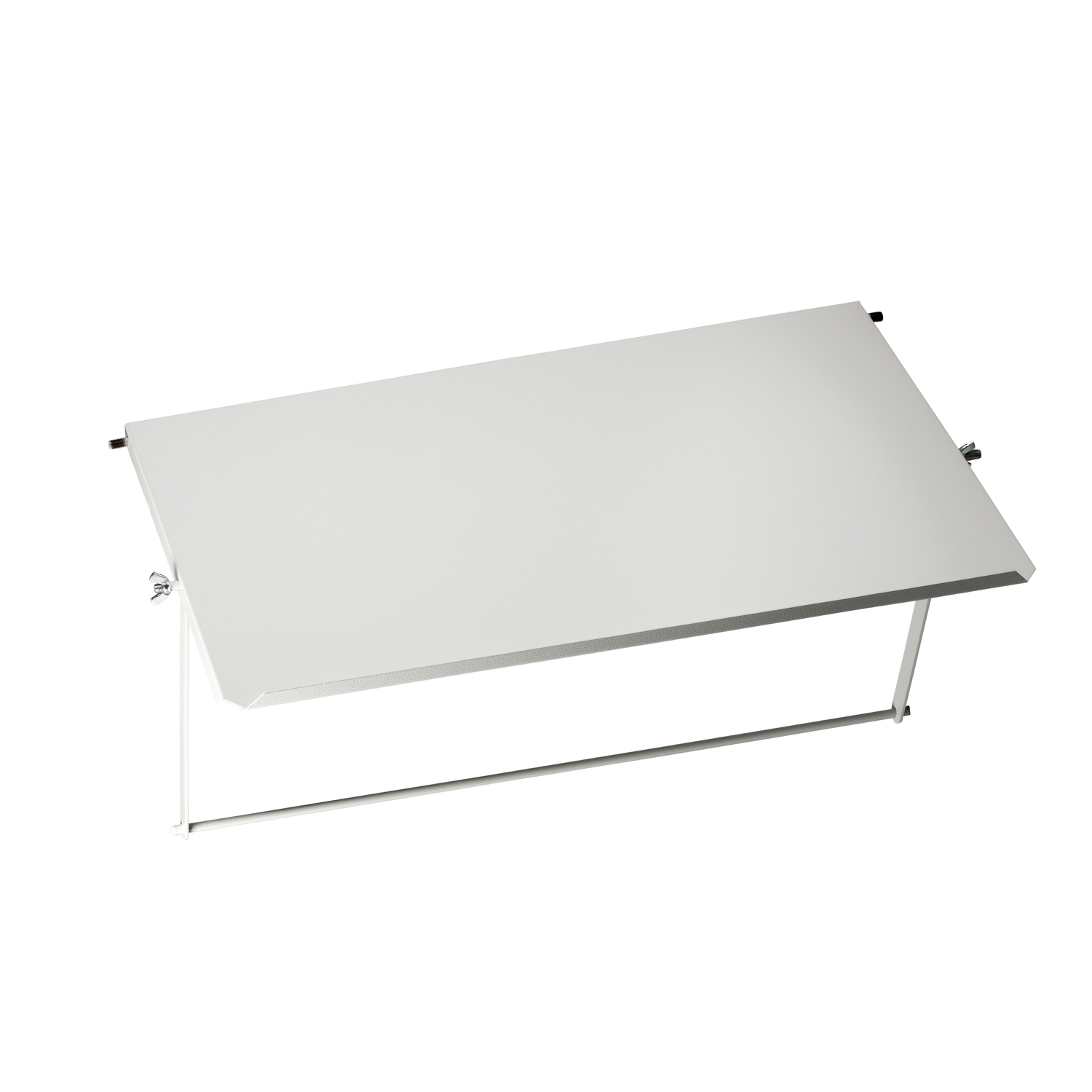

Folding support tray - 500 mm enclosure - 30 kg load

Manufacturer: Schneider Electric

SKU: NSYSDT5

GTIN: 3606485131498

PDF

Image of product

Full Description

Folding support tray for Spacial enclosures. Enclosure dimensions is W is500 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.

Availability: Out of stock

Old price: $497.64 inc GST

Price: $403.09 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Mounting support	cross rails
Product or component type	folding support tray
Enclosure nominal dimensions	- W: 500 mm
Range	PanelSeT
Range compatibility	PanelSeT SF, SM, SFX, SMX, S3D, CRN enclosures
Device composition	fixing elements, 1 x tray
Mounting location	on door reinforcement frame, on door cross rails for 1000 mm wide enclosures
Quantity per set	set of 1
Device application	multi-purpose
Complementary
Height	50 mm
Adjustment	adjustable in height, steps of 25 mm
Surface finish	epoxy-polyester powder
Fixing mode	by fixing element
Colour	grey (RAL 7035)
Operating angle	45 °, 60 °, 75 °, 90 °
Material	steel
Maximum load	30 kg/m²
Thickness	1.5 mm
Depth	350 mm
Width	nominal: 325 mm
Contractual warranty
Warranty	18
