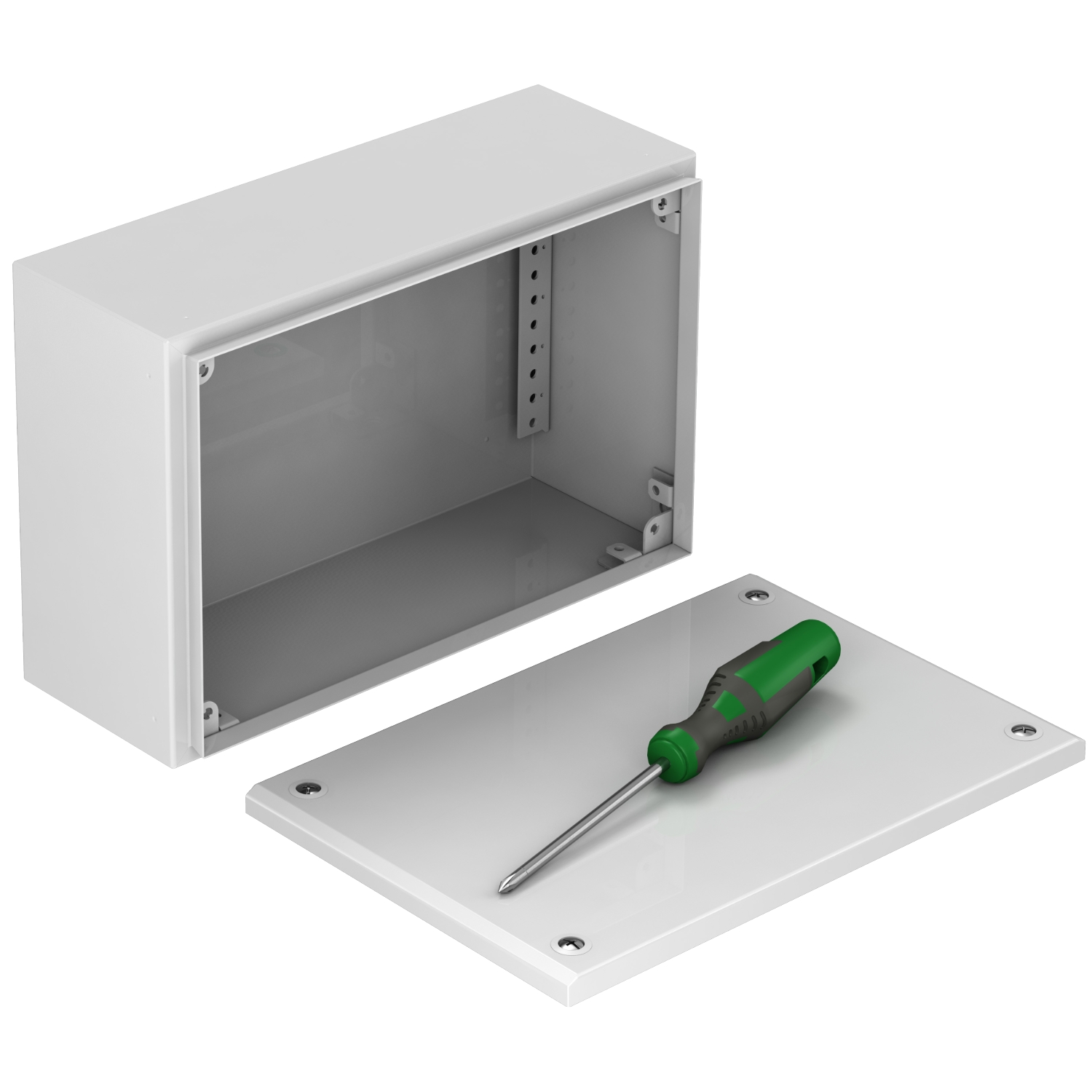

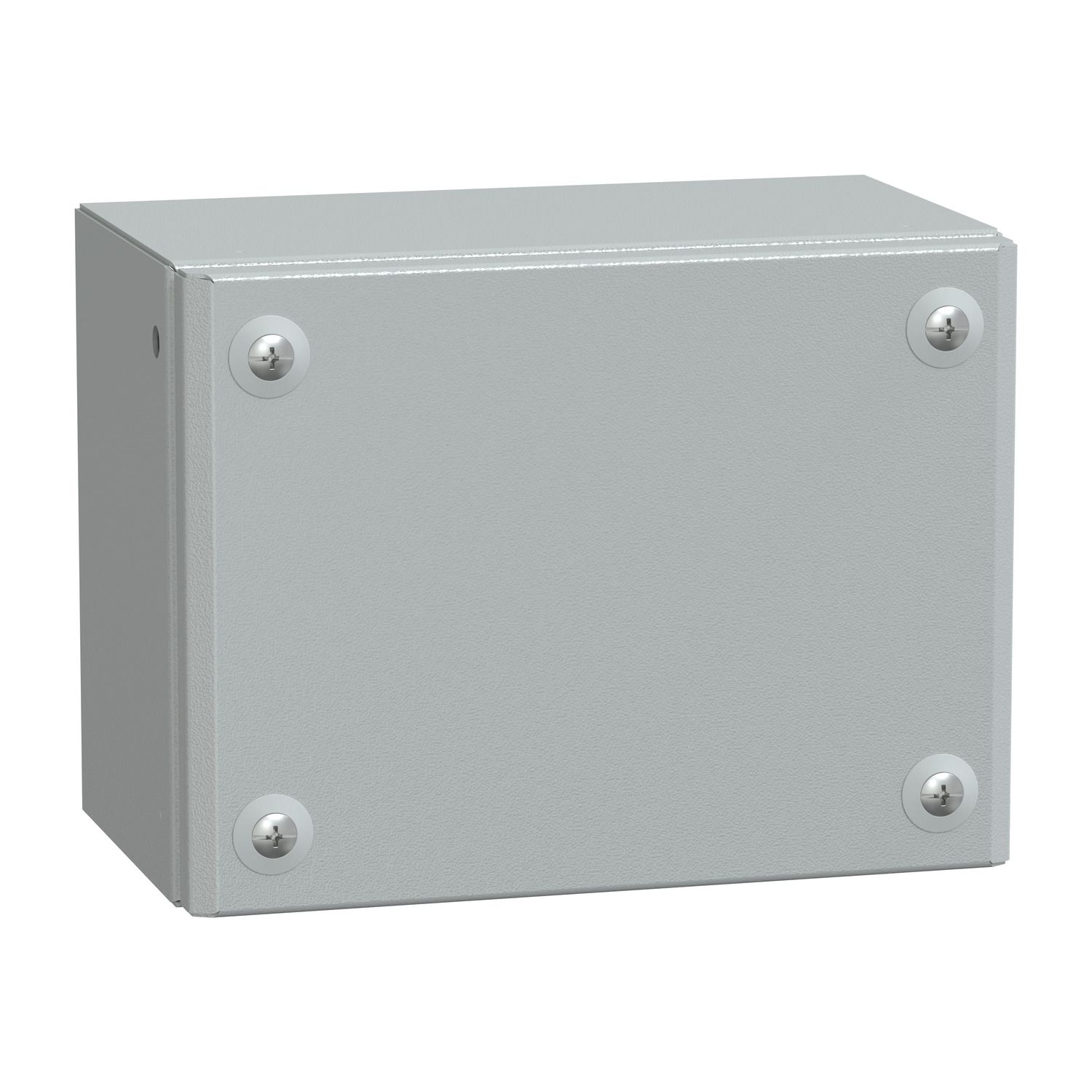

Industrial box for Spacial SBM. Multi purpose. 150 x 200 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of steel with polyester powder finish. Protection IP 66, IK10.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 200 mm |
| Device short name | SBM |
| Device application | multi-purpose |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | wall mounted |
| Cover fixing | half turn metal screw |
| Body type | single piece body folded and welded |
| Range | Spacial |
| Type of front cover | plain door |
| Enclosure nominal height | 150 mm |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Lock type | captive screw PZ2 outside sealed area |
| Product name | Spacial SBM |
| Enclosure type | flat face box |
| Product or component type | industrial box |
| Removable parts | cover by captive screws |
| Complementary | |
| Colour | grey (RAL 7035) |
| Material | sheet steel |
| Ambient air temperature for storage | -35-60 °C |
| Net weight | 1.542 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Surface finish | polyester powder |
| Standards | IEC 62208 |
| Ambient air temperature for operation | -35-80 °C |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | BV, UL, DNV-GL, LR |
