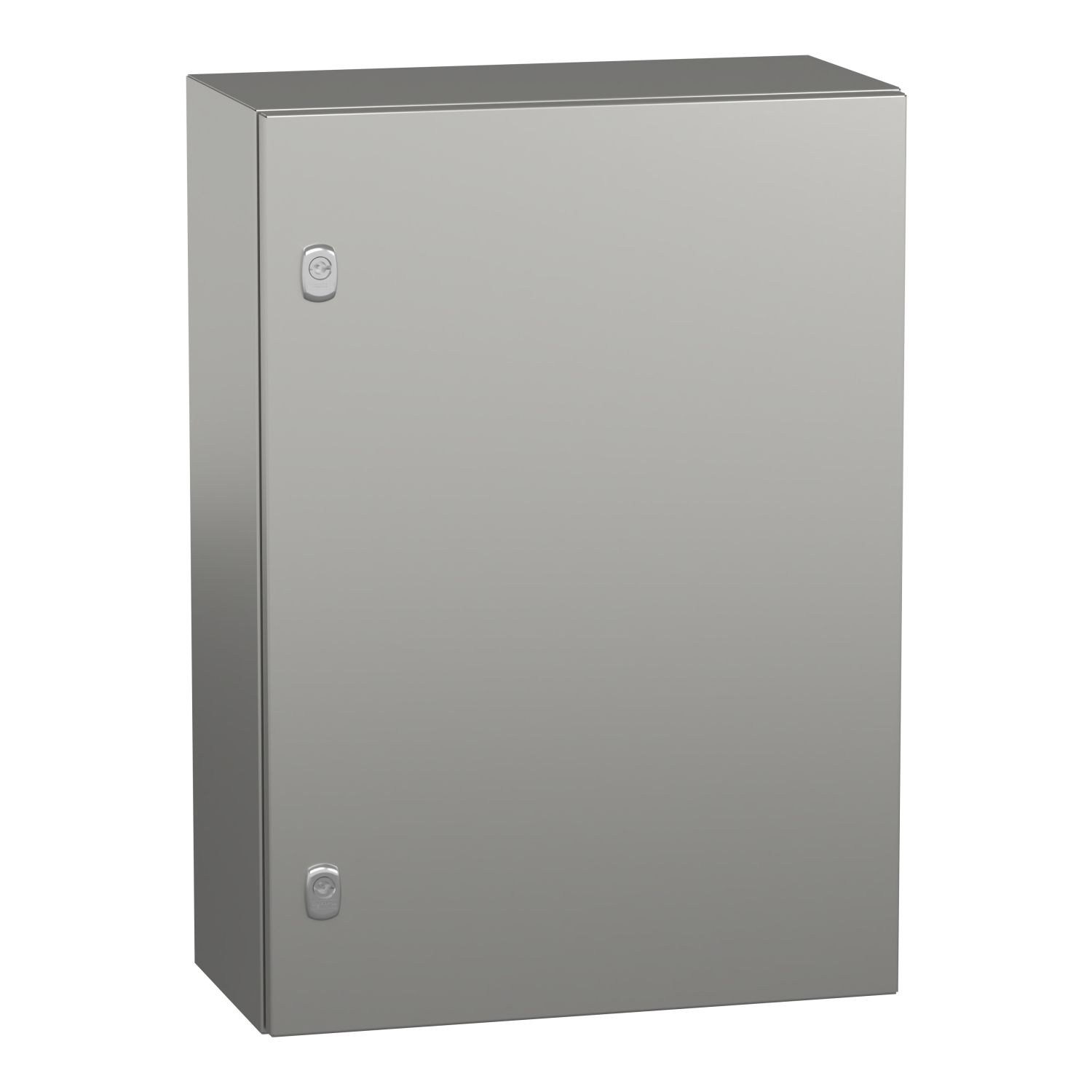

Spacial S3X stainless steel 316L wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments It is corrosion-resistant and has an IK10 (IEC 62262) rating for high impact resistance and an IP66 (IEC 60529) rating for dust and water resistance The enclosure has a nominal height, width and depth of 700mm, 500mm and 250mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and consists of a body, a plain door and two locks The door can be opened up to 120° and the opening side can be reversed The door has two lock points with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 17,44kg It is certified by UL 508 type A and CAN/CSA 22, and is compliant with IEC 62208 standards
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 500 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 250 mm |
| Range | Spacial |
| Enclosure nominal height | 700 mm |
| Device composition | 2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body |
| Product name | Spacial S3X |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Complementary | |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Surface finish | lock: chromium plated, body and door: Scotch-Brite® brushed |
| Material | body and door: stainless steel 316L, hinge: stainless steel, lock: zamak |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 17.44 kg |
| Lock type | 2 points lock, 3 mm double-bar |
| Body type | gutter shaped front rail, single piece body, cross-shaped structure |
| Type of gland plate | without gland plate |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | specific hygiene, corrosive |
| Standards | IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 type A |
