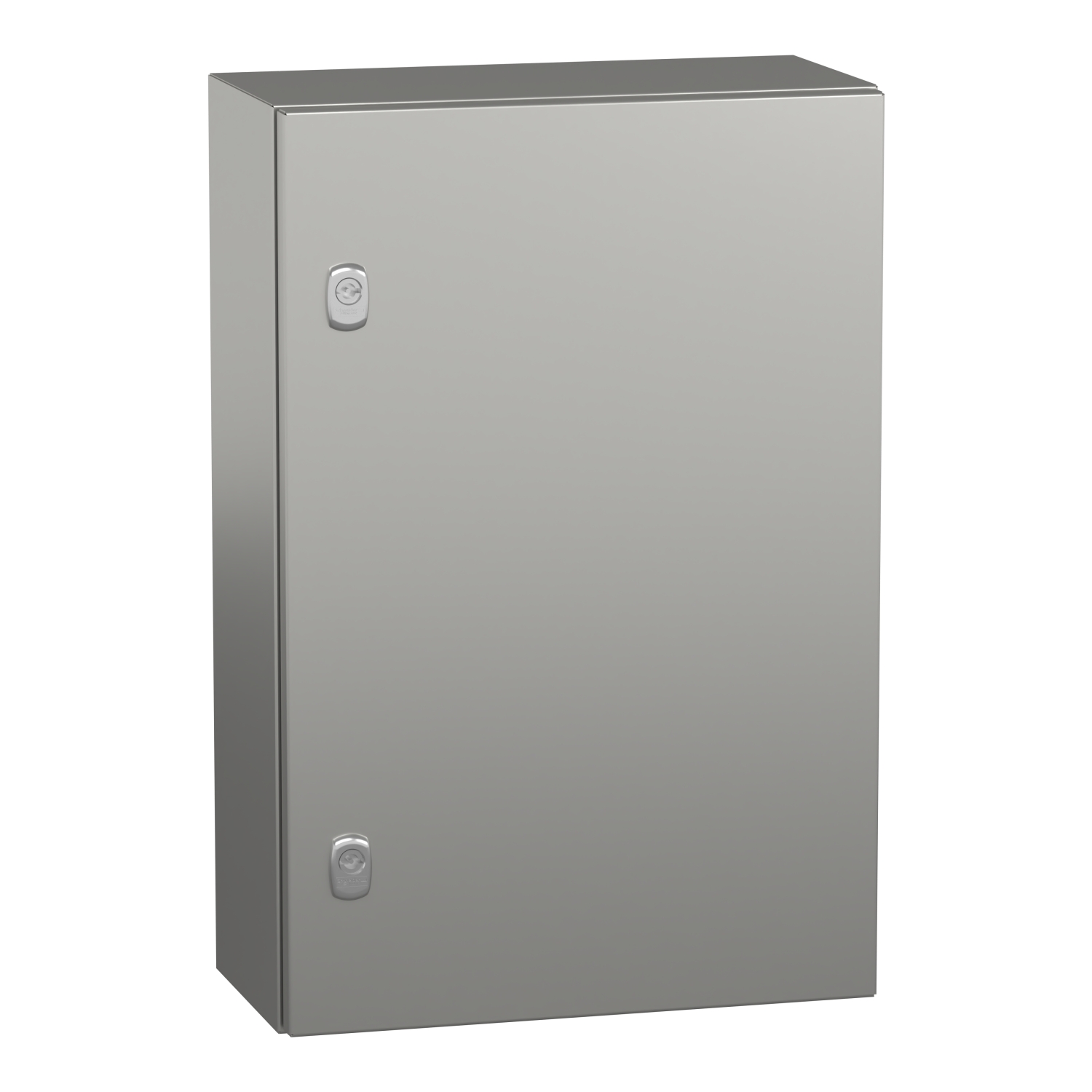

Spacial S3X is a stainless steel 316L wall-mounting enclosure designed for multi-purpose applications and resistance to corrosion It has a nominal height, width and depth of 600mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and is designed to withstand high impact with an IK10 (IEC62262) rating and high resistance to dust and water with an IP66 (IEC60529) rating The enclosure consists of a body, a plain door, two locks and two perforated vertical profiles The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 9,52kg It has product certifications from UL 508 type A and CAN/CSA 22
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 400 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 200 mm |
| Range | Spacial |
| Enclosure nominal height | 600 mm |
| Device composition | 2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body |
| Product name | Spacial S3X |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Complementary | |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Surface finish | lock: chromium plated, body and door: Scotch-Brite® brushed |
| Material | body and door: stainless steel 316L, hinge: stainless steel, lock: zamak |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 9.52 kg |
| Lock type | 2 points lock, 3 mm double-bar |
| Body type | gutter shaped front rail, single piece body, cross-shaped structure |
| Type of gland plate | without gland plate |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | specific hygiene, corrosive |
| Standards | IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 type A |
