Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 600 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 200 mm |
| Range | Spacial |
| Enclosure nominal height | 400 mm |
| Device composition | 1 door, 1 lock: door, 1 body |

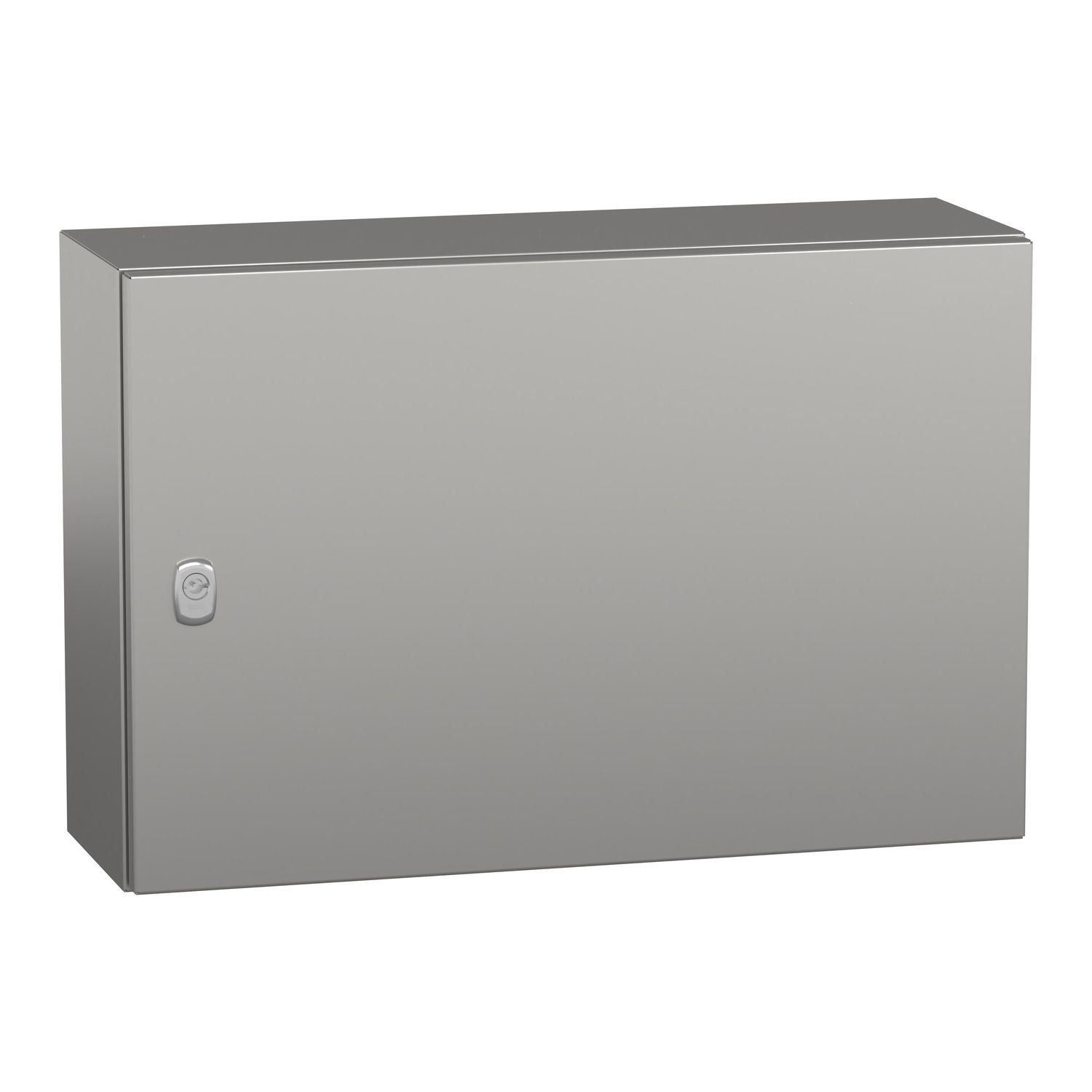

| Product name | Spacial S3X |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Complementary | |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Surface finish | lock: chromium plated, body and door: Scotch-Brite® brushed |
| Material | body and door: stainless steel 316L, hinge: stainless steel, lock: zamak |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 9.246 kg |
| Lock type | 3 mm double-bar lock |
| Body type | gutter shaped front rail, single piece body, cross-shaped structure |
| Type of gland plate | without gland plate |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | corrosive, specific hygiene |
| Standards | IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | UL 508 type A, CAN/CSA 22 |
