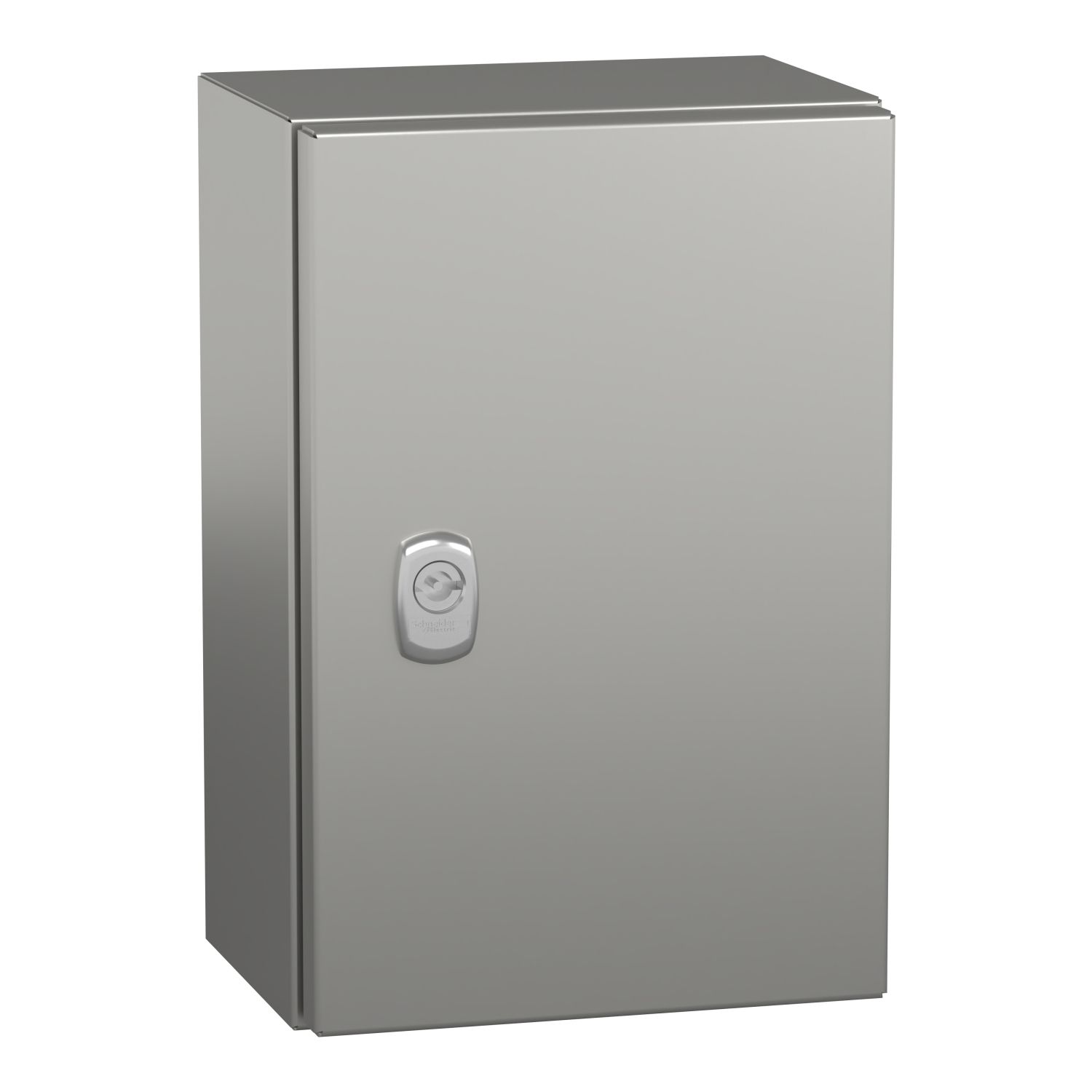

Spacial S3X is a wall-mounting enclosure made of stainless steel 316L, designed for multi-purpose applications This enclosure has a nominal height, width and depth of 300mm, 200mm and 150mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and a chromium plated lock It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) The enclosure consists of a body, a plain door and a 3mm double-bar lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door can be removed for maintenance purposes The net weight of the enclosure is 3,12kg and it has certifications from UL 508 type A and CAN/CSA 22
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 200 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 150 mm |
| Range | Spacial |
| Enclosure nominal height | 300 mm |
| Device composition | 1 door, 1 lock: door, 1 body |
| Product name | Spacial S3X |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Complementary | |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Surface finish | lock: chromium plated, body and door: Scotch-Brite® brushed |
| Material | body and door: stainless steel 316L, hinge: stainless steel, lock: zamak |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 3.12 kg |
| Lock type | 3 mm double-bar lock |
| Body type | gutter shaped front rail, single piece body, cross-shaped structure |
| Type of gland plate | without gland plate |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | specific hygiene, corrosive |
| Standards | IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 type A |
