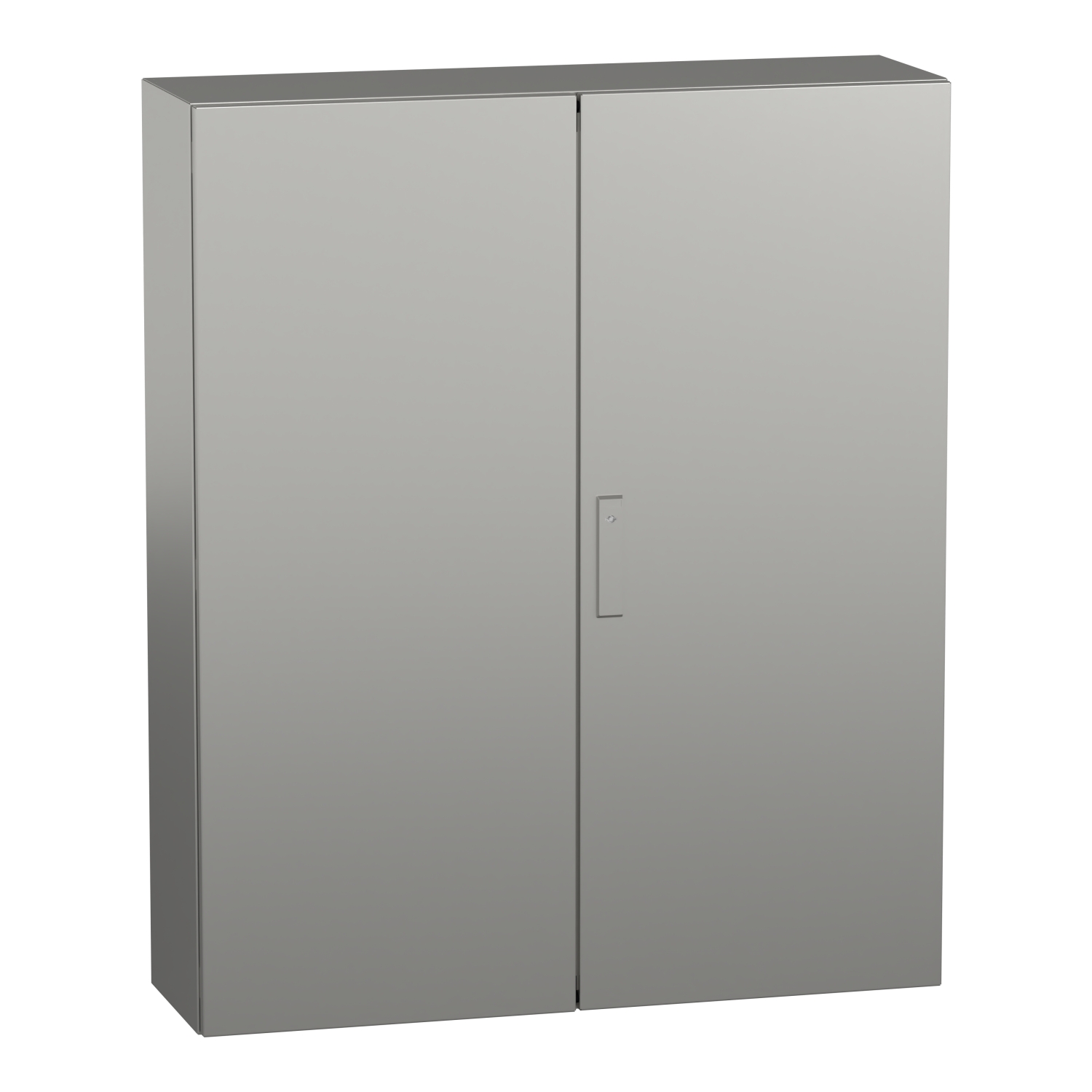

Wall mounted enclosure, Spacial S3X, stainless steel 304L,double plain door, 1200x1000x300mm, IP55
Manufacturer: Schneider Electric
SKU: NSYS3X121030
GTIN: 3606480154997
Old price: $3,427.60 inc GST
$2,776.36 inc GST
Supported cards
Supported cards
Spacial S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1200mm, 1000mm and 300mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, two plain doors and one lock The doors can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three lock points lock with a 3mm double-bar insert The doors can be removed for maintenance purposes The net weight of the enclosure is 51,8kg

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 1000 mm
Device application multi-purpose
Enclosure nominal depth 300 mm
Range Spacial
Enclosure nominal height 1200 mm
Device composition 1 reinforcement frame drilled: door, 1 lock: door, 2 door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish body and door: Scotch-Brite® brushed
Material hinge: stainless steel, body and door: stainless steel 304L
Number of doors front face: 2 door(s)
Door opening side reversible (120 °)
Net weight 51.8 kg
Lock type 3 points lock, 3 mm double-bar
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP55 conforming to IEC 60529
Environmental characteristic corrosive, specific hygiene
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications UL 508 type A, CAN/CSA 22
