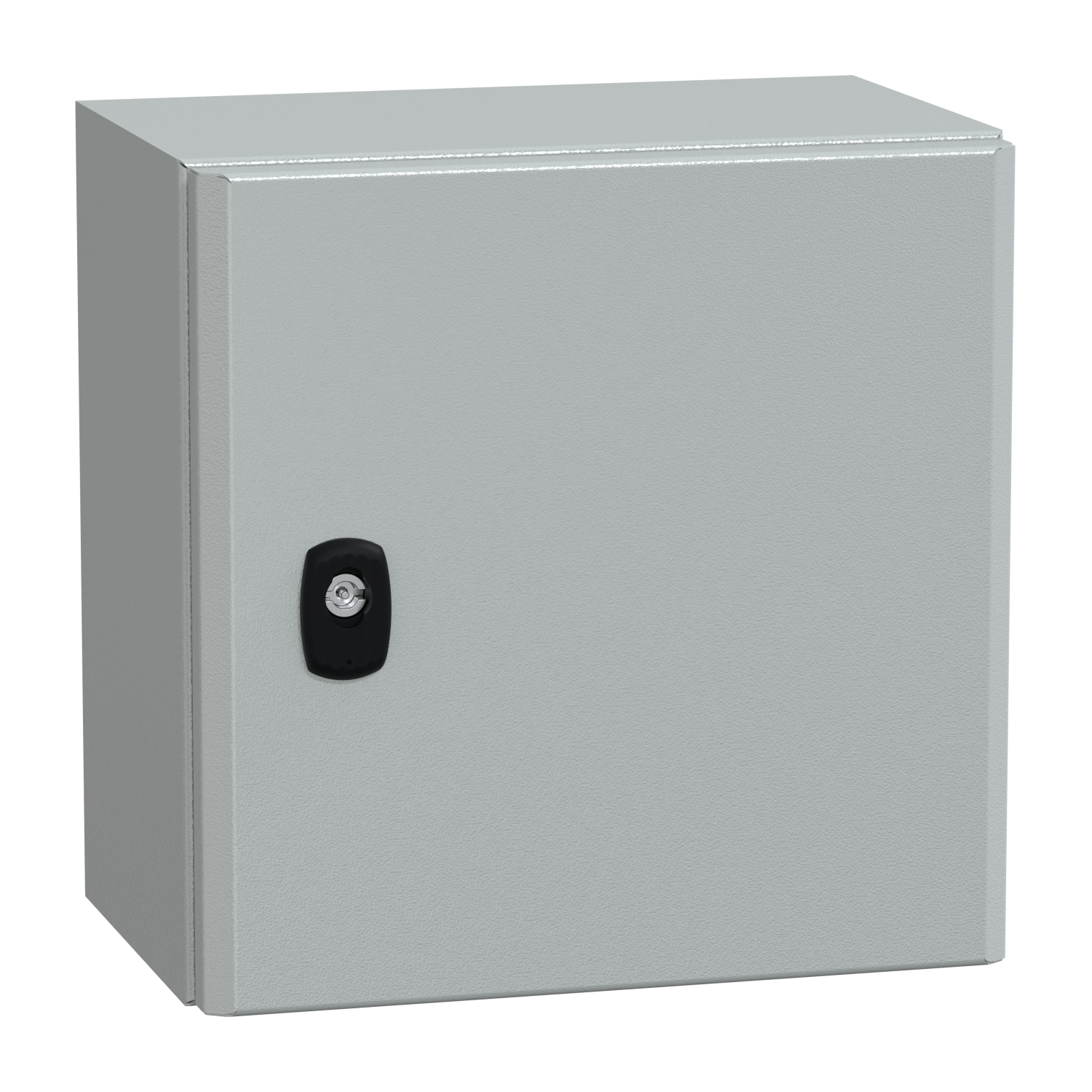

Spacial S3DEX wall mounted steel enclosure with plain door. 300 x 300 x 200 mm. ATEX certified application. Single piece body with clamped blind nut, without mounting plate. Gutter-shaped front rail double sheet thickness. Double bar lock. Steel made, epoxy-polyester powder finish. Protection IP 66 enclosures with single door, IK10, Grey RAL 7035.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | without mounting plate |
| Enclosure nominal width | 300 mm |
| Device application | ATEX certified application |
| Enclosure nominal depth | 200 mm |
| Door type | plain |
| Range | Spacial |
| Enclosure nominal height | 300 mm |
| Device composition | body with clamped blind nut, 1 lock, 1 door |
| Product name | Spacial S3DEX |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Type of gland plate | without gland plate |
| Product destination | for potentially explosive atmosphere |
| Complementary | |
| Colour | grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Material | steel |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 4.6 kg |
| Lock type | double-bar lock |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Variant particularity | gutter-shaped front rail double sheet thickness, single piece body |
| Standards | EN 60079-31:2009, EN 60079-7:2007, EN 60079-0:2012 |
| Removable parts | door by hinges |
| Accessibility for operation | front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
