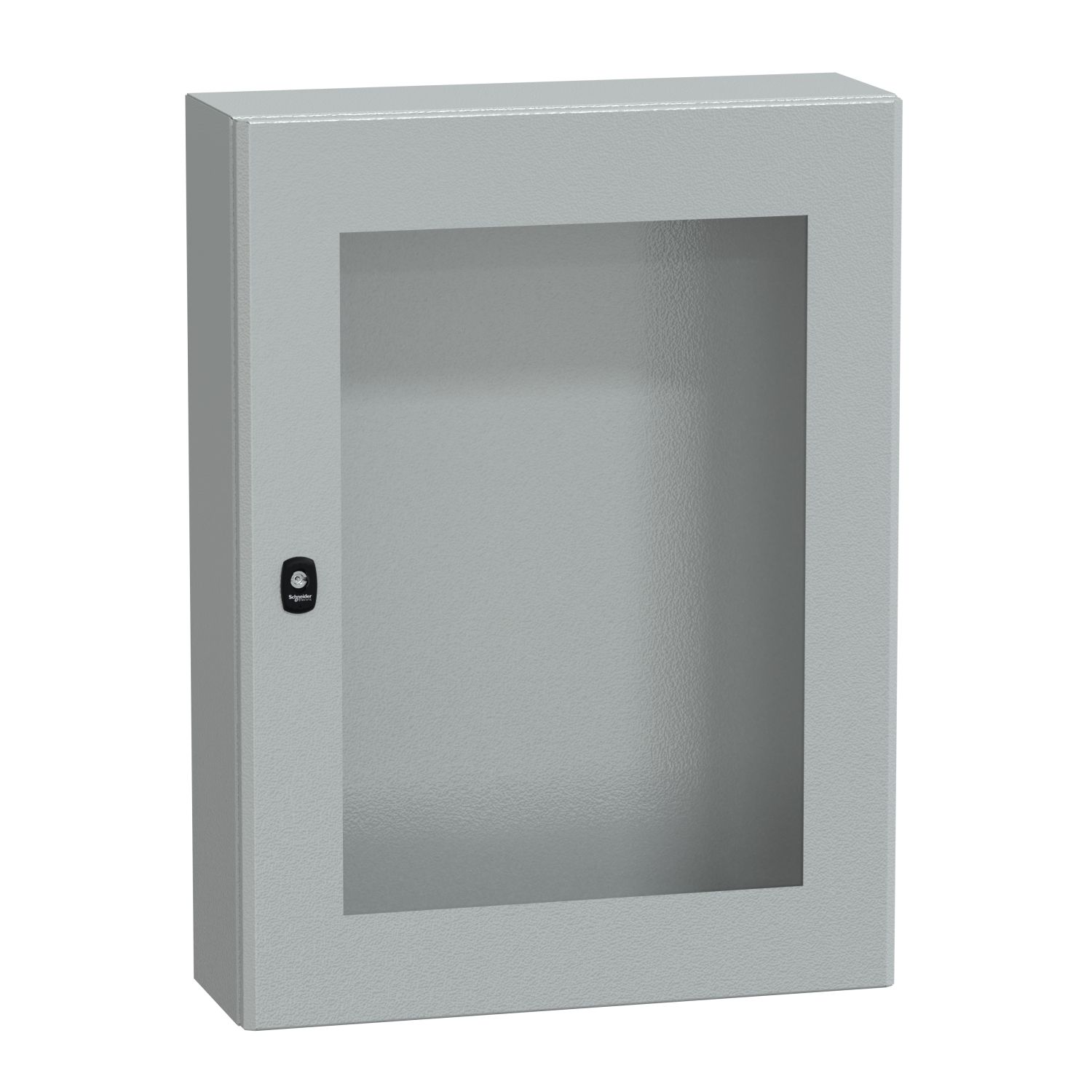

Spacial S3D wall mounted steel enclosure with glazed door. 800 x 600 x 200 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | without mounting plate |
| Enclosure nominal width | 600 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 200 mm |
| Door type | glazed |
| Range | Spacial |
| Enclosure nominal height | 800 mm |
| Device composition | 1 cable gland plate, 1 lock, 1 door, 1 body |
| Product name | Spacial S3D |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Type of gland plate | standard |
| Complementary | |
| Colour | grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Material | door: steel and security glass, body: steel |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 21.5 kg |
| Lock type | 3 points lock, 3 mm double-bar |
| Variant particularity | gutter-shaped front rail double sheet thickness, single piece body |
| Standards | IEC 62208 |
| Removable parts | cable gland plate by screws, door by hinges |
| Accessibility for operation | front |
| Product certifications | LR, cUL, DNV, UL, BV, GL |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
Only registered users can write reviews
Related products
Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
NSYAEDH120S3D
Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
$9.52 inc GST
$7.71 inc GST
Door switch for PanelSeT WM enclosure. N/C contact (on lock), 3 A/240 V AC.
NSYINLCRN
Door switch for PanelSeT WM enclosure. N/C contact (on lock), 3 A/240 V AC.
$57.53 inc GST
$46.60 inc GST
Key handle with key 1242E, Spacial S3D, for Spacial S3D enclosure
NSYAEDL1242S3D
Key handle with key 1242E, Spacial S3D, for Spacial S3D enclosure
$35.97 inc GST
$29.14 inc GST
Monobloc perforated plates H800xW600mm with universal perforations 11x26mm
NSYMR86
Monobloc perforated plates H800xW600mm with universal perforations 11x26mm
$409.20 inc GST
$331.45 inc GST

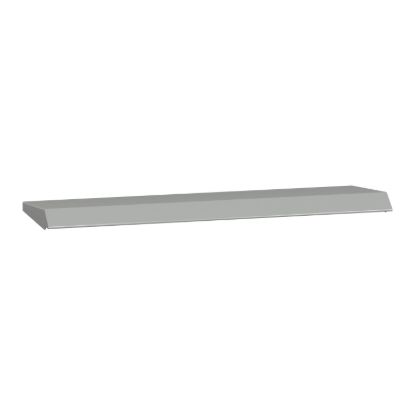

PanelSeT WM enclosure canopy W600xD200 Colour RAL7035.. Fixings supplied.
