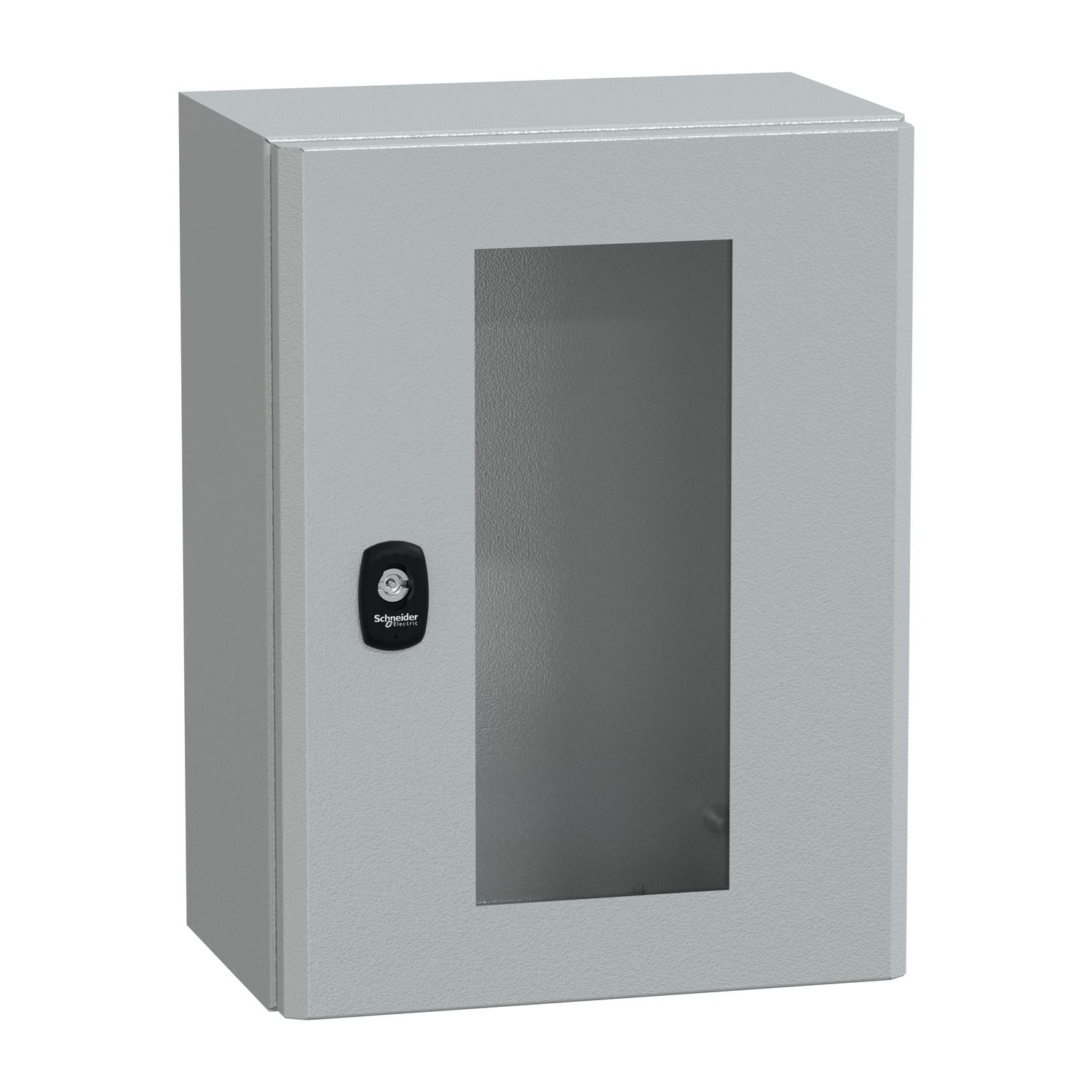

Spacial S3D wall mounted steel enclosure with glazed door. 400 x 300 x 200 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 300 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 200 mm |
| Range | Spacial |
| Installation accessory type | wall-mounting |
| Mounting plate description | without mounting plate |
| Door type | glazed |
| Enclosure nominal height | 400 mm |
| Device composition | 1 cable gland plate, 1 lock, 1 door, 1 body |
| Product name | Spacial S3D |
| Product or component type | compact enclosure |
| Type of gland plate | standard |
| Complementary | |
| Colour | grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Standards | IEC 62208 |
| Removable parts | cable gland plate by screws, door by hinges |
| Accessibility for operation | front |
| Material | door: steel and security glass, body: steel |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 5.804 kg |
| Lock type | 3 mm double-bar lock |
| Variant particularity | single piece body, gutter-shaped front rail double sheet thickness |
| Product certifications | DNV, GL, UL, cUL, LR, BV |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X/13 |
| Electromagnetic compatibility | electromagnetic field immunity test |
| IK degree of protection | IK08 conforming to IEC 62262 |
