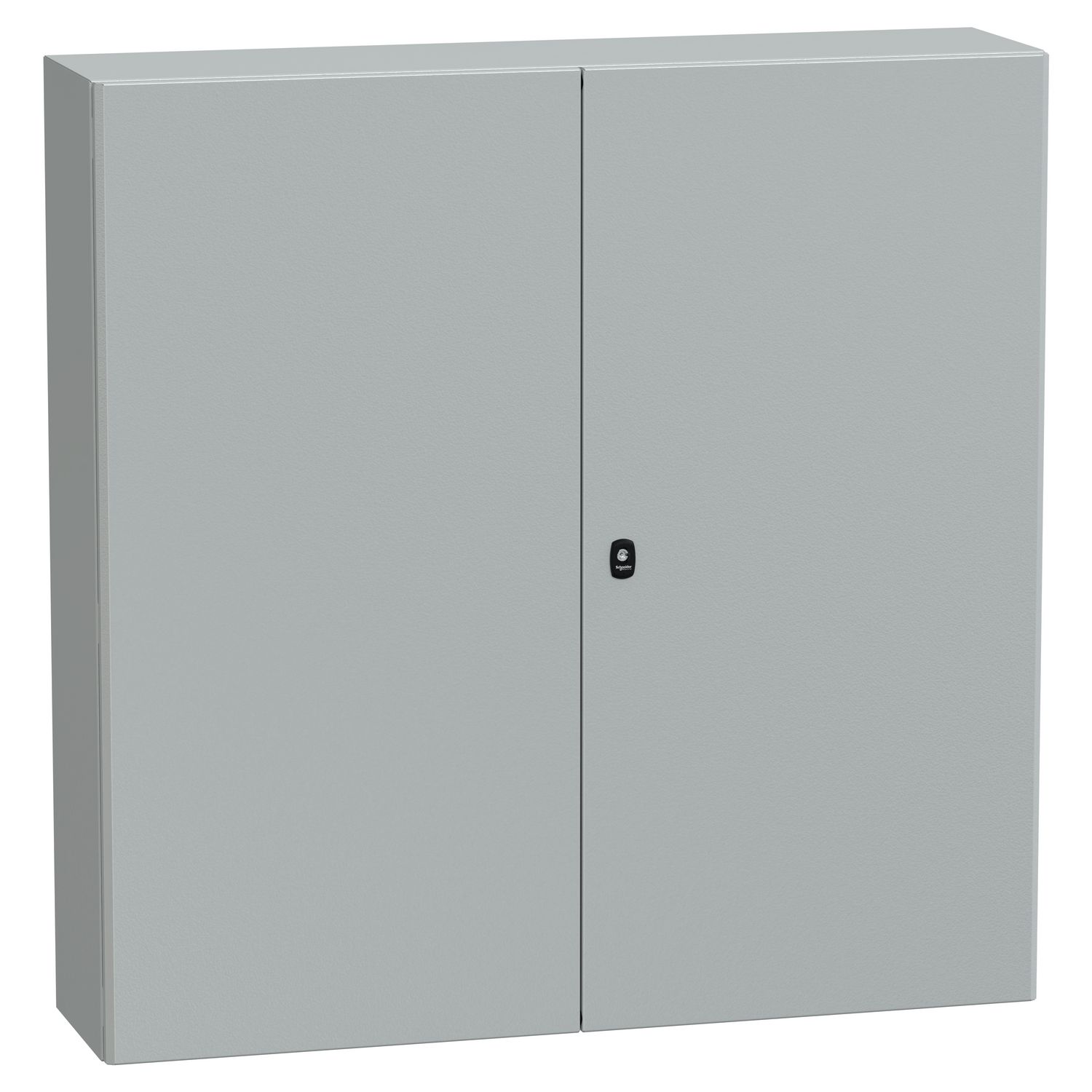

Spacial S3D wall mounted steel enclosure with 2 plain doors. 1200 x 1200 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 55, IK10, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | without mounting plate |
| Enclosure nominal width | 1200 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 300 mm |
| Door type | plain |
| Range | Spacial |
| Enclosure nominal height | 1200 mm |
| Device composition | 2 door, 1 lock, 2 cable gland plate, 1 body |
| Product name | Spacial S3D |
| Product or component type | compact enclosure |
| Installation accessory type | wall-mounting |
| Type of gland plate | standard |
| Complementary | |
| Colour | grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Material | steel |
| Number of doors | front face: 2 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 59 kg |
| Lock type | 3 points lock, 3 mm double-bar |
| Variant particularity | gutter-shaped front rail double sheet thickness, single piece body |
| Standards | IEC 62208 |
| Removable parts | cable gland plate by screws, door by hinges |
| Accessibility for operation | front |
| Product certifications | BV, UL, cUL, GL, LR, DNV |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Electromagnetic compatibility | electromagnetic field immunity test |
| IK degree of protection | IK10 conforming to IEC 62262 |
Only registered users can write reviews
Related products
Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
NSYAEDH120S3D
Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
$9.52 inc GST
$7.71 inc GST
Door switch for PanelSeT WM enclosure. N/C contact (on lock), 3 A/240 V AC.
NSYINLCRN
Door switch for PanelSeT WM enclosure. N/C contact (on lock), 3 A/240 V AC.
$57.53 inc GST
$46.60 inc GST

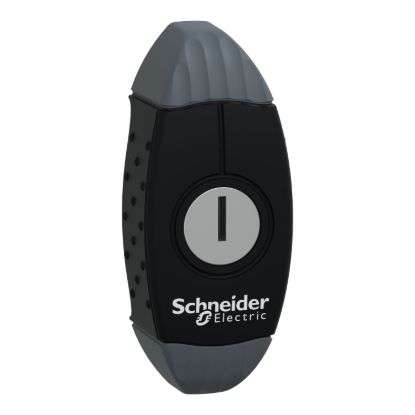

Key handle with key 1242E, Spacial S3D, for Spacial S3D enclosure
