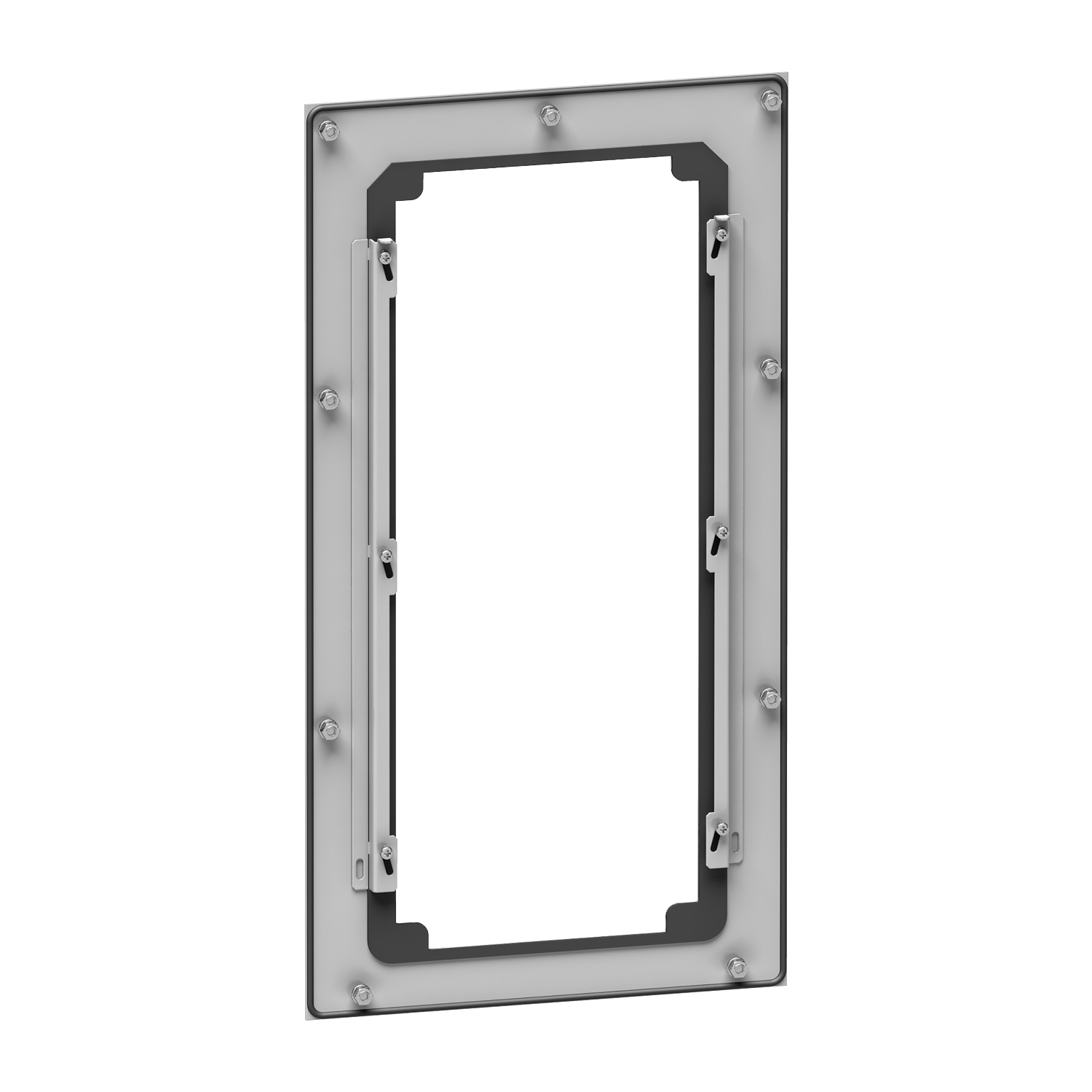

Flush mounting kit for variable speed drives in PanelSeT SFN, and Spacial SM and S3D electrical enclosures. It has nominal height and width of 420 and 265 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | mode 2 : inside enclosure, mode 1 : back of enclosure on mounting plate |
| Kit composition | 1 x edge protector profile, plastic. , 1 x instruction sheet, 1 x drilling template, 1 x fixing accessories, 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts |
| Product specific application | process and utilities |
| Range | Spacial |
| Motor power kW | 11 kW, 7.5 kW 380/480 V, 5.5 kW 220/240 V |
| Product or component type | drive flush mounting kit |
| Accessory / separate part category | mounting and fixing accessory |
| Range compatibility | Spacial S3D enclosure: H:>=500 mm x W:>=300 mm, Spacial SF and SM enclosures: H:>=500 mm x W:>=300 mm, Altivar variable speed drive ATV930, Altivar variable speed drive ATV630 |
| NEMA size | 2 |
| Complementary | |
| Colour | grey (RAL 7035) |
| Height | 375 mm cut-out: , 420 mm external: |
| Width | 215 mm cut-out: , 265 mm external: |
| Permanent permissible load | 7.7 kg |
| Depth | 22 mm wall-enclosure separation: |
| Net weight | 1.922 kg |
| Services | factory installation drive flush mounting kit on enclosure , configuration of enclosurepre-drilled back at requested dimensions |
| Environment | |
| NEMA degree of protection | NEMA 12 conforming to UL 508, NEMA 3R conforming to UL 508, NEMA Type 1 conforming to UL 508 |
| IP degree of protection | IP55 conforming to IEC 60529 |
