Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 540 mm |
| Device short name | PLS |
| Device application | multi-purpose |
| Enclosure nominal depth | 180 mm |
| Enclosure mounting | wall mounted |
| Body type | one piece moulded |
| Range | Thalassa |
| Lock type | slot screw |
| Type of front cover | low plain cover |
| Enclosure nominal height | 360 mm |
| Device composition | locking screws, 1 rear part: on enclosure, 1 cover: on enclosure |

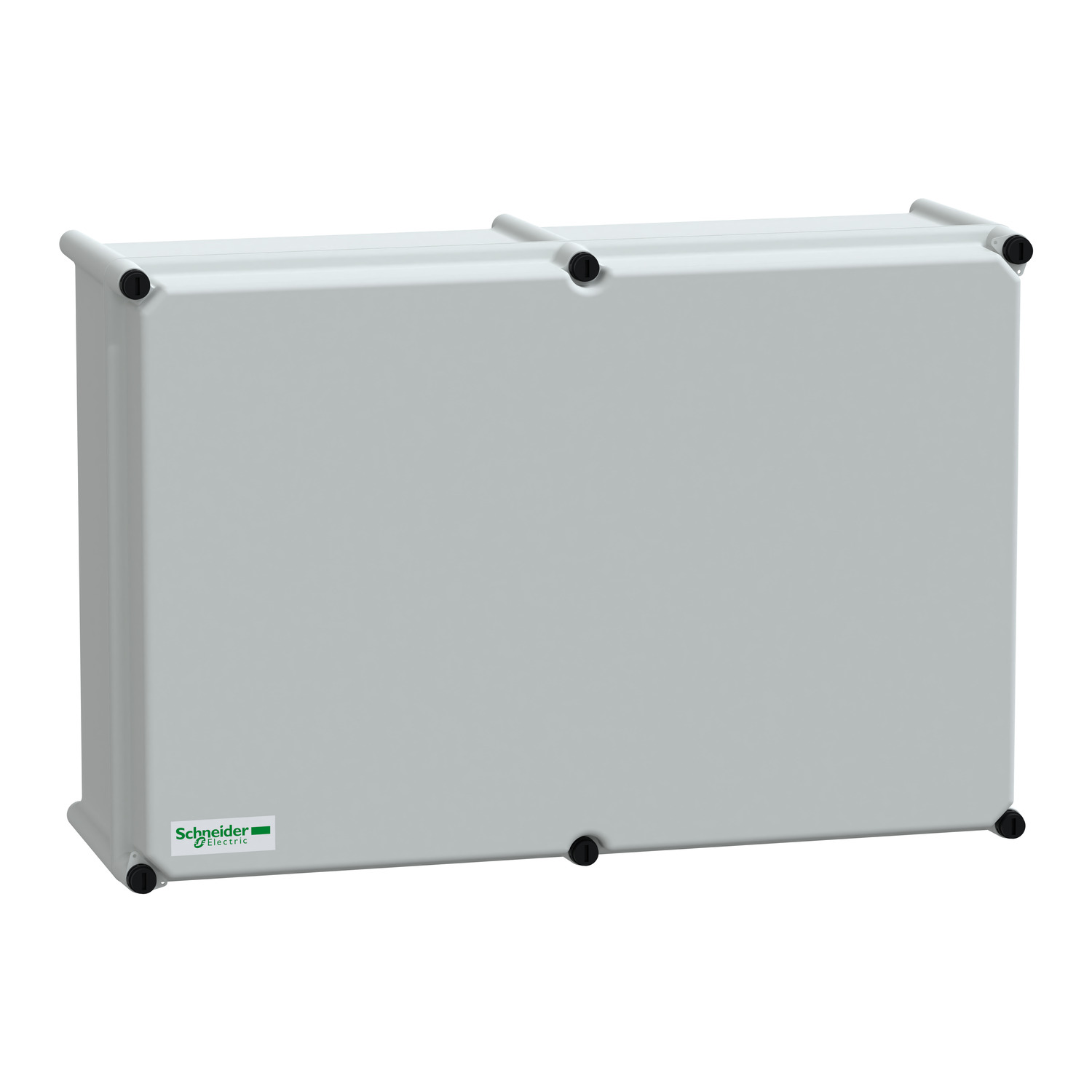

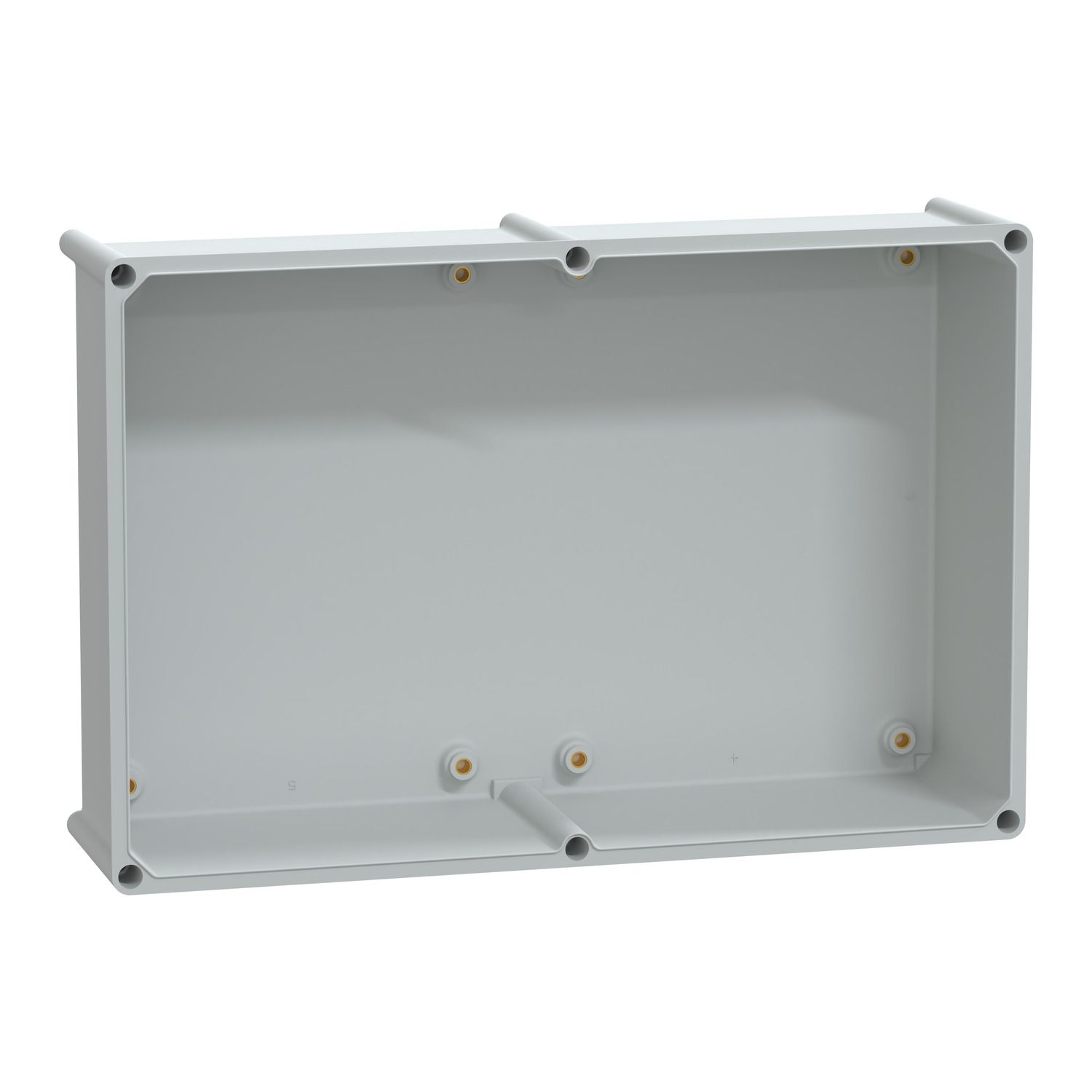

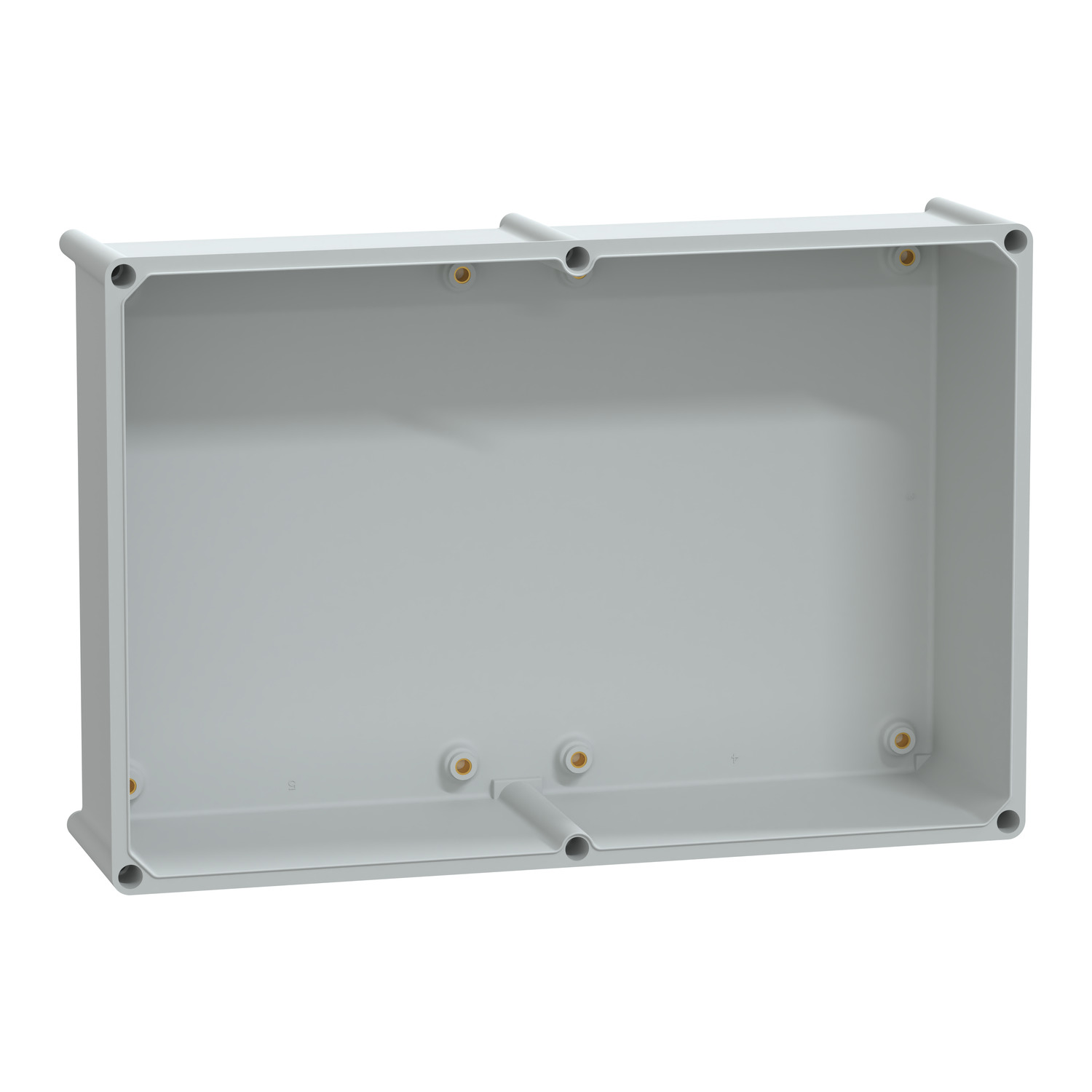

| Product name | Thalassa PLS |
| Product or component type | insulating modular box |
| Complementary | |
| Colour | body: grey (RAL 7035) |
| Material | rear: polyester reinforced with fibreglass, cover: polycarbonate |
| Standards | NEMA 4X, IEC 62208, NEMA classification 13 |
| Removable parts | cover locking screw |
| Product certifications | UL |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 62208 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Ambient air temperature for storage | -30-70 °C |
| Electrical insulation class | class II |
| IK degree of protection | IK09 conforming to IEC 62262 |
