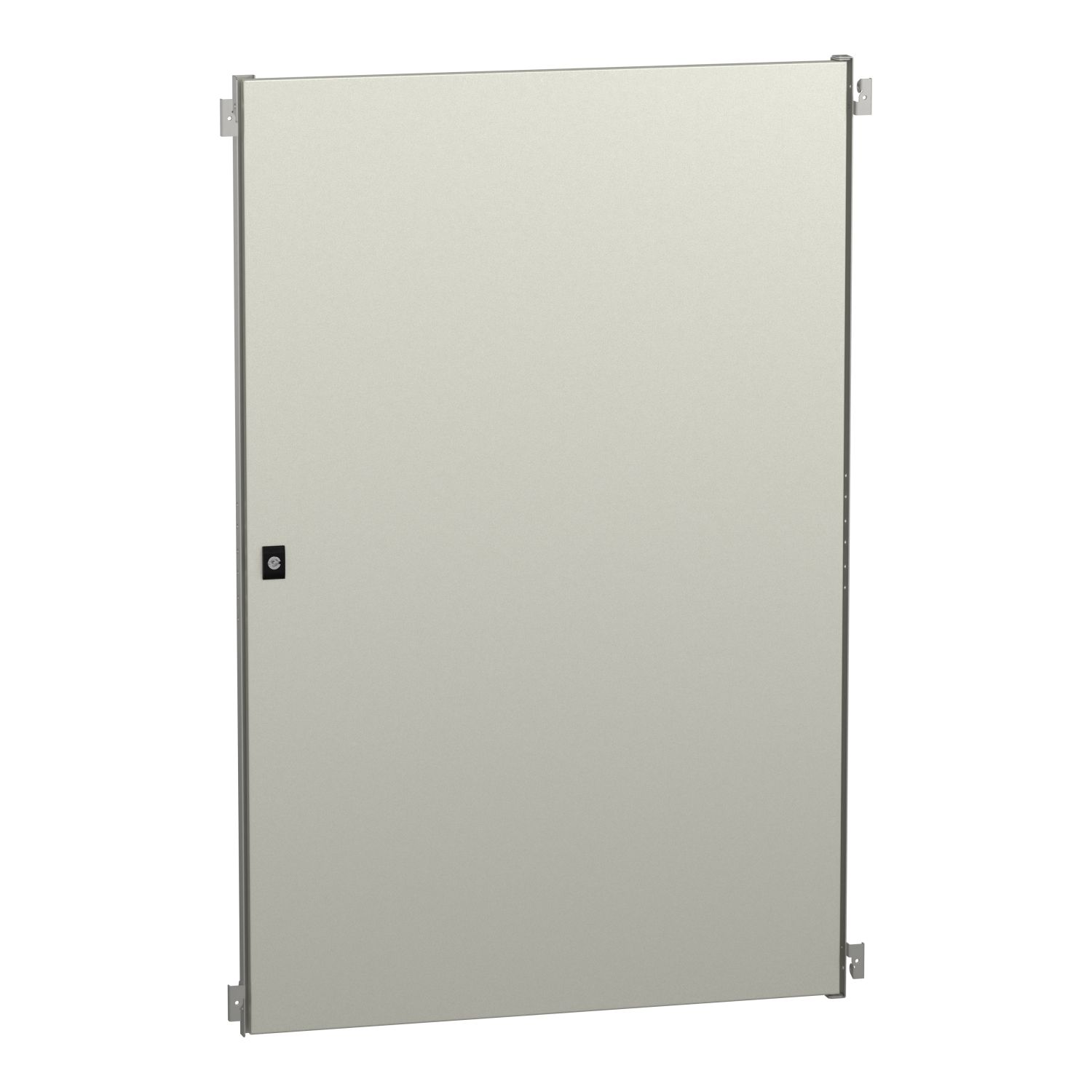

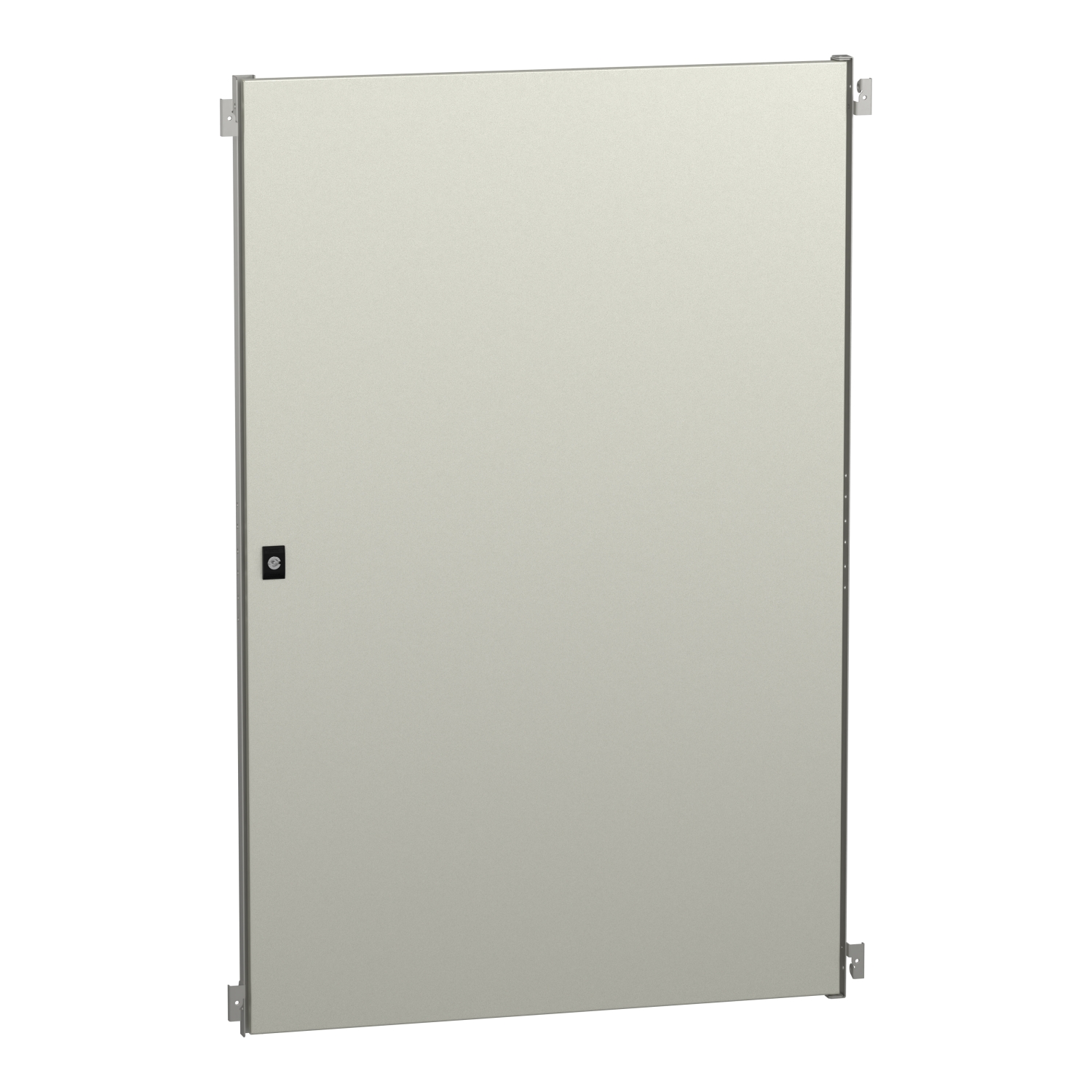

Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is1200 x W is800 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Mounting location | step slide, front side |
| Range | Spacial |
| Device composition | 2 mounting uprights, 4 fixing brackets, 1 door |
| Product or component type | door |
| Accessory / separate part category | enclosure accessory |
| Range compatibility | Spacial Spacial S3X, Spacial Spacial S3D, Spacial Spacial CRN |
| Enclosure nominal dimensions | - |
| Complementary | |
| Door type | internal plain |
| Colour | all faces: grey (RAL 7035) |
| Maximum load | 30 kg/m² |
| Material | door: sheet steel |
| Height | 1200 mm nominal: |
| Width | 800 mm nominal: |
| Door opening side | reversible |
| Net weight | 13.6 kg |
| Lock type | lock 3 mm double bar |
| Surface finish | polyester powder |
| Number of locks | 1 |
| Adjustment | pitch 25 mm (on step slides) |
