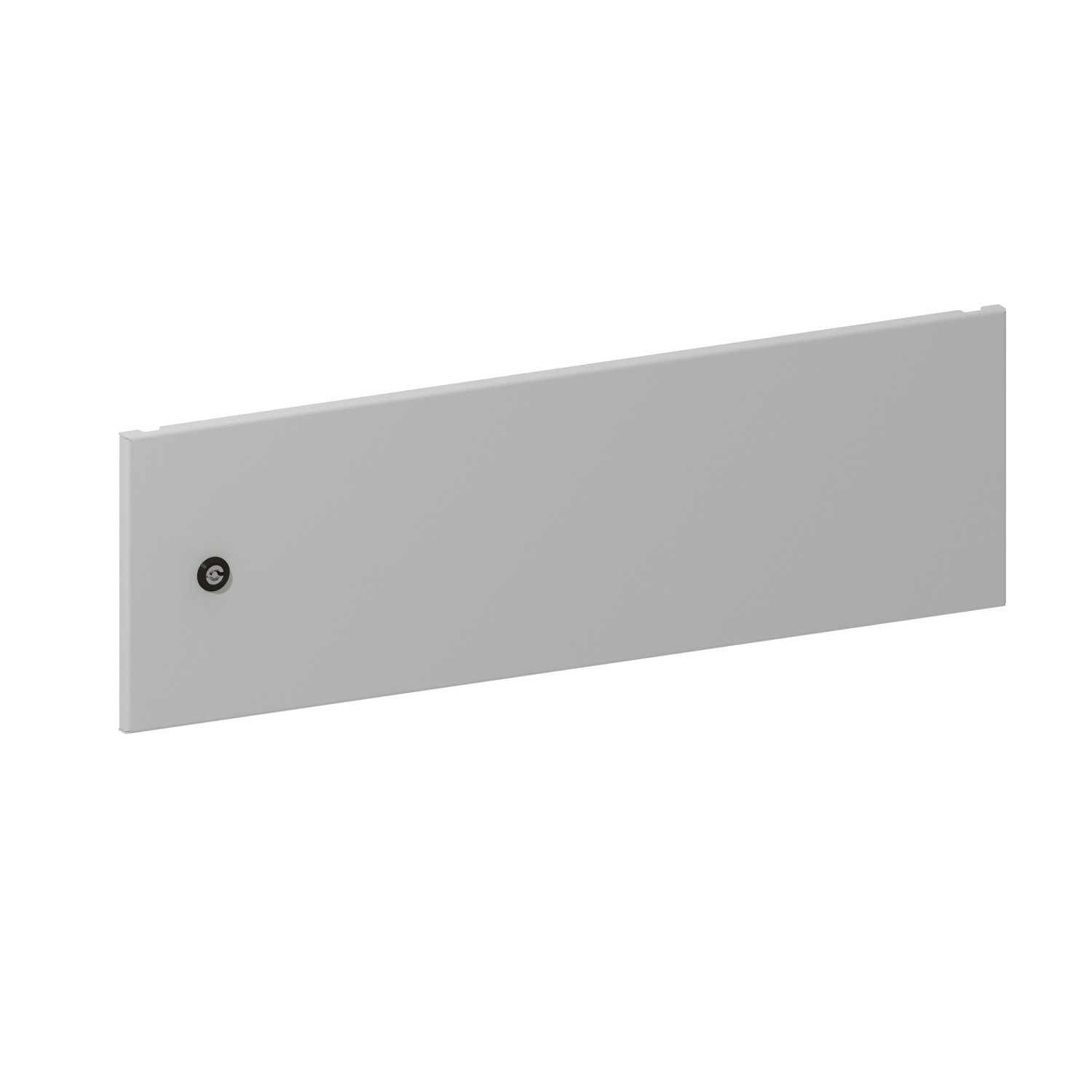

PanelSeT SFM plain partial door - 250x800 mm - 5M

Manufacturer: Schneider Electric

SKU: NSYMPD5M8

GTIN: 3606480850134

PDF

Image of product

Instruction sheet

How to video

Full Description

External plain door for PanelSeT SFM The product is to be mounted on front of the enclosure The nominal width is 800mm The nominal height is 250mm Height M5 according modularity (1M = 50 mm) The door is made of steel (RAL 7035) and has a degree of IP protection IP54 Hinges left or right (120 ° opening angle) The door has 1 locks with 5mm double bar This product is qualified as a green premium, with minimal use of hazardous substances

Availability: Out of stock

Old price: $664.75 inc GST

Price: $538.45 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	partial door
Enclosure nominal dimensions	- W: 800 mm
Number of modules	5
Range	PanelSeT
Range compatibility	PanelSeT SFM
Device composition	1 partial door, 2 hinges, 1 5 mm double bar insert
Mounting location	front
Accessory / separate part category	enclosure accessory
Quantity per set	set of 1
Device application	compartmentalised application
Complementary
Lock type	lock 5 mm double bar
Door opening side	reversible (120 °)
Height	nominal: 250 mm
Surface finish	epoxy-polyester powder
Colour	grey (RAL 7035)
Material	steel
Door type	external plain
Number of locks	1
Width	nominal: 800 mm
Contractual warranty
Warranty	18
