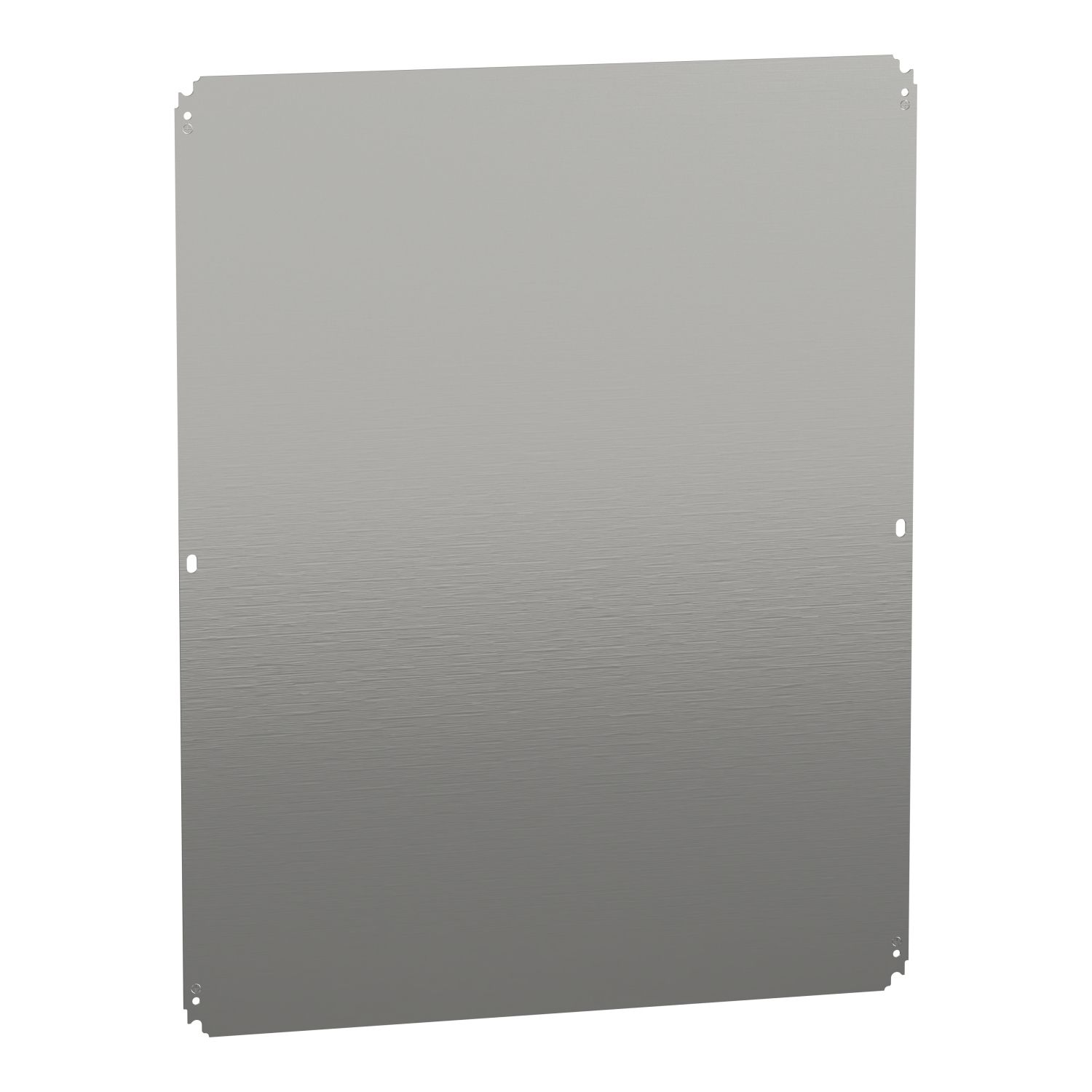

Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | plain |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Material | galvanised steel |
| Mounting location | step slide, direct fixing on backstuds |
| Range | Spacial |
| Product or component type | mounting plate |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D |
| Enclosure nominal dimensions | - H: 1000 mm W: 800 mm , - H: 800 mm W: 1000 mm |
| Complementary | |
| Height | 950 mm |
| Width | 750 mm |
| Permanent permissible load | 150 kg |
| Fixing mode | by fixing element, screwed on backstuds - screw type M8 |
| Net weight | 13.96 kg |
| Thickness | 2.5 mm |
| Variant particularity | installation in enclosures with inverted dimensions |
