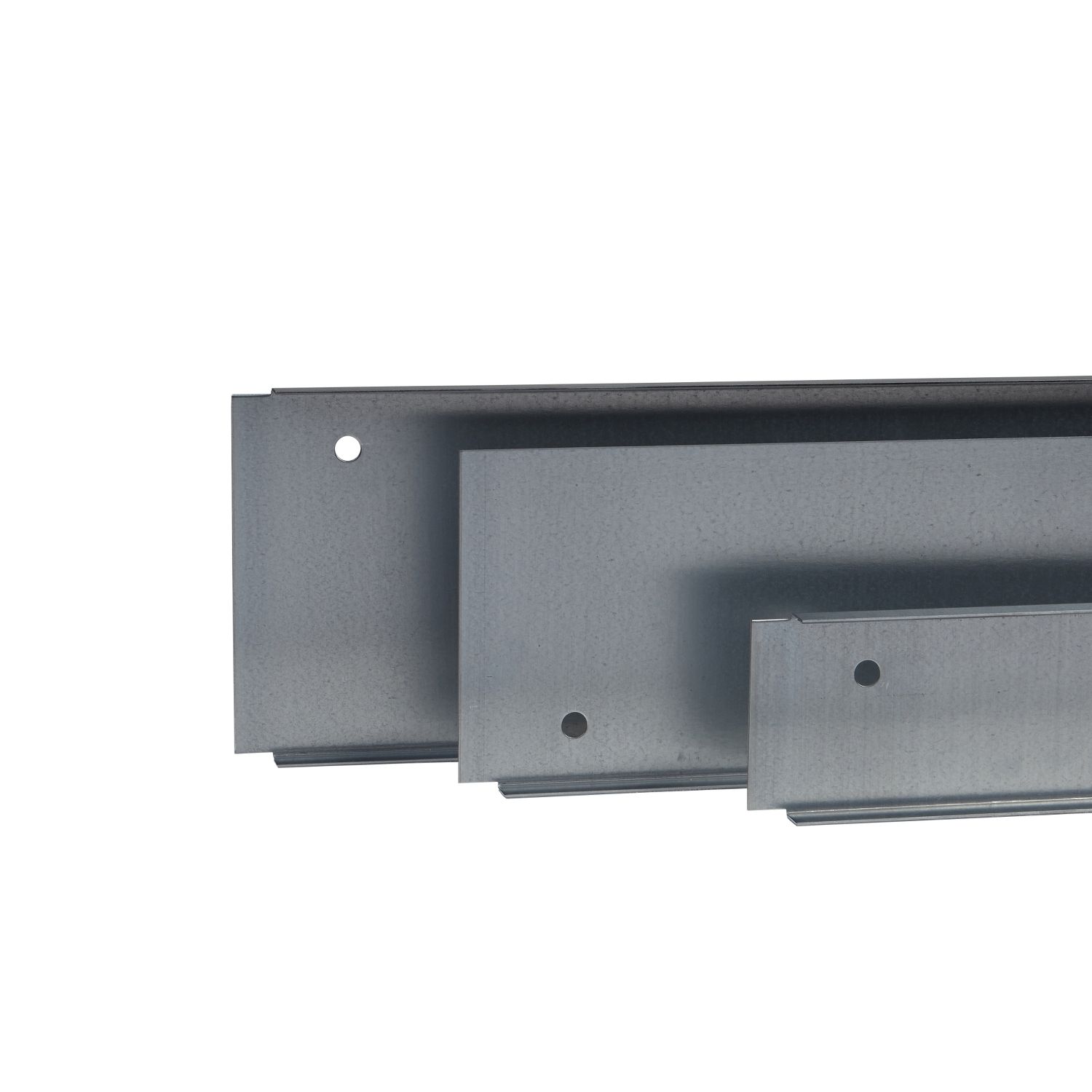

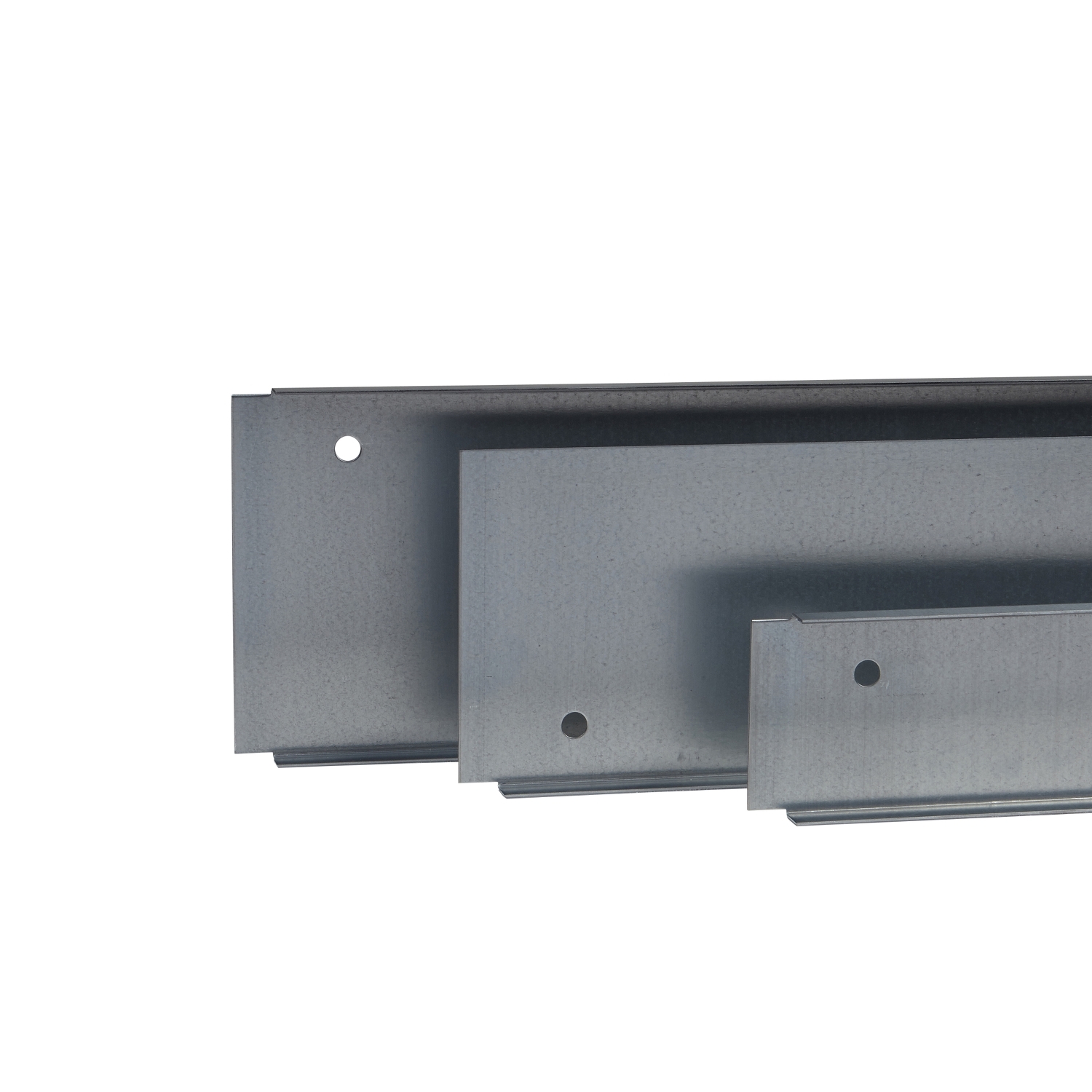

Two entries cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1600 D600mm, fixed by clips

Manufacturer: Schneider Electric

SKU: NSYEC1662

GTIN: 3606485126531

PDF

Image of product

Full Description

This is a multi-purpose 2-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 1600 and 600 mm respectively. The set contains one plate with 2-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.

Availability: Out of stock

Old price: $449.42 inc GST

Price: $364.03 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	cable gland plate
Range	PanelSeT
Cable gland type	standard
Range compatibility	PanelSeT SF
Cable entry	1 entry
Device composition	fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm
Mounting location	enclosure bottom
Material	galvanised steel
Accessory / separate part category	cable management accessory
Quantity per set	set of 1
Device application	multi-purpose
Complementary
Height	30 mm
Thickness	1.5 mm
Depth	nominal : 600 mm
Width	nominal: 1600 mm, useful: 1416 mm
Contractual warranty
Warranty	18
