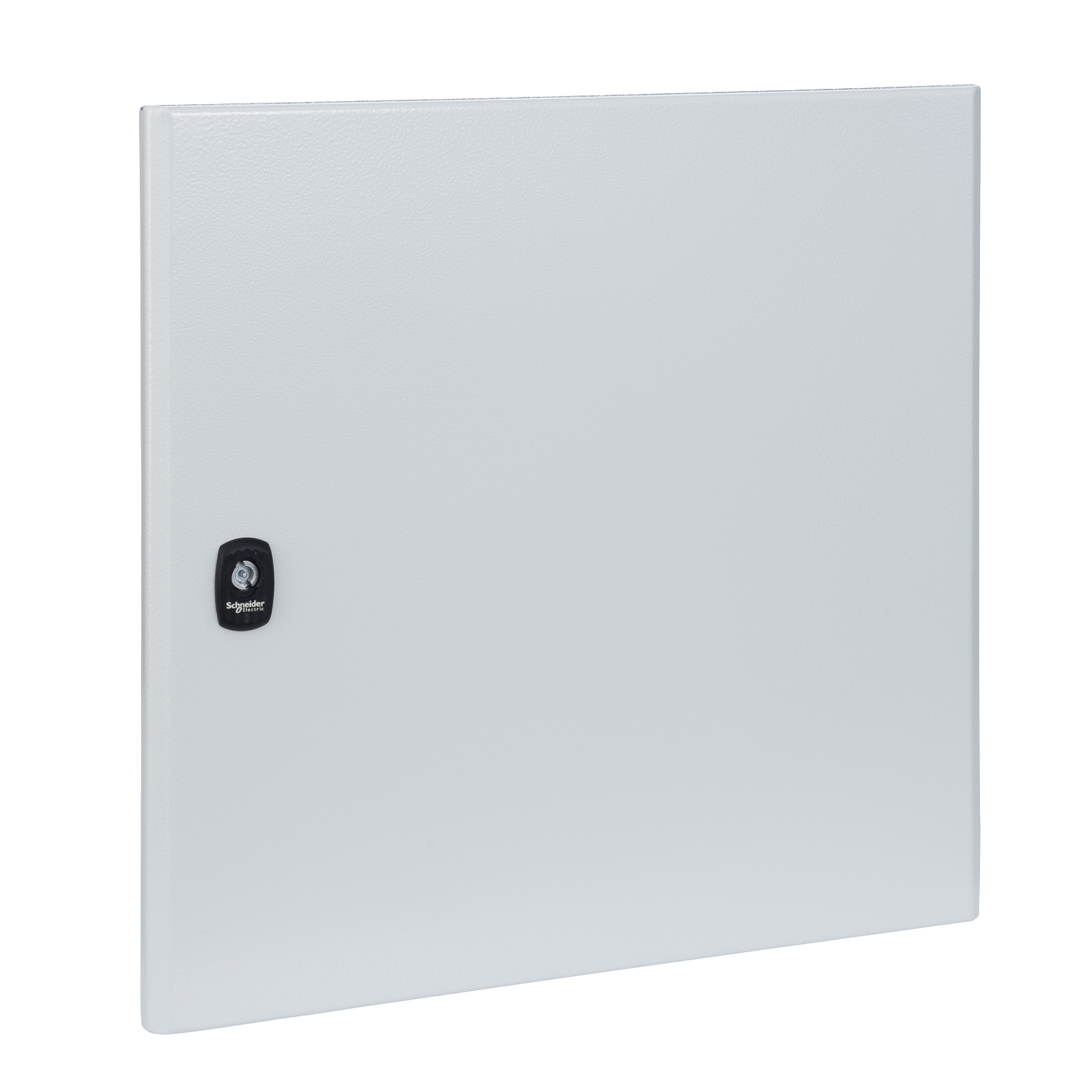

Plain door for Spacial S3D The product is to be mounted on front of the enclosure The nominal width is 800mm The nominal height is 1200mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right (120 ° opening angle) Maximum load is 50 kg/m² The door has 1 locks with 3mm double bar
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Mounting location | front |
| Range | Spacial |
| Device composition | locking system, 1 door |
| Product or component type | door |
| Accessory / separate part category | enclosure accessory |
| Range compatibility | Spacial Spacial S3D |
| Enclosure nominal dimensions | - |
| Complementary | |
| Door type | plain |
| Colour | grey (RAL 7035) |
| Maximum load | 50 kg/m² |
| Material | door: sheet steel |
| Height | 1200 mm nominal: |
| Width | 800 mm nominal: |
| Door opening side | reversible (120 °) |
| Net weight | 11.88 kg |
| Lock type | lock 3 mm double bar |
| Surface finish | textured epoxy polyester |
| Number of locks | 1 |
