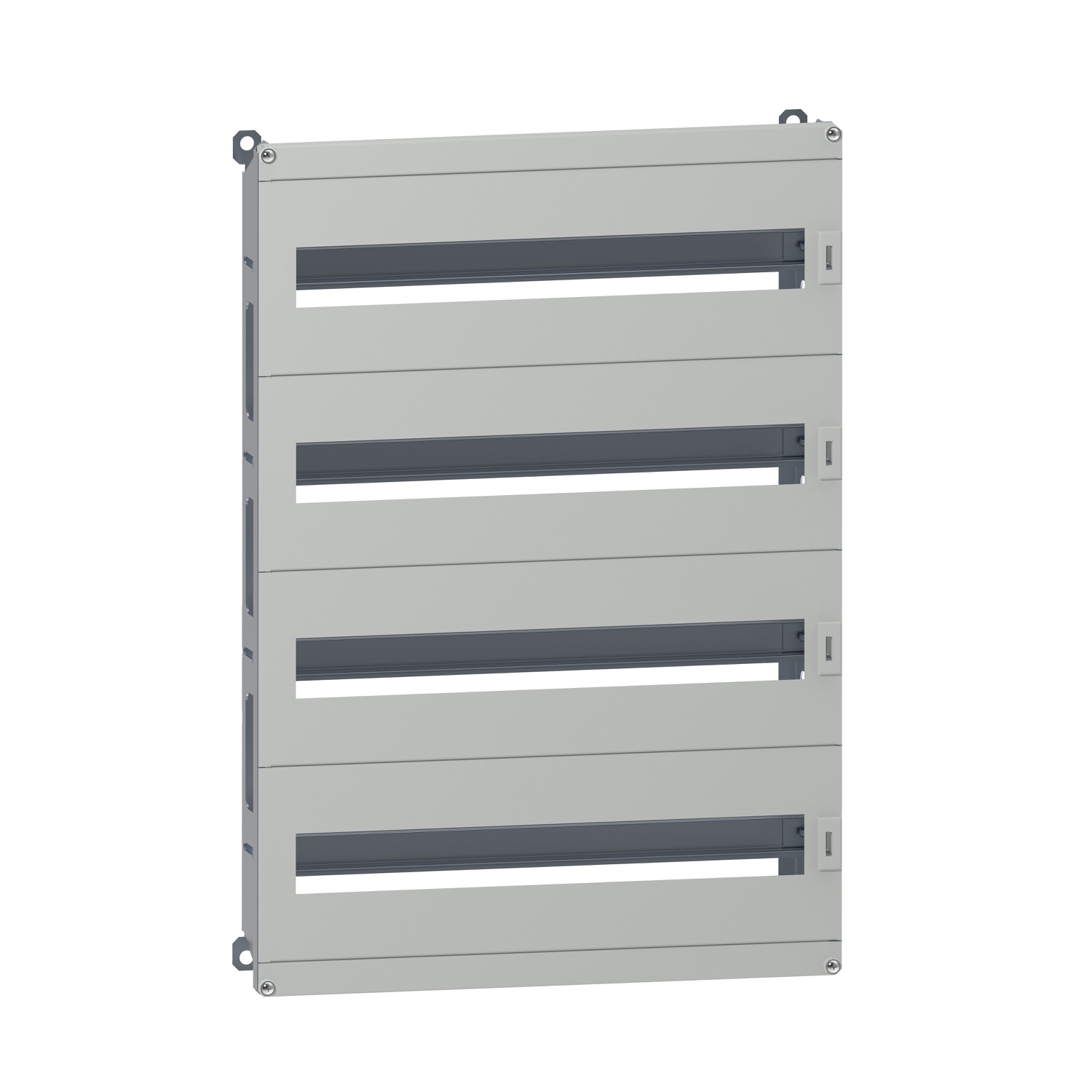

DLM chassis for PanelSeT S3D, PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure and step slide by fixing elements and back with supports location The width is 455mm The height is 653mm The depth is 101,5mm Number of 18mm modules is 88 (1 module = 2 steps = 18 mm) Number of horizontal rows is 4 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 4 The kit is made up of 1 chassis structure, 4 front panels with 35mm DIN rails, 2 finish covers and 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² Anti-corrosion protection is ensured by an polyester powder coating This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DLM |
| Device application | modular distribution application, multi-purpose |
| Quantity per set | set of 1 |
| Mounting location | step slide, front of enclosure |
| Range | Spacial |
| Device composition | 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 4 front panels with 35 mm DIN rail, 1 chassis structure |
| Product or component type | chassis |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D |
| Enclosure nominal dimensions | - |
| Complementary | |
| Adjustment | in height from 40 to 85 mm for DIN rail |
| Colour | front panel: grey (RAL 7035) |
| Type of front plate | plain and cut-out plates |
| Material | steel |
| Height | 653 mm |
| Width | 455 mm |
| Number of cut-out | 4 cut-outs |
| Depth | 101.5 mm |
| Fixing mode | by fixing element - on front and back with supports location |
| Surface finish | polyester powder |
| Total number of 18 mm modules | 88 |
| Number of horizontal rows | 4 |
