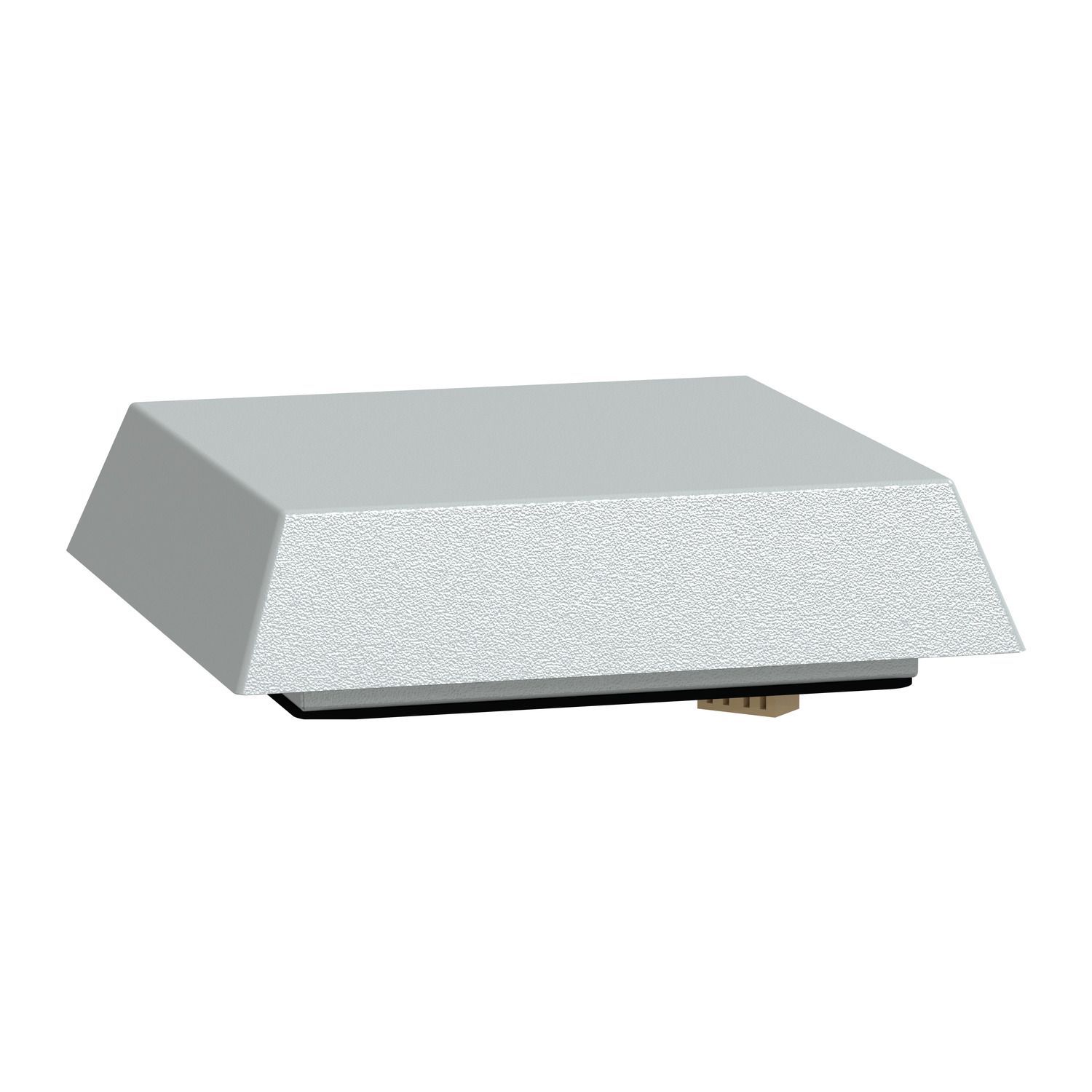

ClimaSys CV forced ventilator. Top hood with fan. 230 V 50Hz or 60 Hz. 85W 50 Hz, 85W 60 Hz. Free flow rate with standard filter of 573 m3/h at 50 Hz and 350 m3/h at 60 Hz. 96 x 340 x 340 mm. Cut-out dimensions of 228 x 228 mm. Made in Hood steel Grey RAL 7035. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 230 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | top hood with fan |
| Type of ventilation filter | G2 |
| Range compatibility | Acti 9 enclosure, Prisma Prisma iPM M, Prisma Prisma PH, Prisma Prisma P |
| Air flow | free flow rate: 575 m3/h at 50 Hz, with outlet grille cut-out 291 x 291 mm: 350 m3/h |
| Complementary | |
| Noise level | 64-64 dB |
| Colour | hood: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | hood: steel |
| Height | 96 mm external: |
| Width | 340 mm external: |
| Cut-out dimensions | 228 x 228 mm |
| Depth | 340 mm external: |
| Device composition | 1 fixing elements, 1 fan, 1 hood: top of enclosure |
| Power range | 85 W |
