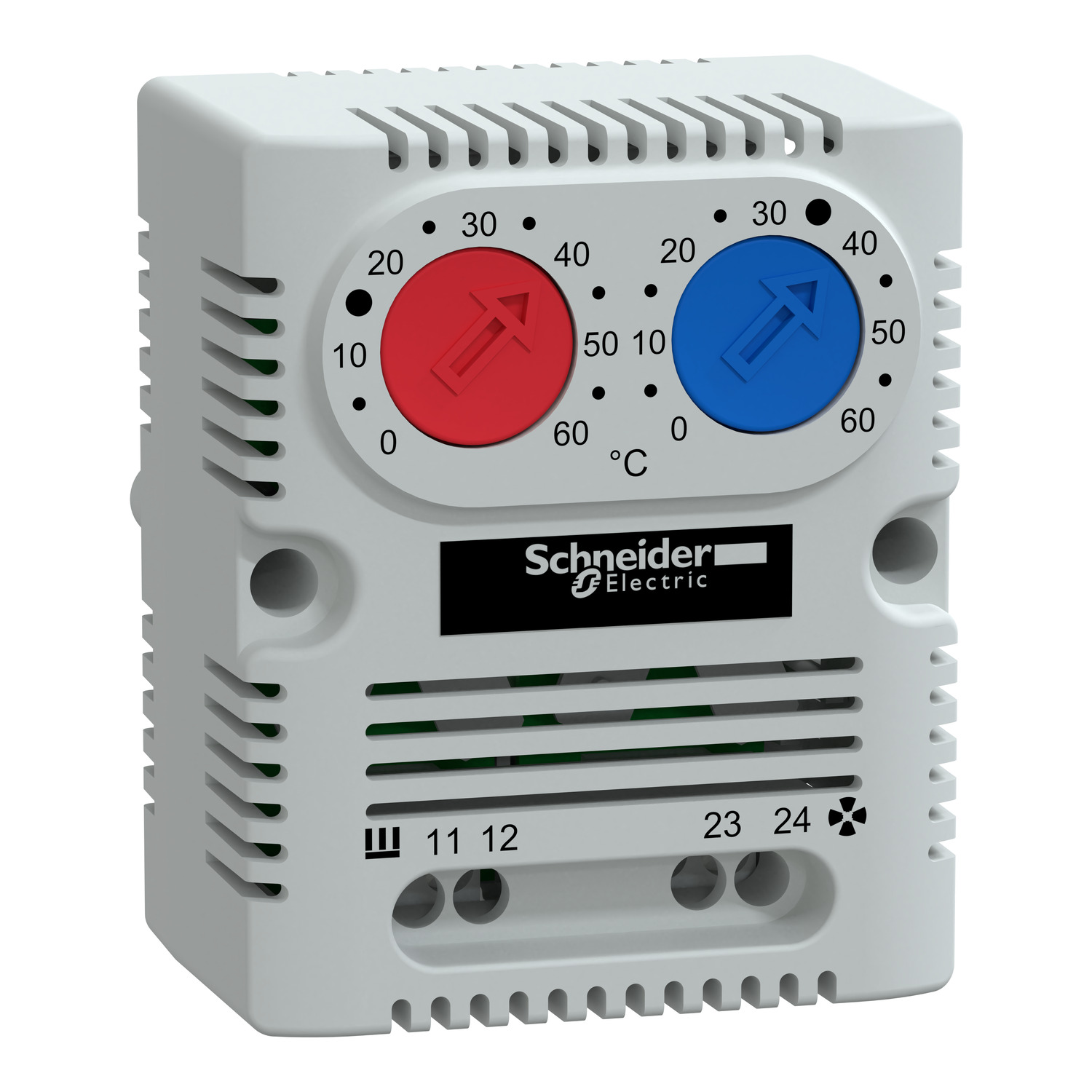

ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Temperature setting range | 0-60 °C |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | double thermostat |
| Information displayed | temperature in °C |
| Complementary | |
| Contact resistance | 10 mOhm |
| IP degree of protection | IP20 |
| Compatibility code | THERMOSTAT |
| Sensor type | bimetal |
| Height | 68 mm external: |
| Width | 56 mm external: |
| Colour | light grey |
| Mounting mode | clipped |
| Flame retardance | self-extinguishing conforming to UL94 (material V0) |
| Contacts type and composition | 1 NO/NC |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Input voltage | 250 V |
| Mounting location | cross rails, 35 mm DIN rail, on mounting plate, Spacial upright |
| Depth | 44 mm external: |
| Net weight | 40 g |
| Material | PC |
| Service life in cycles | 100000 cycles |
| Number of outputs | 1 ventilation function, 1 heating function |
| Ambient air temperature for operation | -20-80 °C |
| Hysteresis | 7 K +/- 0.4K |
| Maximum switching capacity | 30 W DC, 15 A 120 V AC resistive, 10 A 250 V AC resistive, 2 A 120...250 V AC inductive pf: 0.6 |
| Product certifications | UL |
