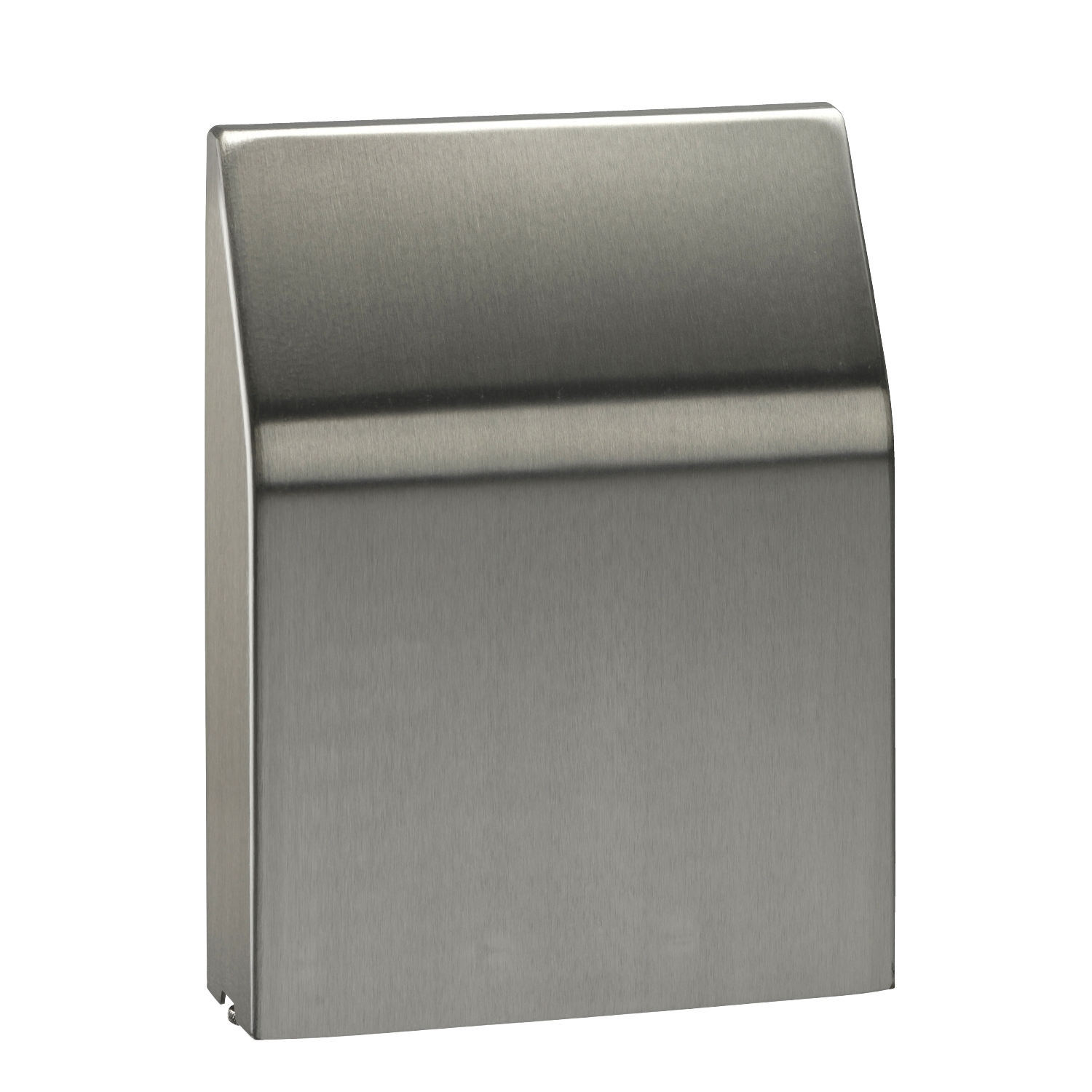

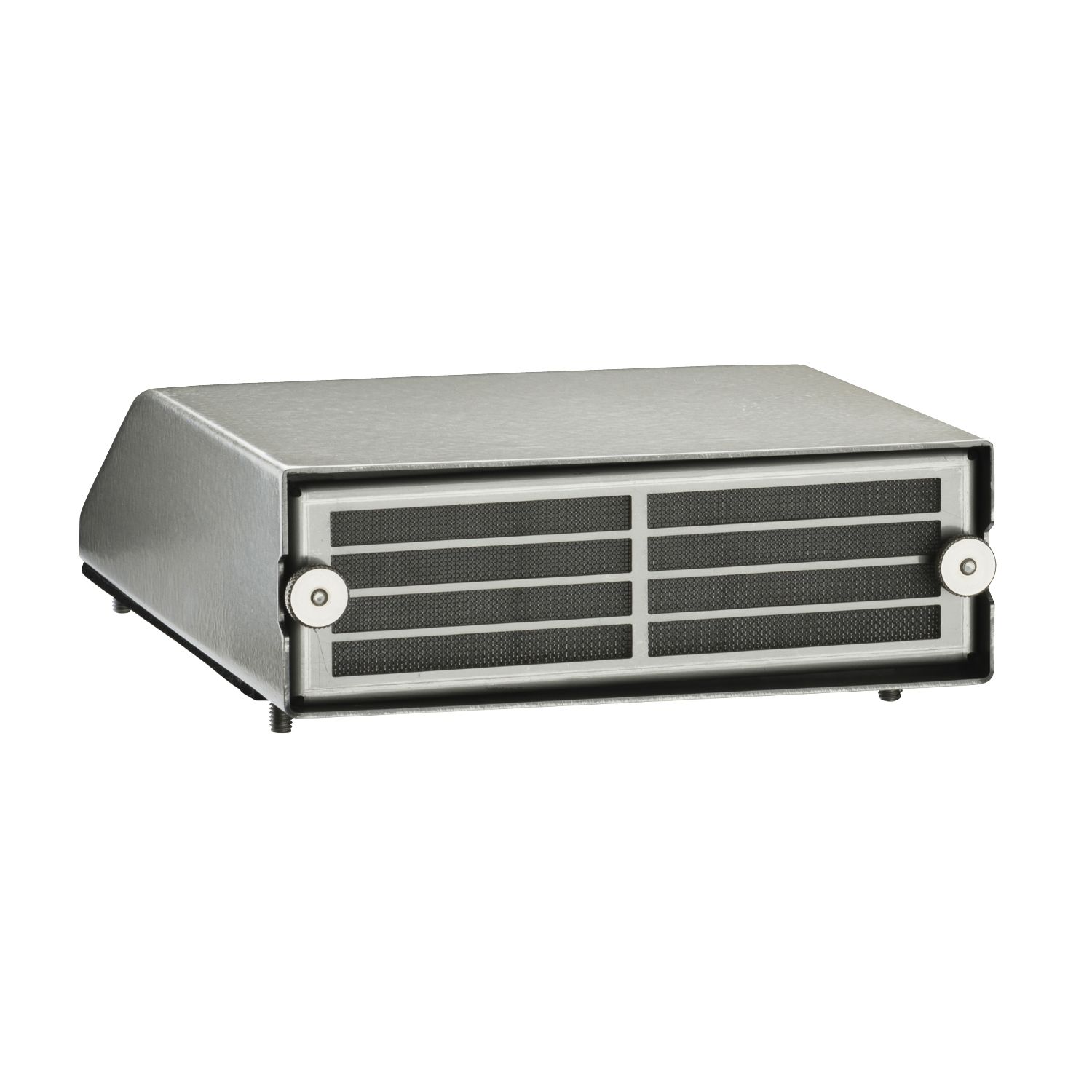

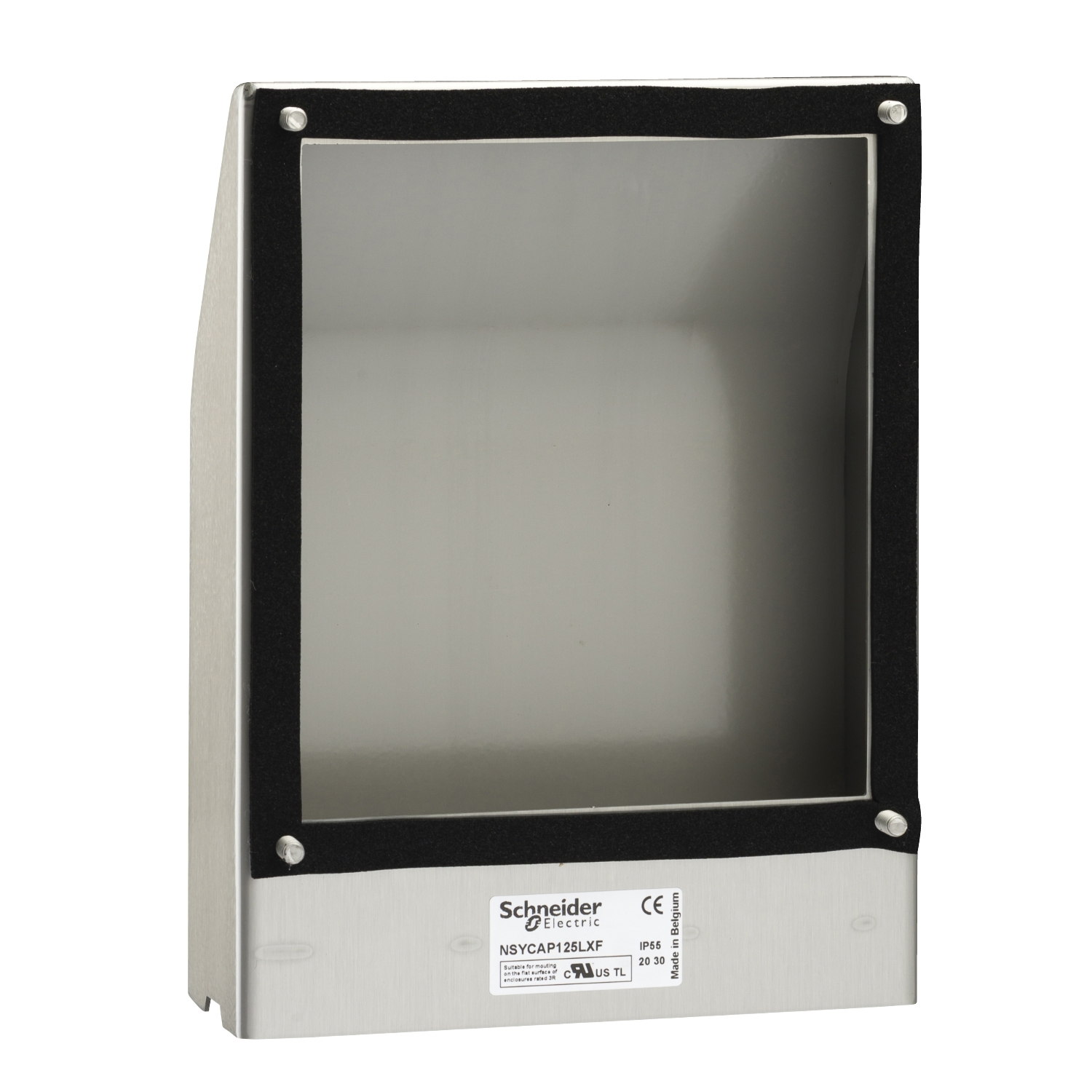

Sealing cover for ClimaSys CV EMC fan The product is made from stainless steel 304 The external width is 305mm The external height is 350mm The external depth is 80mm Cut-out dimensions is 223 x 223mm Fixed by screws on enclosure The kit is made up of 1 cover and 1 filter Ingress protection rating is IP55 This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | sealing cover |
| Accessory / separate part category | thermal management accessory |
| Complementary | |
| Height | 350 mm external: |
| Width | 305 mm external: |
| Cut-out dimensions | 223 x 223 mm |
| Mounting location | on enclosure |
| Depth | 80 mm external: |
| Material | stainless steel 304 |
| Device composition | 1 filter, 1 cover |
| Fixing mode | by screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan |
| Environment | |
| IP degree of protection | IP55 |
