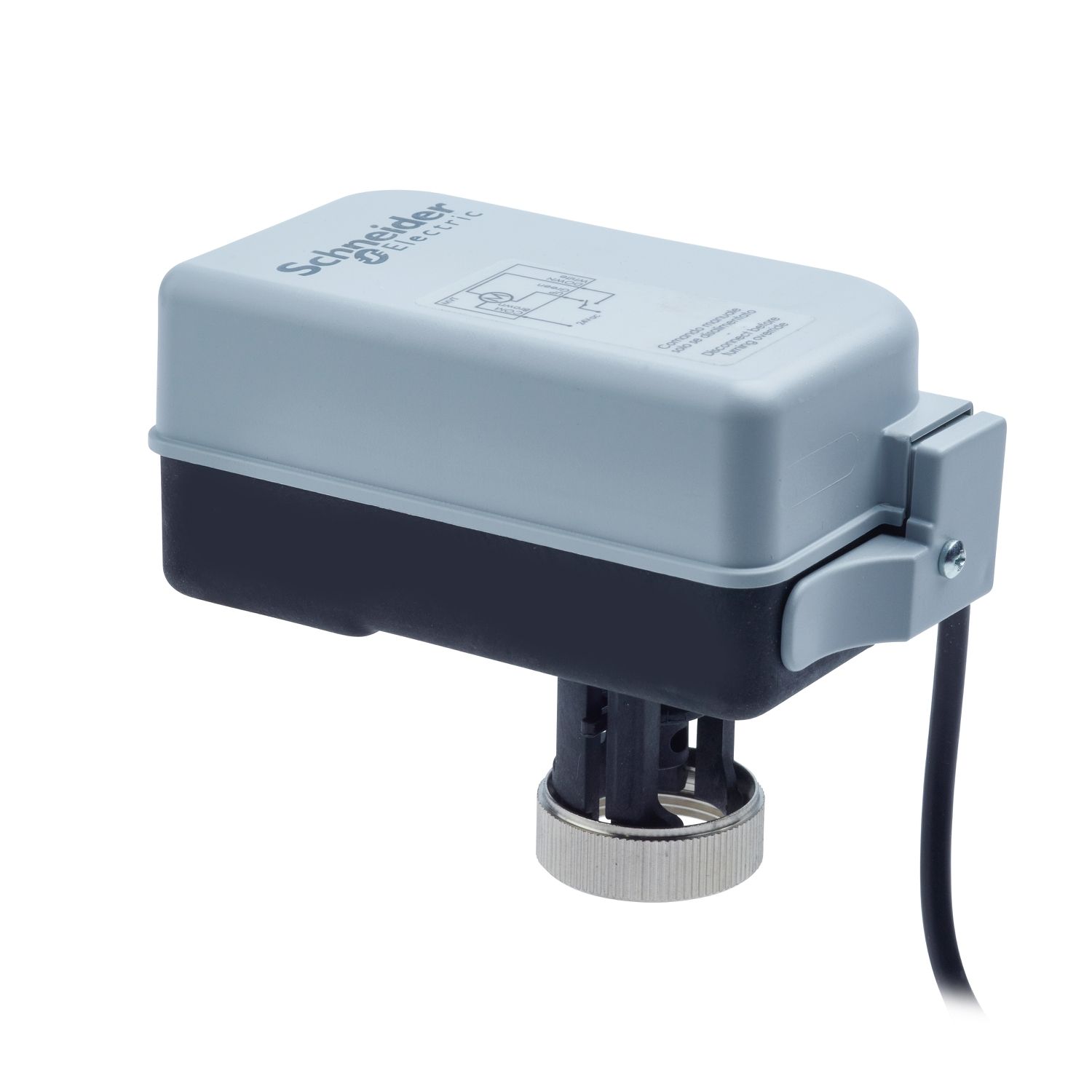

MZ300 is a universal actuator designed to provide a modulating control together with VZX and MZX globe valve. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 24 VAC. Stem force 300N. Protection class IP43 for vertical mounting. Max. stroke 16 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 300 N |
| IP degree of protection | IP43 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -25-65 °C |
| [Us] rated supply voltage | 24 V AC |
| Product destination | zone valves |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Power consumption in VA | 3.6 VA |
| Stroke length | 16-16 mm |
| Power consumption in W | 3 W |
| Force lbf | 68 lbf |
| Actuator | linear |
| Ambient air temperature for operation | -5-55 °C |
| Power loss return | non-spring return |
| Feedback signal | 2...10 V DC |
| Control signal | modulating |
| Lead length | 1.5 m |
| Stroke auto calibration | False |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product series | MZ3 |
