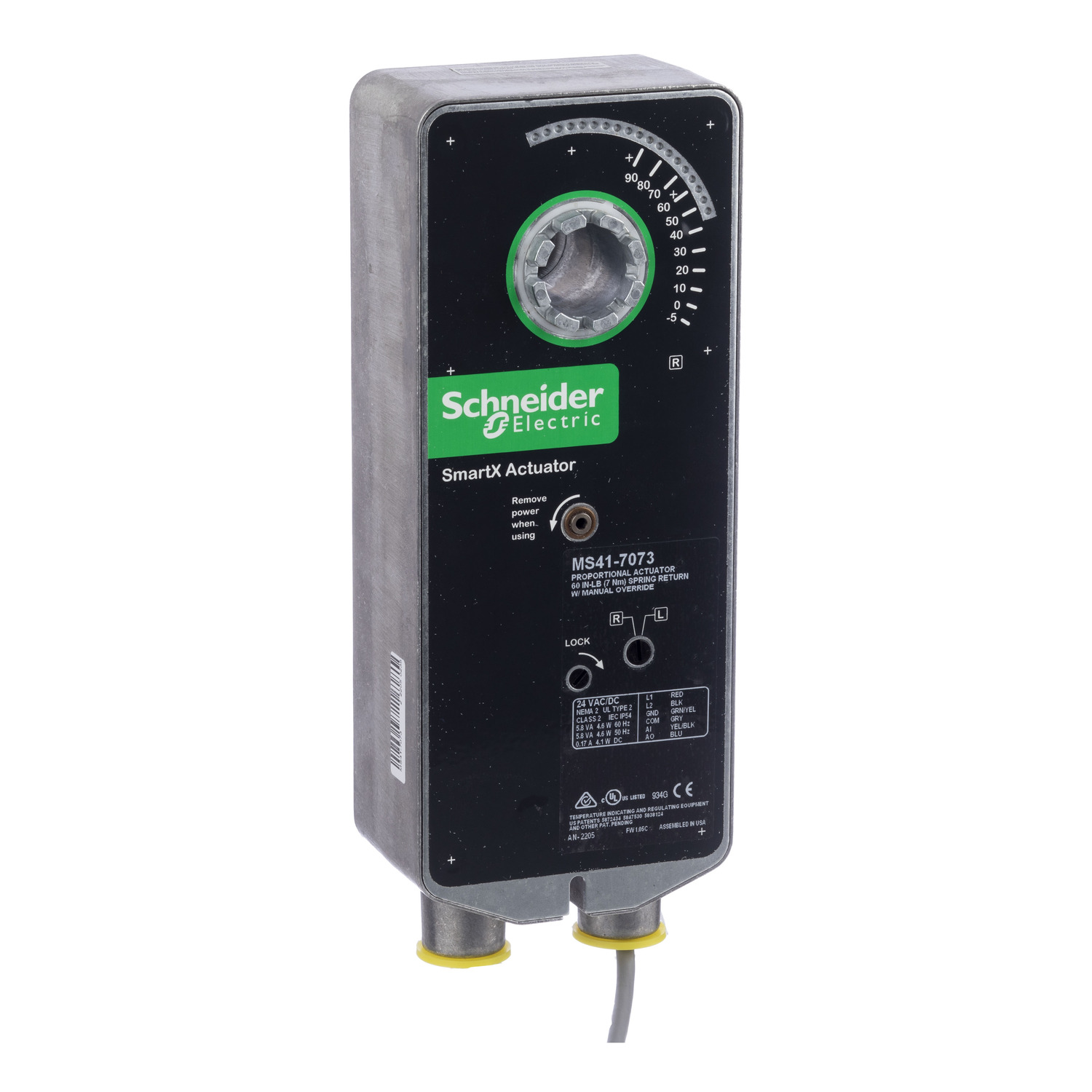

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 60 lb-in, NEMA 1 or 2
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch function | No |
| Hold-in power consumption in W | 2.3-2.3 W |
| Material | die cast aluminium: housing |
| IP degree of protection | IP11, IP10 |
| Relative humidity | 5-95 % non-condensing |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -40-71 °C |
| NEMA degree of protection | NEMA 2, NEMA 1 |
| [Us] rated supply voltage | 22...30 V DC, 24 V AC/DC |
| Electrical insulation class | class II |
| Product destination | globe valve, dampers |
| Control type | automatic reset |
| Current consumption | 170 mA |
| Product or component type | actuator |
| Power consumption in VA | 5.8 VA AC |
| Targeted region | Australia., North America. |
| Power consumption in W | 4.6 W |
| Actuator rotation | 95 ° |
| Analogue input range | 4...20 mA DC, 2...10 V DC |
| Actuator | rotary |
| Ambient air temperature for operation | -30-60 °C |
| Tightening torque | 7 N.m, 60 lb.in |
| Power loss return | spring return |
| Feedback signal | 2...10 V DC |
| Control signal | proportional/modulating |
| Lead length | 3 ft |
| Conduit connection | 1/2" |
| Leads and connections | appliance |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | Mx4x-7xxx |
| Position indicator | -5°: normal or spring-return position, pointer and scale from -5...90° |
| Rotational range adjustment | 30...95° |
