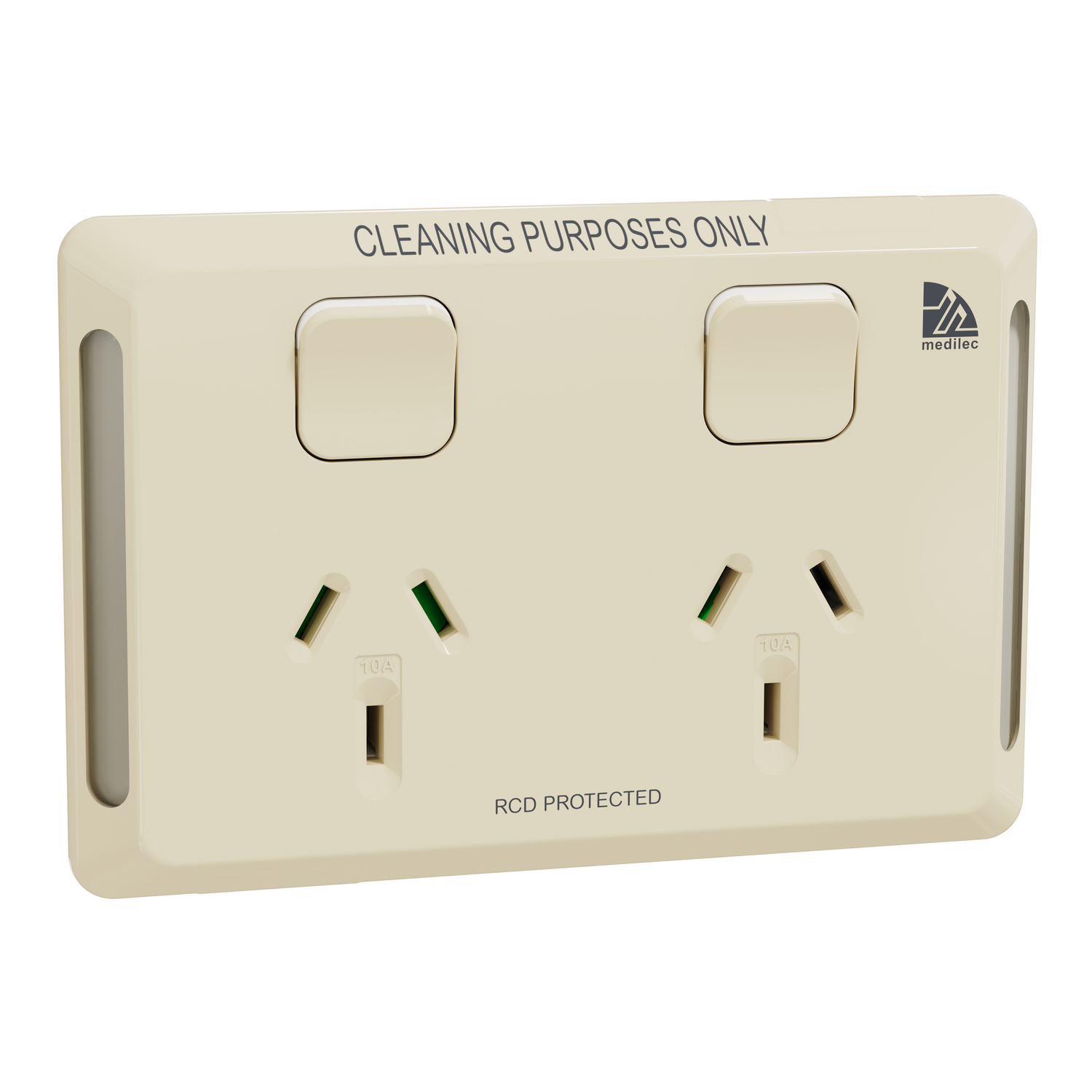

Twin switched socket, Medilec, Clipsal, cleaner, 10A, horizontal, antibacterial, beige
Manufacturer: Clipsal
SKU: MLP3025A-BG
GTIN: 3606487423966
The Medilec Cleaner switched socket by Clipsal is designed for medical buildings. The twin socket is marked with CLEANING PURPOSE ONLY. The user touchpoints are made of antibacterial material. This product comes in Beige for cleaning purposes. The integrated socket outlets are 10A rated. The operating voltage is 230-240V at a frequency of 50Hz. The product is suitable for horizontal wall-mount installation. The installation must be conducted by an appropriately licenced electrician. At installation the wires can be conveniently secured with screw terminals. The dimensions are (W) 78.2mm x (H) 116mm x (D) 43.6mm, and the embedding depth is 34.6mm. The product weighs 100g.
Availability: Out of stock
Old price: $27.39 inc GST
$39.44 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type switched socket
Colour tint beige
Range Medilec
Main colour tint beige
Product brand Clipsal
Socket additional information shuttered
Device presentation complete device
Complementary
Network frequency 50 Hz
Actuator switch
Fixing mode screw
Number of power socket outlets 2 x 1P + E, Australian/New Zealand, 2
Material ABS (acrylonitrile butadiene-styrene)
[In] rated current 10 A
Local signalling indicator LED
Mounting position horizontal
Width 116 mm
Depth 43.6 mm
[Ue] rated operational voltage 230...240 V AC
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Surface finish glossy
Socket-outlet type double socket-outlet
Fixing center 84 mm
Control type rocker
Embedding depth 34.6 mm
Device mounting wall mounted
Number of gangs 2 gangs
Net weight 94 g
Type of installation indoor installation
Number of rocker 2
Pin number 3
Height 78.2 mm
Earth-leakage protection class type I, type A
Surface treatment antibacterial
Thickness 9 mm
Wire stripping length 16 mm
Connections - terminals 4 x 2.5 mm² screw terminal, 3 x 4 mm² screw terminal
Environment
Ambient air temperature for operation 0-45 °C
Relative humidity 10-95 %
Environmental characteristic indoor use
IP degree of protection IP20
Standards AS/NZS 3190, AS/NZS 3100, ISO 22196
Contractual warranty
Warranty 24
