SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 78 lbf, LED status indicator, NEMA 2
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 347 N |
| Hold-in power consumption in VA | 1.2-1.2 VA AC |
| Switch function | No |
| Material | polycarbonate: housing, EPDM: O-rings, reinforced teflon: seal |
| Stroke running time | 102 s |
| IP degree of protection | IP11 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 2 |
| [Us] rated supply voltage | 24 V AC |
| Product destination | globe valve |
| Control type | automatic reset |
| Current consumption | 7.2 A |
| Product or component type | actuator |
| Power consumption in VA | 7.2 VA AC |
| Targeted region | North America. |
| Stroke length | 16.5-16.5 mm |
| Analogue input range | 0...10 V DC |
| Force lbf | 78 lbf |
| Actuator | linear |
| Ambient air temperature for operation | -5-55 °C |
| Power loss return | non-spring return |
| Control signal | proportional/modulating |
| Conduit connection | 1/2" |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MG350V |
| Position indicator | Stroke indicator on bracket |
| Additional features | LED status indicator |
Only registered users can write reviews
Related products
VB: 1 in, 3W Div, Globe, NPT, UO, BR, 14 cv, Venta, No Steam
VB-7323-0-4-08
VB: 1 in, 3W Div, Globe, NPT, UO, BR, 14 cv, Venta, No Steam
$930.60 inc GST
$1,230.72 inc GST
VB: 1/2 in, 3W Div, Globe, NPT, UO, BR, 4.4 cv, Venta, No Steam
VB-7323-0-4-04
VB: 1/2 in, 3W Div, Globe, NPT, UO, BR, 4.4 cv, Venta, No Steam
$567.60 inc GST
$750.65 inc GST
VB: 1/2 in, 3W Mix, Globe, SWT, BR, 4.4 cv, Venta, No Steam
VB-7314-0-4-04
VB: 1/2 in, 3W Mix, Globe, SWT, BR, 4.4 cv, Venta, No Steam
$464.20 inc GST
$613.90 inc GST

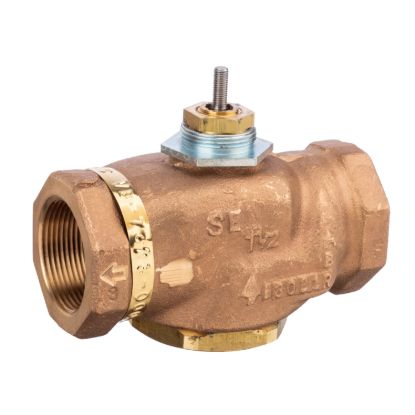

VB: 1-1/2 in, 3W Div, Globe, NPT, UO, BR, 28 cv, Venta, No Steam
VB-7323-0-4-10
VB: 1-1/2 in, 3W Div, Globe, NPT, UO, BR, 28 cv, Venta, No Steam
$1,401.40 inc GST
$1,853.35 inc GST
VB: 1-1/4 in, 3W Div, Globe, NPT, UO, BR, 20 cv, Venta, No Steam
VB-7323-0-4-09
VB: 1-1/4 in, 3W Div, Globe, NPT, UO, BR, 20 cv, Venta, No Steam
$1,227.60 inc GST
$1,623.50 inc GST
VB: 2 in, 3W Div, Globe, NPT, UO, BR, 40 cv, Venta, No Steam
VB-7323-0-4-11
VB: 2 in, 3W Div, Globe, NPT, UO, BR, 40 cv, Venta, No Steam
$1,869.45 inc GST
$2,472.35 inc GST

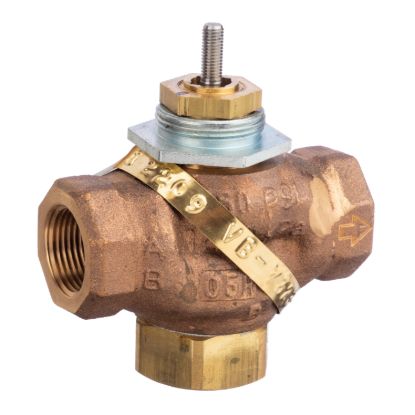

VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam
VB-7323-0-4-06
VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam
$664.40 inc GST
$878.67 inc GST

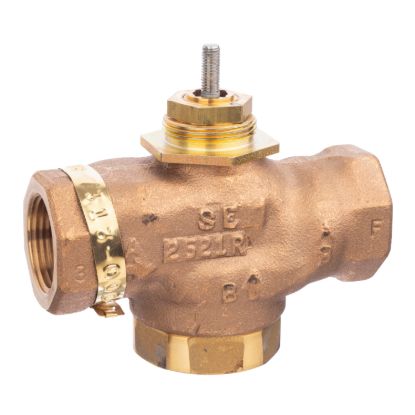

Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv
VB-7313-0-4-08
Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv
$494.45 inc GST
$653.91 inc GST

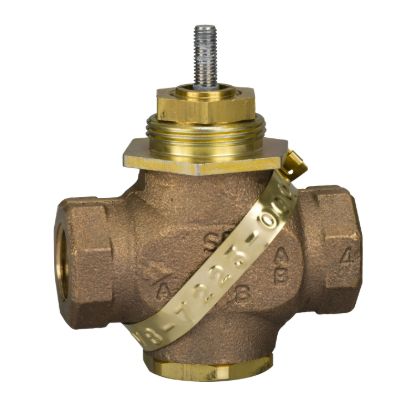

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 0.4 Cv
VB-7263-0-4-01
Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 0.4 Cv
$553.30 inc GST
$731.74 inc GST
Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 4.4 Cv
VB-7263-0-4-04
Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 4.4 Cv
$262.90 inc GST
$347.69 inc GST

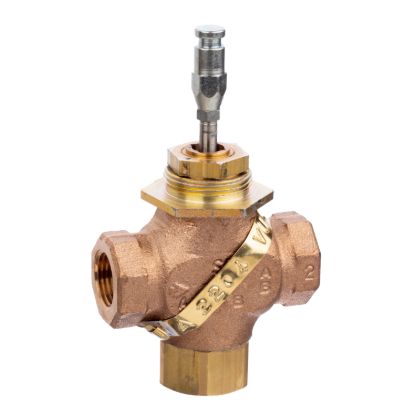

Venta, Globe Valve, 1/2 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 4.4 Cv
