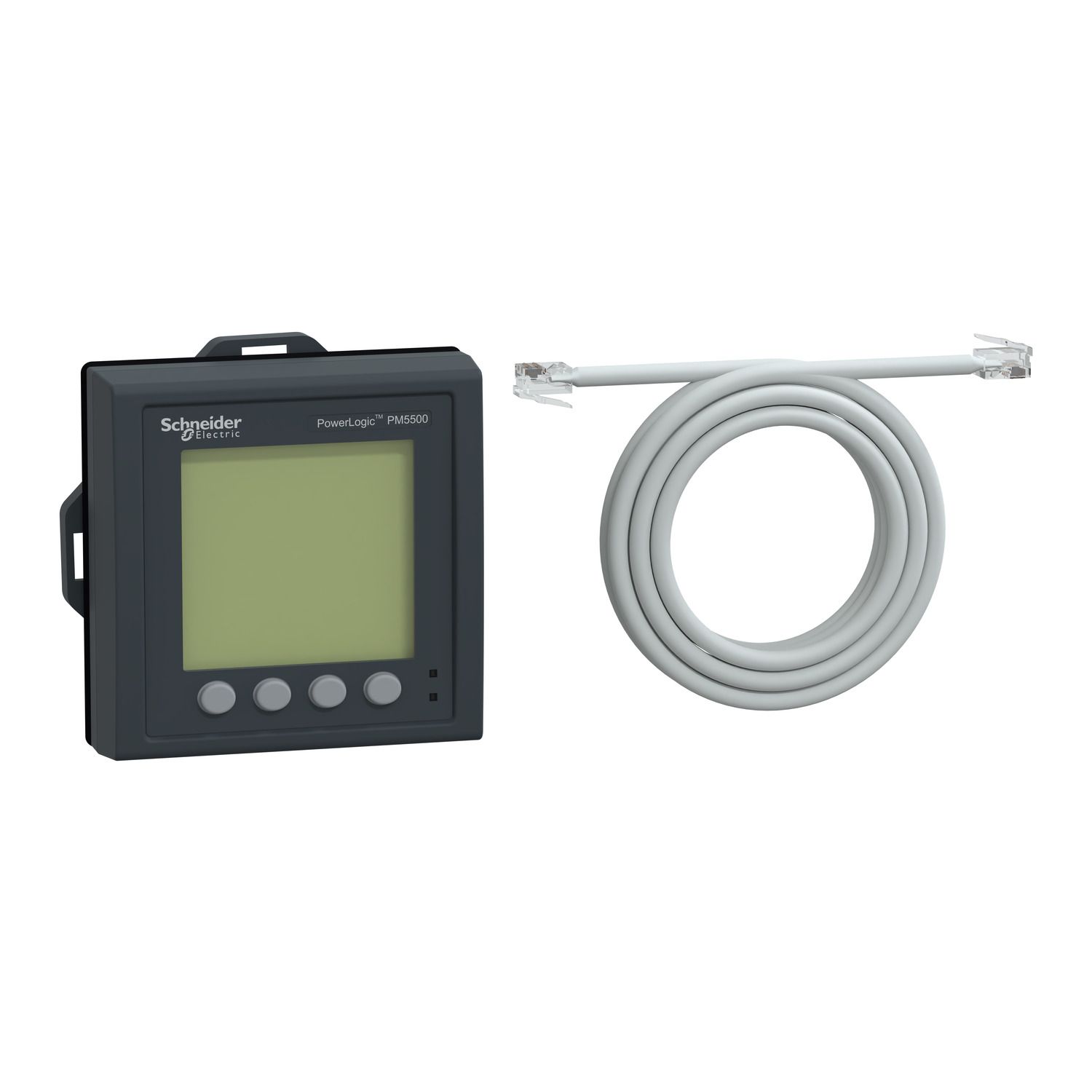

Optional remote display kit for the PowerLogic PM5000 DIN mount variant. 96mm by 96mm monochrome graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage and current. Viewable area: backlight LCD, 128 pixels by 128 pixels. This display is installed flush mounted, an enclosure door for example. Ingress Protection IP52 rating.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | human-machine dialogue application |
| Display type | backlit LCD |
| Range | PowerLogic |
| Product or component type | remote display |
| Range compatibility | PowerLogic PowerLogic PM5000 |
| Complementary | |
| Projecting depth | 27 mm |
| Width | 96 mm |
| Display colour | monochrome |
| Display size | 67 x 62.5 mm |
| Mounting support | framework remote display |
| Local signalling | programming indication: LED (amber), communication: LED (green) |
| Mounting mode | flush-mounted |
| Control type | 4 x push-button |
| Connector type | RJ45 |
| Messages display capacity | graphic objects (bargraph, button, light...), 6 lines |
| Display resolution | 128 x 128 pixels |
| Embedding depth | 21 mm |
| Height | 96 mm |
| Information displayed | current, voltage, frequency, harmonic distortion, energy consumption, power |
| Environment | |
| Operating altitude | 0...3000 m |
| IP degree of protection | IP52 conforming to IEC 60529 |
| Relative humidity | 5-95 % at 37-37 °C |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-70 °C |
