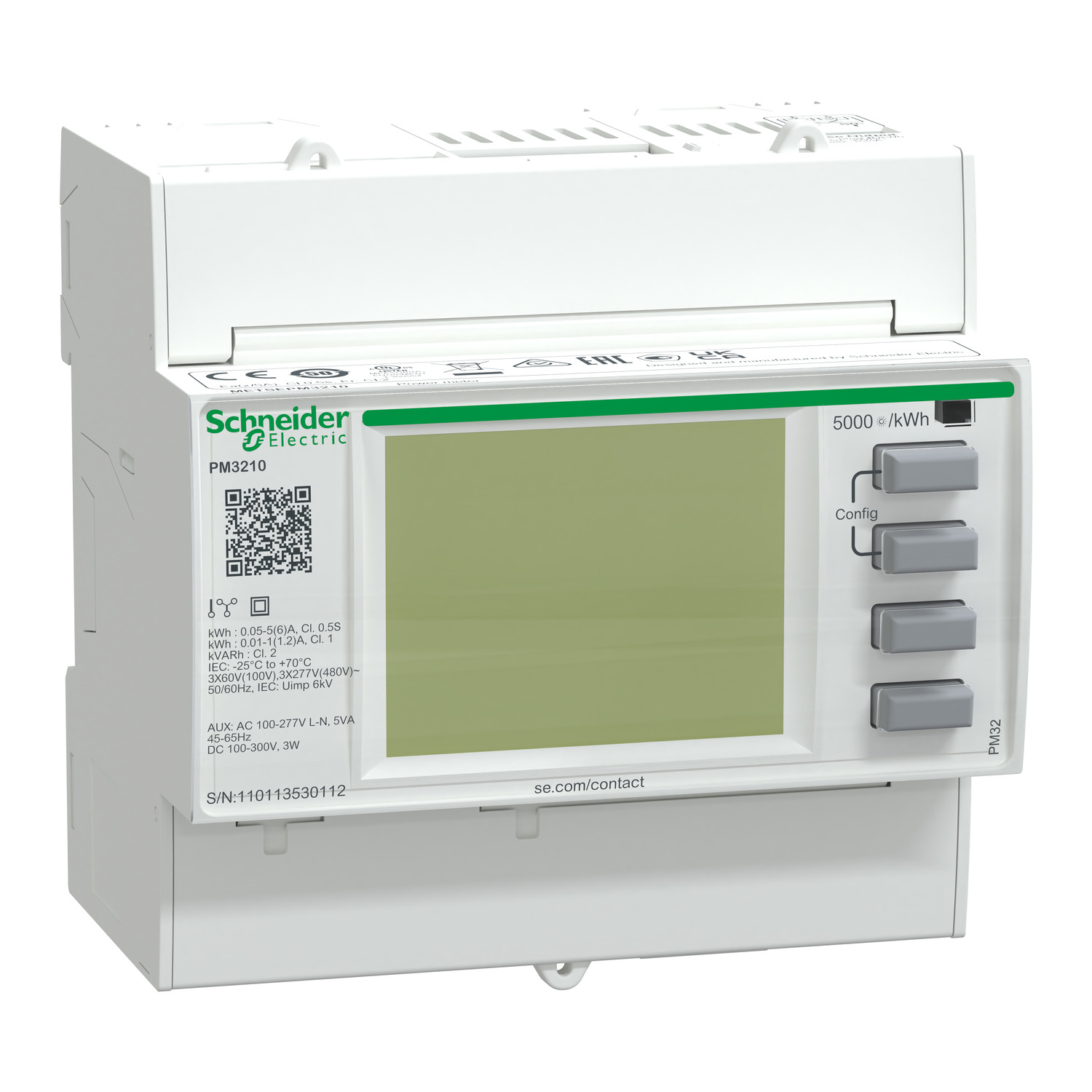

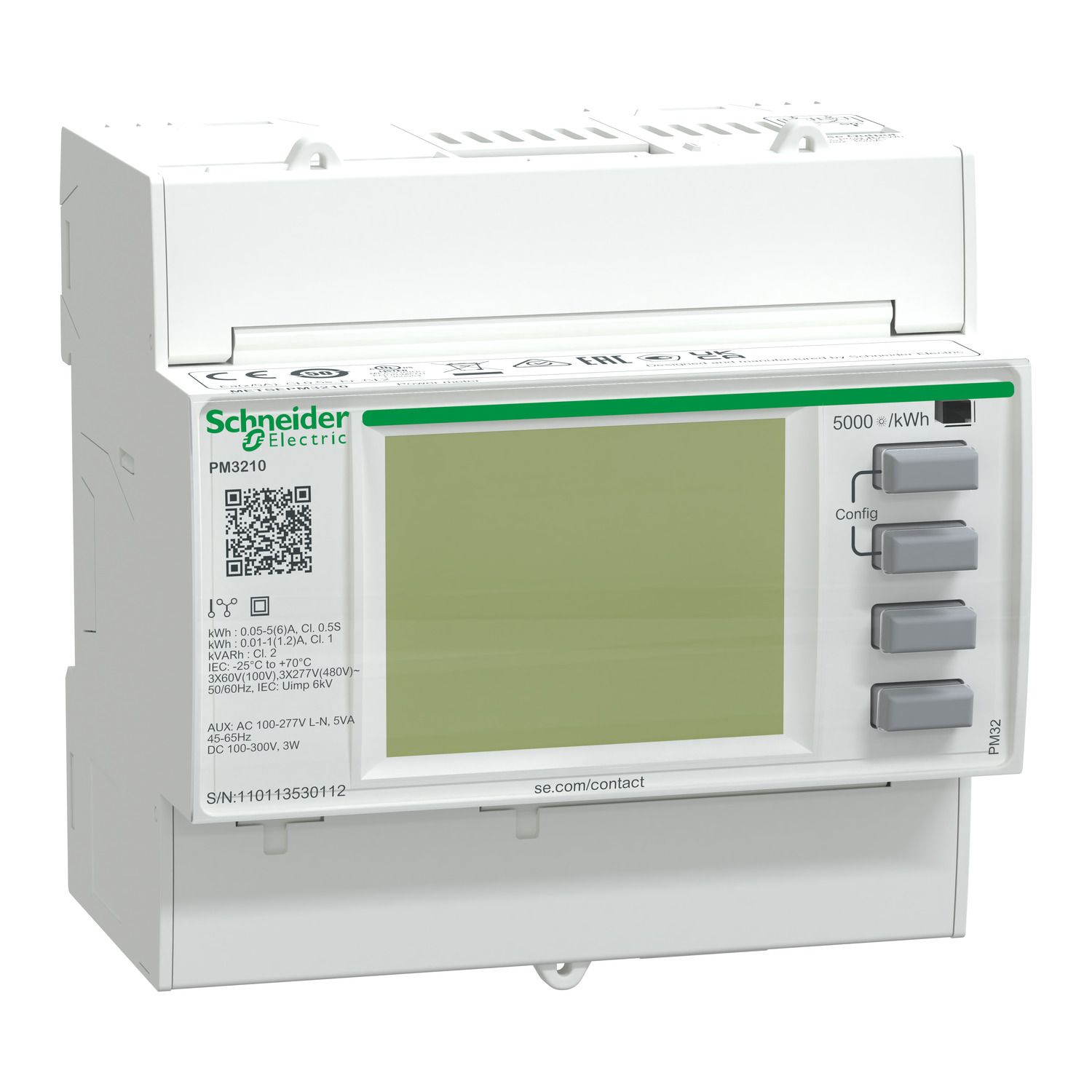

PM3210 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input capability. Support for one digital output. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM3210 |
| Range | PowerLogic |
| Market segment | industry cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: sub feeder, data center cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, industry cost management: billing: sub feeder, healthcare cost management: billing: sub feeder, data center cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder |
| Product name | PowerLogic PM3000 |
| Product or component type | power meter |
| Complementary | |
| Device application | sub billing, multi-tariff, power monitoring |
| Display type | backlit LCD |
| Measurement accuracy | voltage 0.3 % 80...570 V, voltage 0.3 % 50...330 V, current 0.5 % 0.1...1.2 A, current 0.3 % 0.5...6 A |
| Mounting mode | clip-on |
| [Us] rated supply voltage | 100...300 V DC, 173...480 V AC 45...65 Hz, 100...277 V AC 45...65 Hz |
| Information displayed | tariff (4) |
| Depth | 70 mm |
| Frequency measurement range | 45-65 Hz |
| Communication port protocol | - |
| Type of measurement | total voltage harmonic distortion THD (U), total current harmonic distortion THD (I), frequency, power factor, energy, voltage, current, apparent power, active and reactive power |
| Height | 95 mm |
| Power quality analysis | up to the 15th harmonic |
| Communication port support | - |
| Accuracy class | class C active energy conforming to EN 50470-3, class 2 reactive energy conforming to IEC 62053-23, class 1 active energy conforming to IEC 62053-21, class 0.5S active energy conforming to IEC 62053-22 |
| Market segment | small commercial, residential |
| Width | 90 mm |
| Analogue input type | current 0...1 A, current 0...5 A |
| [In] rated current | 5 A, 1 A |
| Data recording | min/max of instantaneous values, 5 alarms, time stamping |
| Poles description | 1P + N, 3P + N, 3P |
| Mounting support | DIN rail |
| Measurement current | 0.02-1.2 A, 0.05-6 A |
| Net weight | 0.26 kg |
| Number of inputs | 0 |
| Product certifications | RCM, EAC (sub-meter), cULus conforming to UL 61010-1 (safety), cULus conforming to EN 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety) |
| Display resolution | 128 x 96 pixels |
| Power consumption in VA | 5 VA |
| Number of outputs | 1 pulse |
| Standards | ANSI C12.20, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1, IEC 61010-1, EN 61010-1, BS EN 61010-1, EN 62052-23, IEC 62053-23, BS EN 62053-23, EN 62052-22, IEC 62053-22, BS EN 62053-22, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11, IEC 62052-11, BS EN 62052-11, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12, IEC 61557-12, BS EN 61557-12 |
| Sampling rate | 32 samples/cycle |
| Measurement voltage | 570-999000 V AC 45...65 Hz with external VT, 80-570 V AC 45...65 Hz phase to phase, 80-570 V AC 45...65 Hz direct, 50-330 V AC 45...65 Hz phase to neutral, 50-330 V AC 45...65 Hz direct |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| Compatibility code | PM3210 |
| IP degree of protection | IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 50-50 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, electrostatic discharge level 4 conforming to IEC 61000-4-2 |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | < 3000 m |
| Overvoltage category | III |
