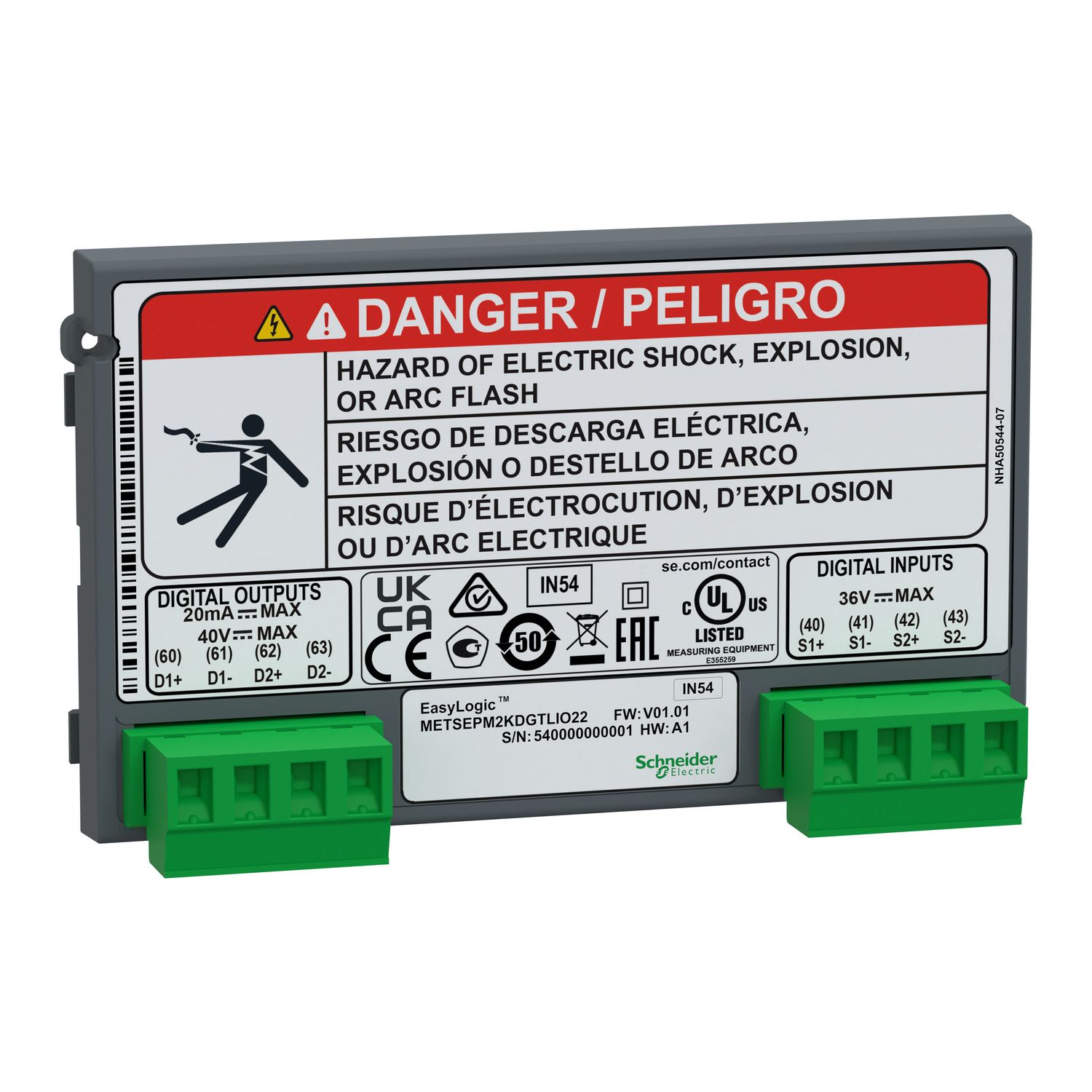

Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable outputs. This digital module provides 2 digital status inputs that support 30VDC. Plus 2 configurable pulse outputs to provide energy or parameters values. The pulse support loads up to 20mA at 40VDC. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM2K2DIDO |
| Device application | optional expansion module |
| Range | EasyLogic |
| Product or component type | I/O module |
| Range compatibility | EasyLogic EasyLogic PM2200 PM2230, EasyLogic EasyLogic PM2100 PM2130 |
| Complementary | |
| Depth | 14.6 mm |
| Output impedance | 50 Ohm |
| Width | 90.5 mm |
| Input impedance | 110 kOhm |
| Switching frequency | 2 Hz digital input |
| Voltage state 1 guaranteed | 18.5...36 V DC |
| Number of inputs | 2 |
| Net weight | 50 g |
| Voltage state 0 guaranteed | 0...4 V DC |
| [Ui] rated insulation voltage | 2500 V |
| Output voltage | 40 V DC |
| Number of outputs | 2 configurable, <= 20 mA |
| Height | 53 mm |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | -10-60 °C |
