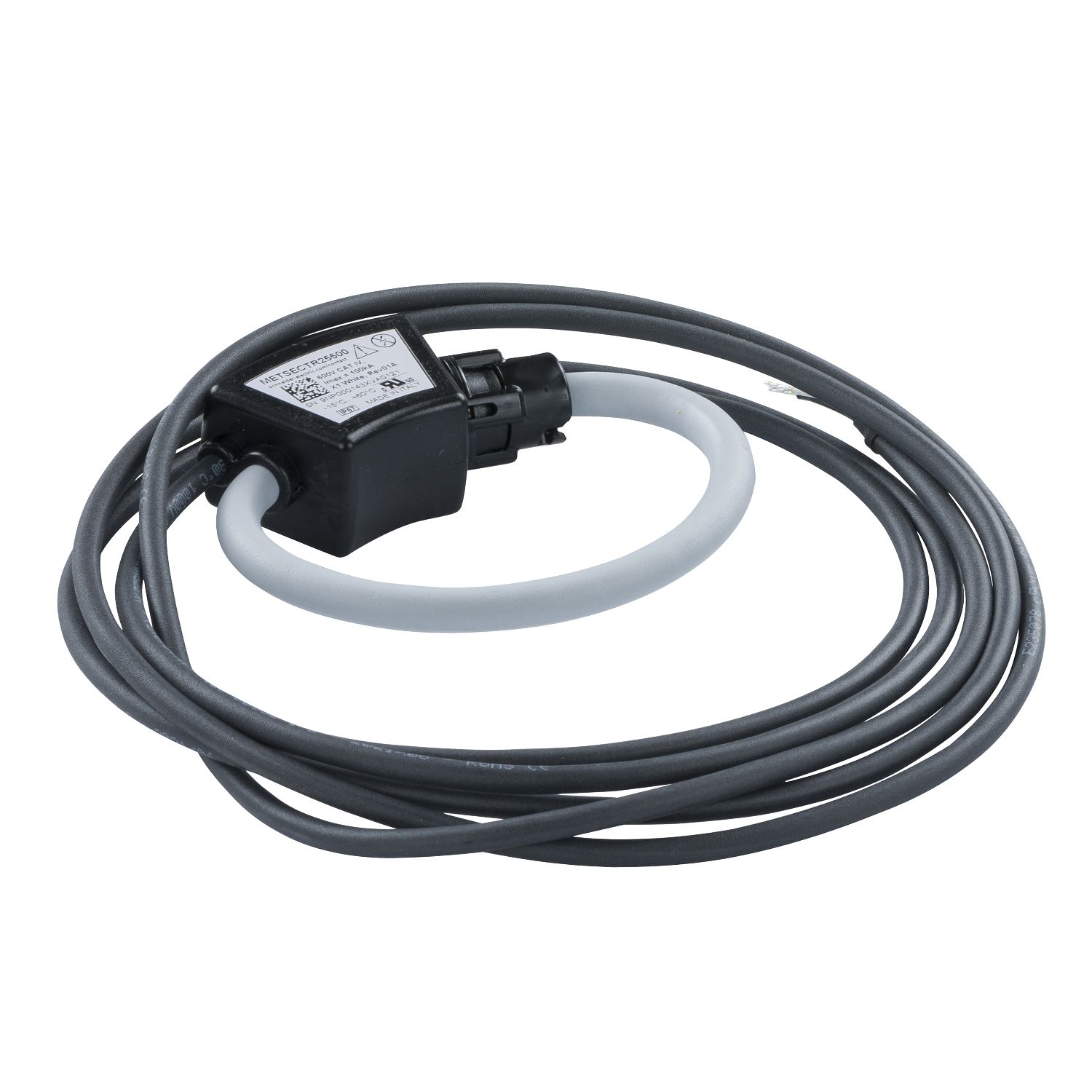

This flexible core current transducer, designed for retrofit installation, has a line rated current of 50A to 5000A. The coil can be wrapped around a maximum cable outer diameter of 80mm. Measurement accuracy plus or minus 1% from 50A to 5000A. A flying lead of 2.4 meters is available to connect the transducer to a meter. This product received the cURus certification, and is UL recognized.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Current transformer type | flexible core |
| Range | PowerLogic |
| Product or component type | current transducer |
| Accessory / separate part category | measurement accessory |
| Range compatibility | PowerLogic PowerLogic EM3500 EM3561A, PowerLogic PowerLogic EM3500 EM3560A, PowerLogic PowerLogic EM3500 EM3555A, PowerLogic PowerLogic EM3500 EM3550A, PowerLogic PowerLogic EM3500 EM3502A, PowerLogic PowerLogic EM4200 EM4236, PowerLogic PowerLogic EM4200 EM4235, Acti 9 Acti9 iEM3000 iEM3565, Acti 9 Acti9 iEM3000 iEM3555 |
| Complementary | |
| Installation category | IV |
| Diameter | closed: 80 mm |
| Height | 250 mm opened: |
| Measurement accuracy | 1 % |
| Measurement current | 50-5000 A |
| Thickness | 8 mm |
| Frequency measurement range | 50-1500 Hz |
| Pollution degree | 2 |
| Electrical connection | flying lead: 2.4 m600 V |
| Network frequency | 50 Hz |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Relative humidity | 0-95 % |
| IP degree of protection | IP67 |
| Standards | ANSI/IEEE C57.13, UL 61010-2-032, EN 61010-2-032, EN 61010-1, UL 61010-1 |
| Ambient air temperature for operation | -15-60 °C |
| Product certifications | CE, cURus, UL recognized |
