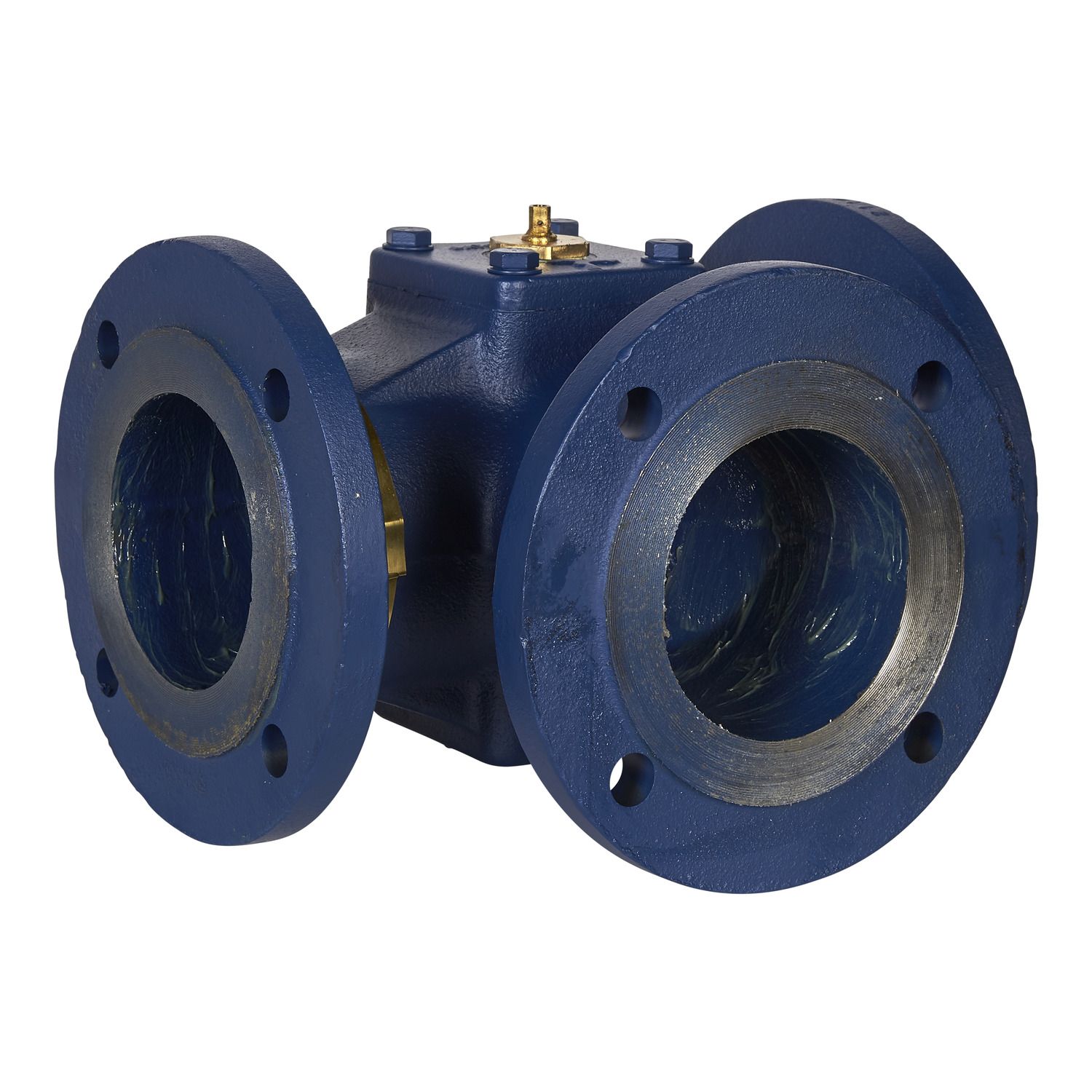

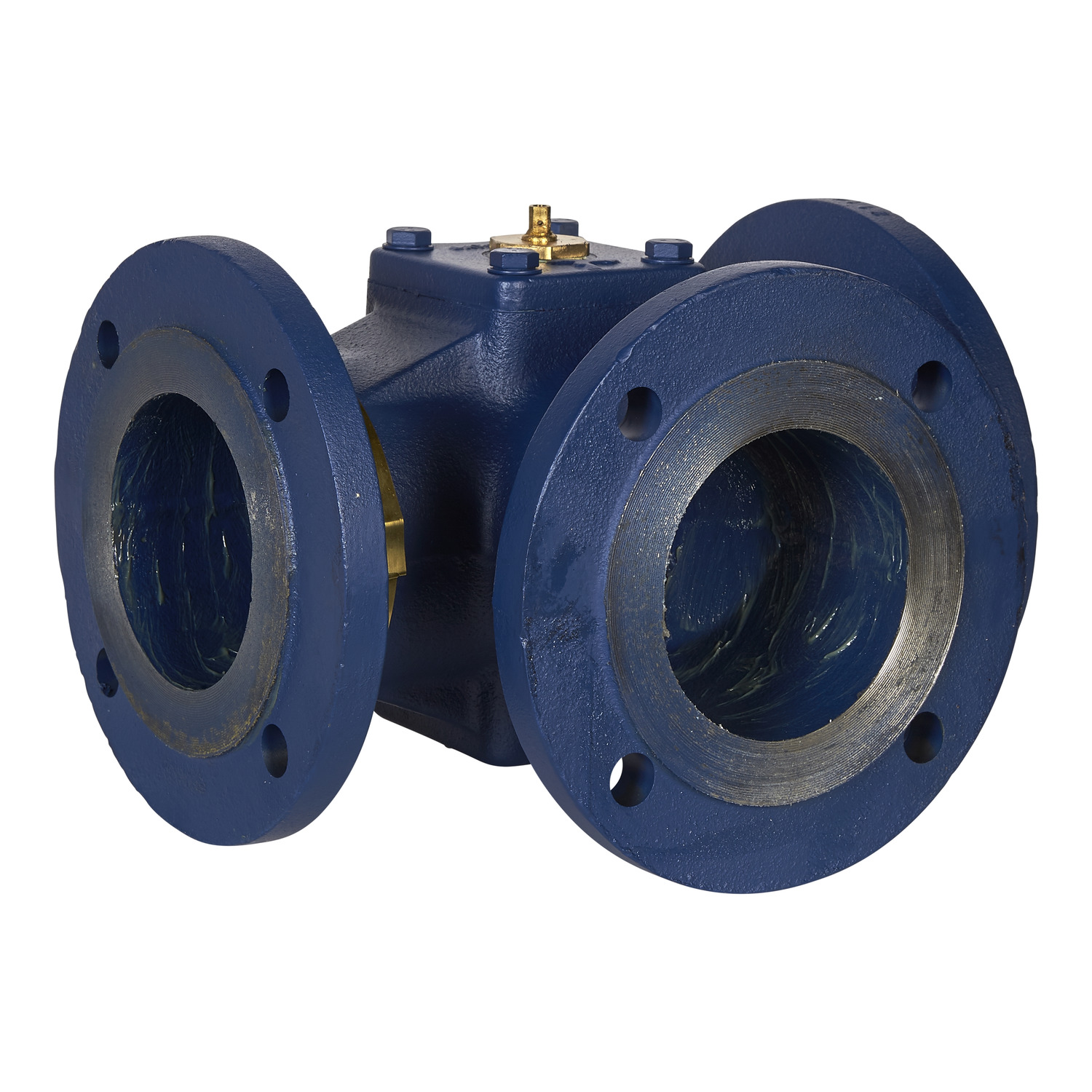

MBF is a 3 way Flanged Shoe Valve ideal for both diverting and mixing applications. The crown plug provides precise fluid control with a rangeability of 50:1. Valve size: DN65, modified linear, kvs: 65 m³/h. Constructed and flanged to a PN6 pressure class. The valve provide a working temperature range of 2 °C to 120 °C. 90 ° operating angle.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | 2-120 °C |
| Body material | close grained cast iron BS1452 Grade 260 or 220 |
| Seat leakage | Port A: Class II (0.5 %) |
| Valve Rotation | 90 ° |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Medium compatibility | Water, Glycol 25 % |
| Control valve rangeability | 50:1 |
| Valve product series | MBF |
| Flow coefficient | 65 kvs, 75.15 cv |
| Valve configuration | 3-Way |
| Stem movement | rotary |
| Valve type | shoe |
| Valve connection type | flanged |
| Flow characteristic | equal percentage |
| Trim material | brass |
| Pipe size | 65 mm |
| Pressure class | PN6 |
| Body size | 65 mm (2-1/2 in) |
