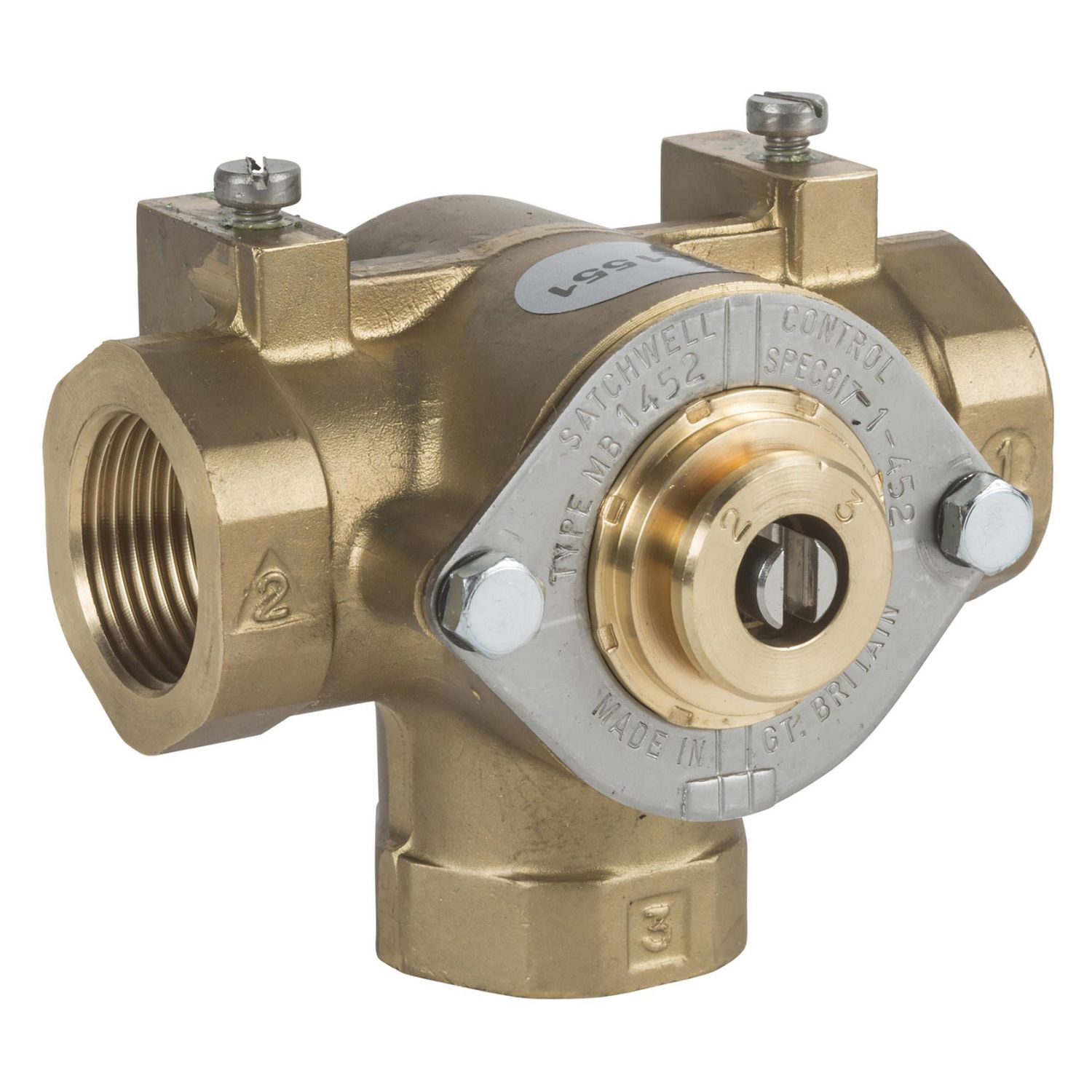

MB 3-way, Threaded Shoe Valve, 1/2" (Rp 1/2). The crown plug provides precise fluid control with a rangeability of 50:1. Valve size: DN2, modified linear, kvs: 2 m³/h. Constructed and flanged to a PN10 pressure class. The valve provide a working temperature range of 2 °C to 120 °C. 90 ° operating angle.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | 2-120 °C |
| Body material | forged brass |
| Seat leakage | Port A: Class II (0.5 %) |
| Valve Rotation | 90 ° |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Medium compatibility | Water, Glycol 25 % |
| Control valve rangeability | 50:1 |
| Valve product series | MB |
| Flow coefficient | 2 kvs, 2.31 cv |
| Valve configuration | 3-Way |
| Stem movement | rotary |
| Valve type | shoe |
| Valve connection type | Rp Internal |
| Flow characteristic | equal percentage |
| Trim material | brass |
| Pipe size | 1/2 in |
| Pressure class | PN10 |
| Body size | 15 mm (1/2 in) |
