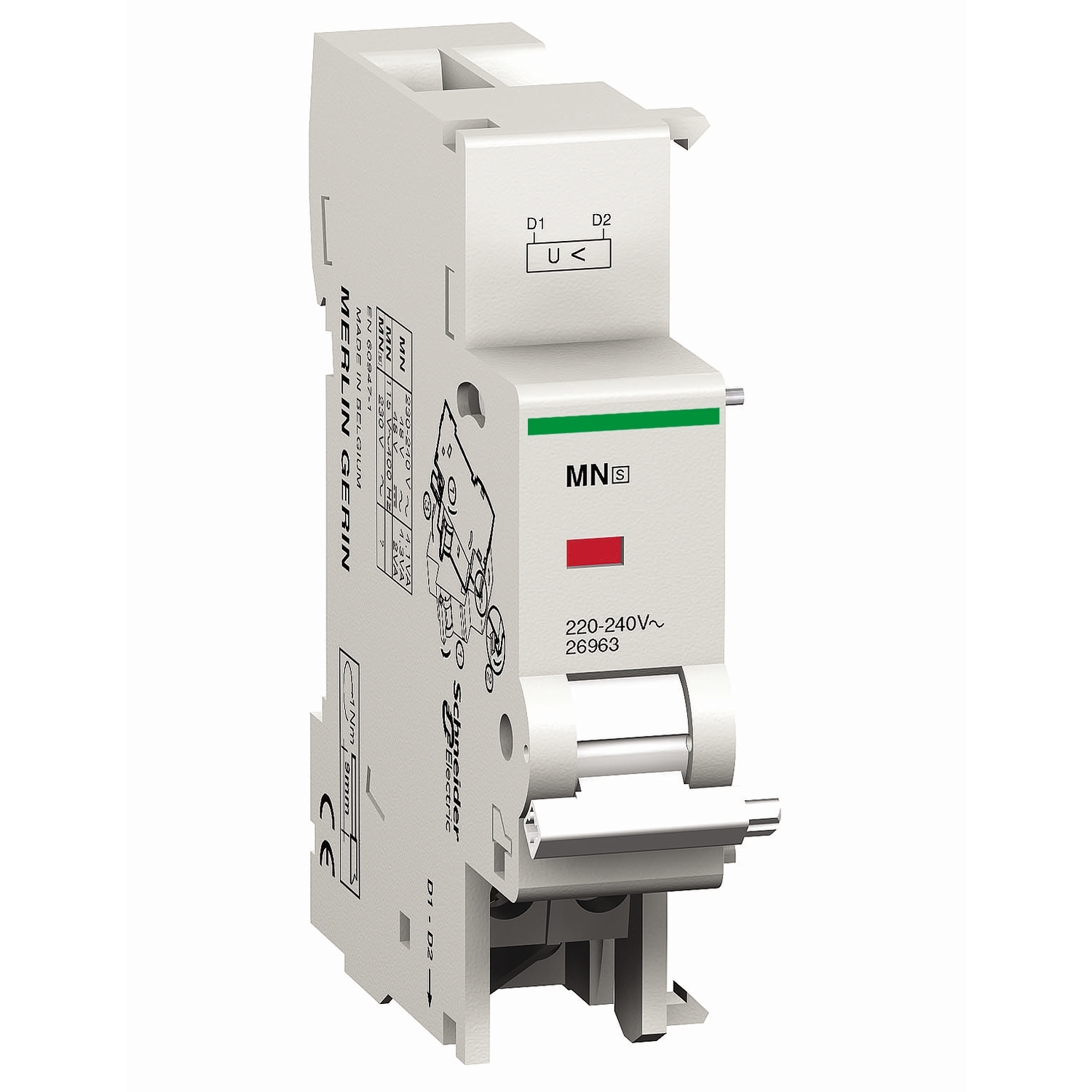

This Multi9 MNs electrical auxiliary is an undervoltage release device. It is dedicated to Multi9 GFP, C60 and C60H-DC. It prevents device closing again until its input voltage has been restored.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MNs |
| Control type | delayed |
| Range | Multi9 |
| Product or component type | undervoltage release |
| 9 mm pitches | 2 |
| Range of product | C60BPR, GFP, C60BP, C60SP |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m bottom |
| Depth | 68 mm |
| Width | 18 mm |
| Local signalling | action indicator |
| Mounting mode | fixed |
| Connections - terminals | clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid |
| Wire stripping length | 9 mm for bottom connection |
| Net weight | 0.066 kg |
| Comb busbar and distribution block compatibility | top: YES |
| Range compatibility | Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP |
| Mounting support | DIN rail |
| Height | 82.5 mm |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| Standards | GB/T 14048.5, C22.2 No. 5, UL 1077, UL 489, EN 60947-2, EN/IEC 60947-5-1, EN/IEC 60947-1 |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | UL, UR, PCT |
