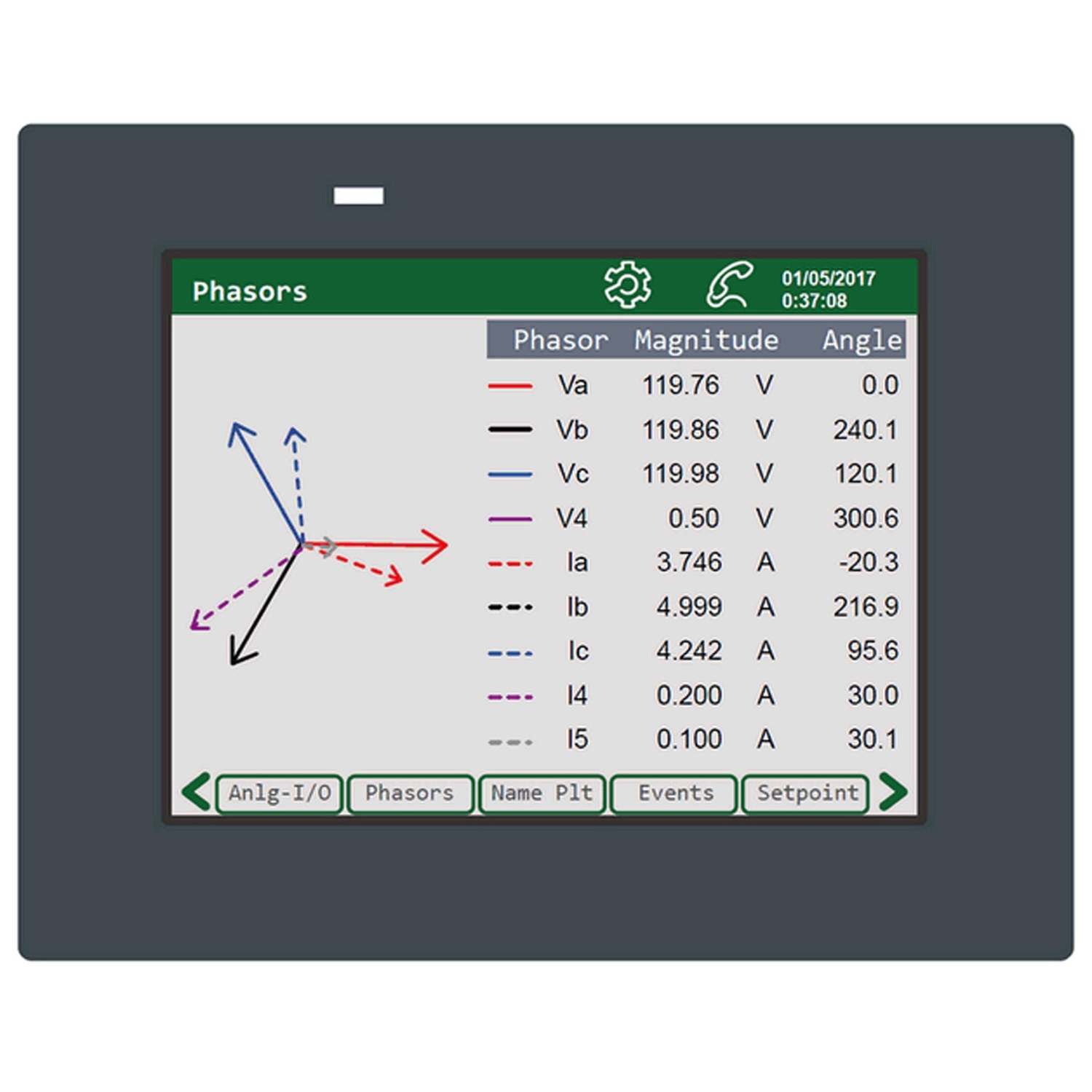

Optional remote display kit for the PowerLogic ION7650 transducer meter. Kit includes touchscreen display, 24 VDC power supply and interfacing cable. Information avaiable from the display: harmonic distortion, voltage and current. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Display is panel mounting using a 22.5 mm push-button hole. Power supply is DIN rail mounting.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | human-machine dialogue application |
| Display type | colour TFT LCD |
| Range | PowerLogic |
| Product or component type | remote display |
| Range compatibility | PowerLogic PowerLogic ION7650, PowerLogic PowerLogic ION7550 |
| Complementary | |
| Projecting depth | 56.5 mm |
| Width | 163 mm |
| Display colour | 65536 colours |
| Display size | 115.2 x 86.4 mm |
| Mounting support | framework remote display |
| Local signalling | on/off: LED (green) |
| Mounting mode | Ø 22 mm |
| Control type | touch screen |
| Connector type | RJ45 |
| Messages display capacity | graphic objects (bargraph, button, light...) |
| Provided equipment | cable (with 3.65 m, power supply, terminal block, anti-rotation tee, tightening wrench |
| Net weight | 250 g |
| Display resolution | 320 x 240 pixels QVGA |
| Embedding depth | 30.6 mm |
| Height | 129.4 mm |
| Information displayed | voltage, harmonic distortion, current |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 conforming to IEC 60529, IP65 conforming to IEC 60529 (front panel outside connection zone) |
| Relative humidity | 5-85 % at 39-39 °C |
| Ambient air temperature for storage | -20-60 °C |
| Standards | CSA C22.2 No 142, UL 508, UL 1604, ANSI/ISA 12.12.01, CSA C22.2 No 212 |
| Ambient air temperature for operation | 0-50 °C |
| Product certifications | UL, CE, ATEX |
