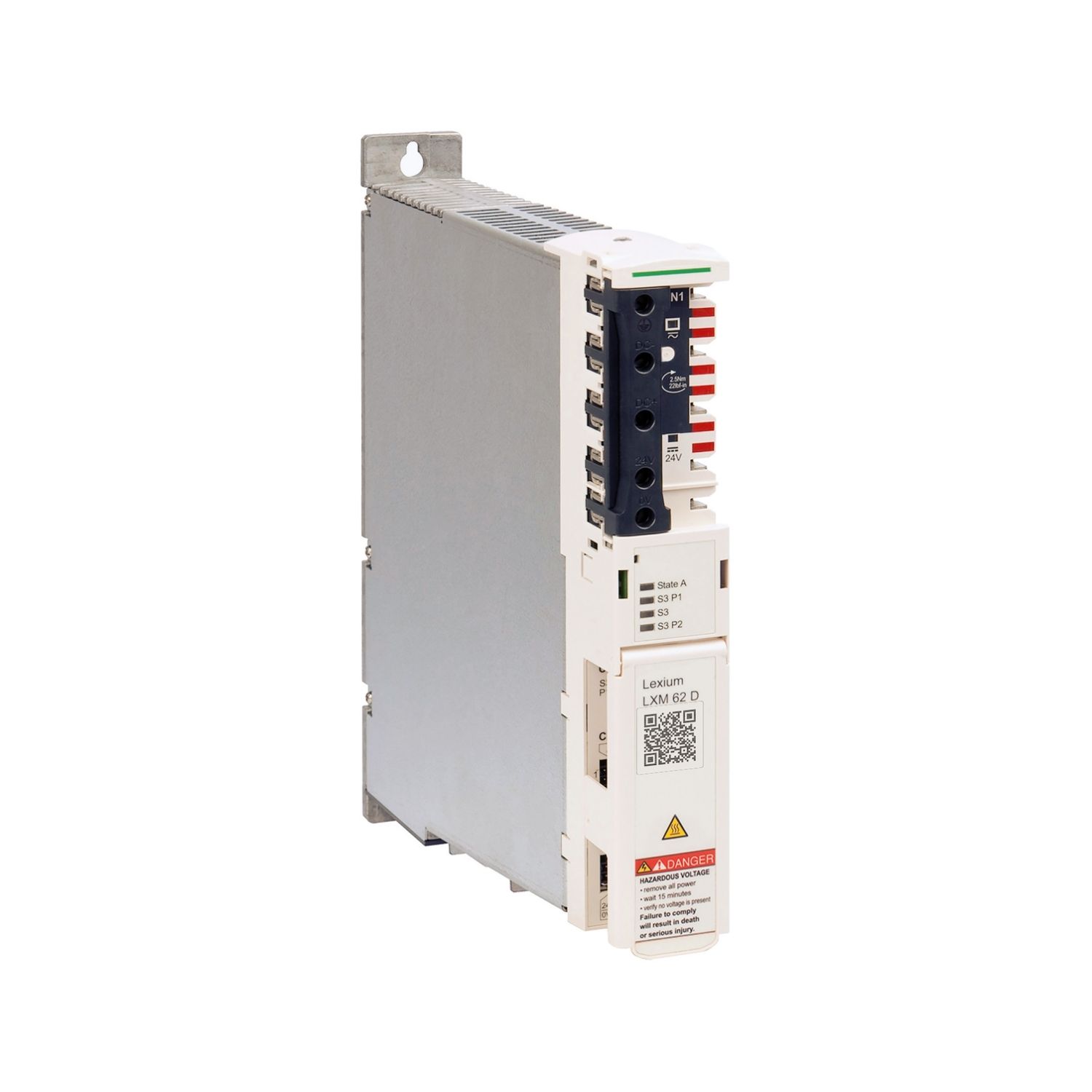

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 20A at 4kHz and a continuous power of 9.6kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets EN 61800-5-2, EN/ISO 13849-1, EN 61800-3, CSA C22.2 No 14, EN 62061 and UL 508C standards. This product is compatible with servo motor SH3 (140mm, 4 motor stacks), servo motor SH3 (205mm, 1 motor stack) and servo motor MH3 (140mm, 2 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LXM 62 |
| Range of product | PacDrive 3 |
| Component name | LXM62 |
| Product or component type | single drive |
| Complementary | |
| Continuous output current | 20 A at 4 kHz |
| Tightening torque | CN1: 2.5-2.5 N.m |
| Electrical connection | terminal, clamping capacity: 0.2...6 mm², AWG 24...AWG 10 (CN7), terminal, clamping capacity: 0.75...16 mm², AWG 18...AWG 6 (CN6), terminal, clamping capacity: 0.5...16 mm², AWG 20...AWG 6 (CN5), terminal, clamping capacity: 0.2...15 mm², AWG 24...AWG 16 (CN4) |
| Communication interface | SERCOS III, integrated |
| Height | 310 mm |
| Number of outputs | 2 digital |
| Continuous power | 9.6 kW |
| Supply frequency | 50/60 Hz - 5...5 % |
| Nominal power | 9.6 kW |
| Depth | 270 mm |
| Overvoltage category | III |
| Width | 44.5 mm |
| Product compatibility | servo motor MH3 (140 mm, 1 motor stacks)optimized in terms of torque and speed, servo motor MH3 (100 mm, 3 motor stacks)optimized in terms of torque and speed, servo motor SH3 (140 mm, 3 motor stacks)optimized in terms of torque and speed, servo motor SH3 (140 mm, 2 motor stacks)optimized in terms of torque and speed, servo motor SHS, servo motor MH3 (190 mm, 1 motor stacks)optimized in terms of torque and speed, servo motor MH3 (140 mm, 3 motor stacks)optimized in terms of torque and speed, servo motor MH3 (140 mm, 2 motor stacks)optimized in terms of torque and speed, servo motor SH3 (205 mm, 1 motor stacks)optimized in terms of torque and speed, servo motor SH3 (140 mm, 4 motor stacks)optimized in terms of torque and speed |
| Safety function | STO (safe torque off) |
| Discrete output voltage | 24 V DC |
| Switching frequency | 8 kHz |
| Number of inputs | 2 touch probe, 2 digital |
| Net weight | 3 kg |
| Network number of phases | three phase |
| Discrete input voltage | 24 V DC for - 20...25 % |
| Output current 3s peak | 45 A at 4 kHz |
| [Us] rated supply voltage | 230 V (- 10...10 %) for single phase, 230 V (- 10...10 %) for three phase, 400 V (- 10...10 %) for three phase |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 conforming to IEC 61800-5-2 |
| Relative humidity | 5-85 % |
| Ambient air temperature for operation | 5-55 °C |
| Vibration resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 |
| Shock resistance | 100 m/s² conforming to IEC 60721-3-3 |
| Standards | IEC 61800-5-1, IEC 61508, ISO 13849-2, UL 508C, IEC 62061, CSA C22.2 No 14, IEC 61800-3, ISO 13849-1, IEC 61800-5-2 |
| Product certifications | TÜV, CSA, UL, EAC, CE |
