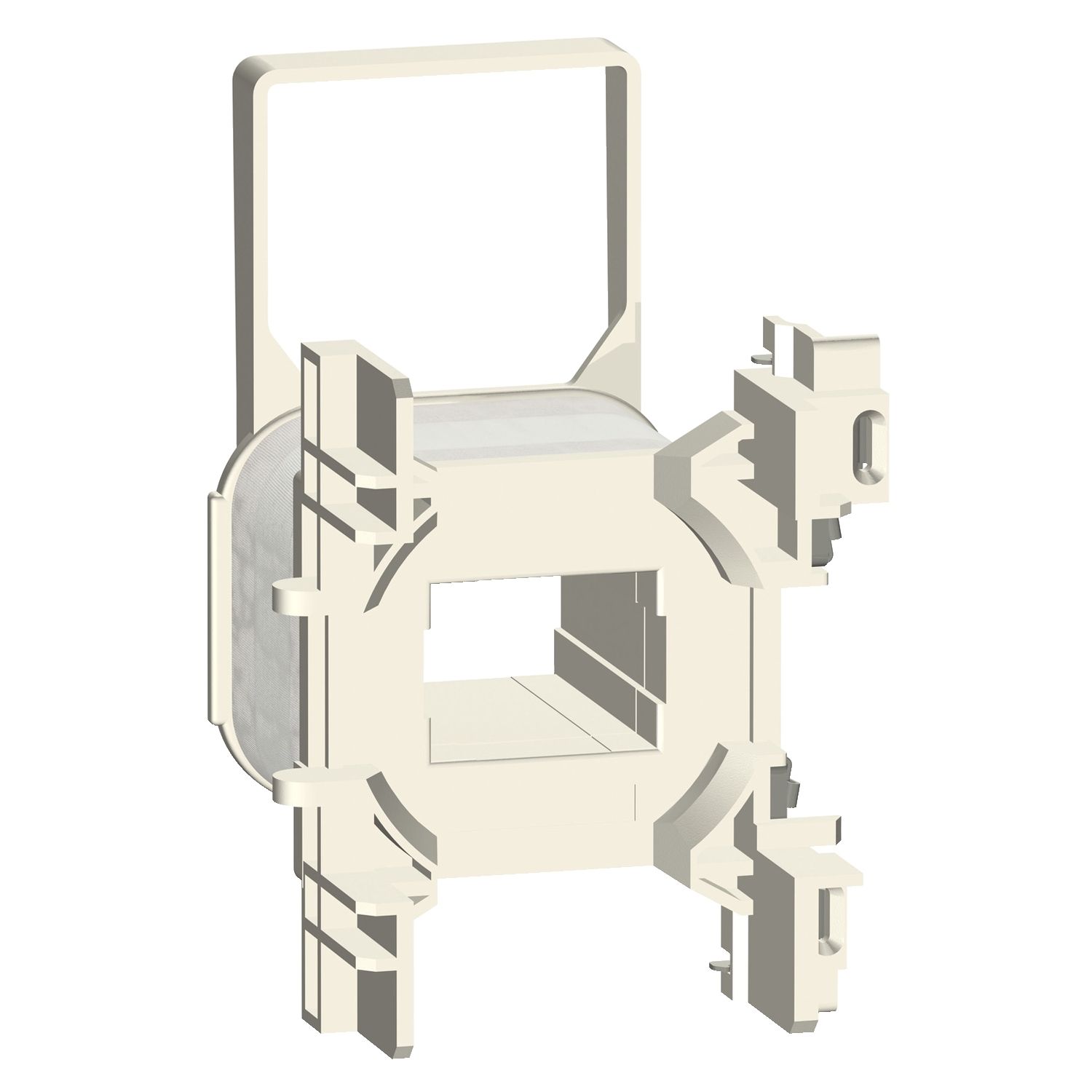

This is a contact coil of Tesys Deca contactors. It's multiple certified and sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LXD3 |
| Product compatibility | LC1DT60A...DT80A, LC2D40A...D80A, LC1D40A...D80A |
| Mechanical durability | 6 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Inductance of closed circuit | 33.1 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Control circuit type | AC at 60 Hz |
| Range of product | TeSys Deca |
| [Uc] control circuit voltage | 480 V AC 60 Hz |
| Average resistance | 607 Ohm at 20 °C |
| Complementary | |
| Heat dissipation | 4-5 W at 60 Hz |
| Hold-in power consumption in VA | 15-15 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 160-160 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Control circuit voltage limits | operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 60 Hz (at <60 °C) |
| Environment | |
| Net weight | 0.07 kg |
| Ambient air temperature for operation | -5-60 °C |
Only registered users can write reviews
Related products
Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 480VAC 60Hz coil
LC1D40AT7
Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 480VAC 60Hz coil
$438.90 inc GST
$174.20 inc GST

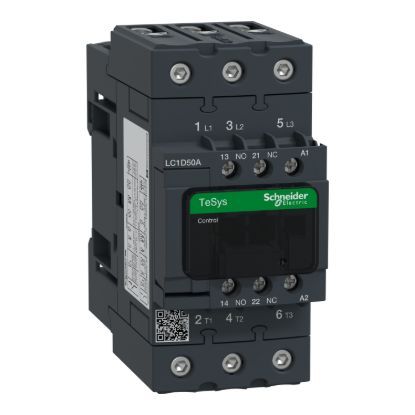

Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 480VAC 60Hz coil
LC1D50AT7
Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 480VAC 60Hz coil
$533.50 inc GST
$211.75 inc GST

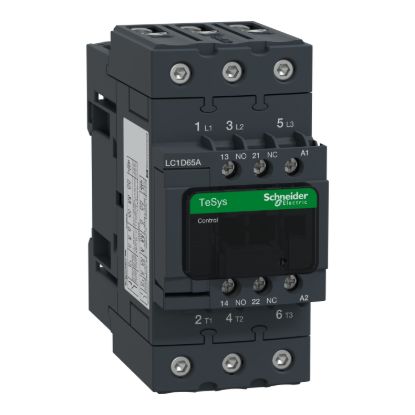

Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 480VAC 60Hz coil
