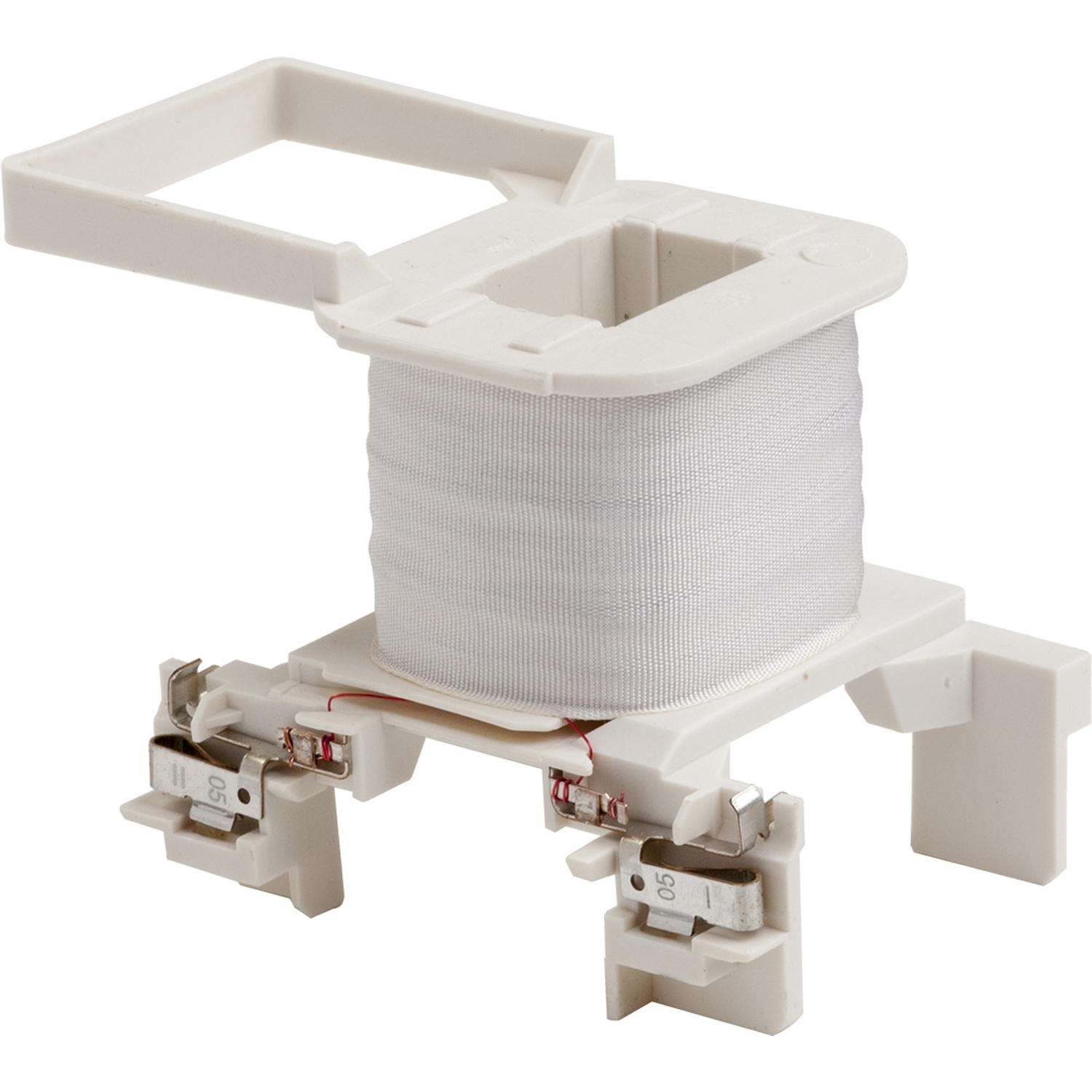

Contactor Coil, TeSys D, LXD3, 220 V AC 50/60 Hz for 40… 65 A Contactor

Manufacturer: Schneider Electric

SKU: LXD3M7

GTIN: 3389119410410

Catalog

Old price: $124.30 inc GST

Price: $49.33 inc GST

Qty:

Supported cards

Products specifications

Attribute name	Attribute value
Main
Device short name	LXD3

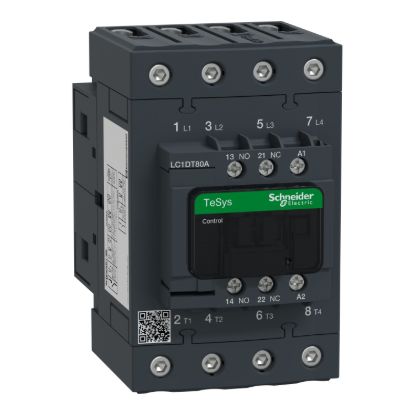

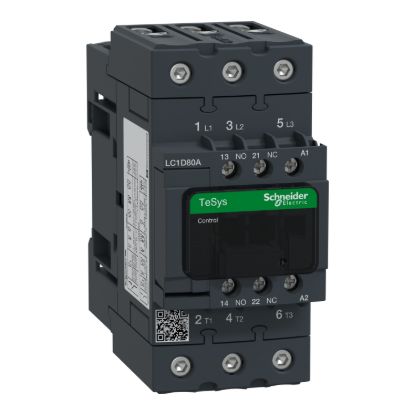

Product compatibility	LC1DT60A, LC1DT80A, LC1D40A...D65A
Mechanical durability	6 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Inductance of closed circuit	10 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 50/60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	220 V AC 50/60 Hz
Average resistance	182 Ohm at 20 °C
Complementary
Heat dissipation	4-5 W at 50/60 Hz
Hold-in power consumption in VA	15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight	0.07 kg
Ambient air temperature for operation	-5-60 °C
