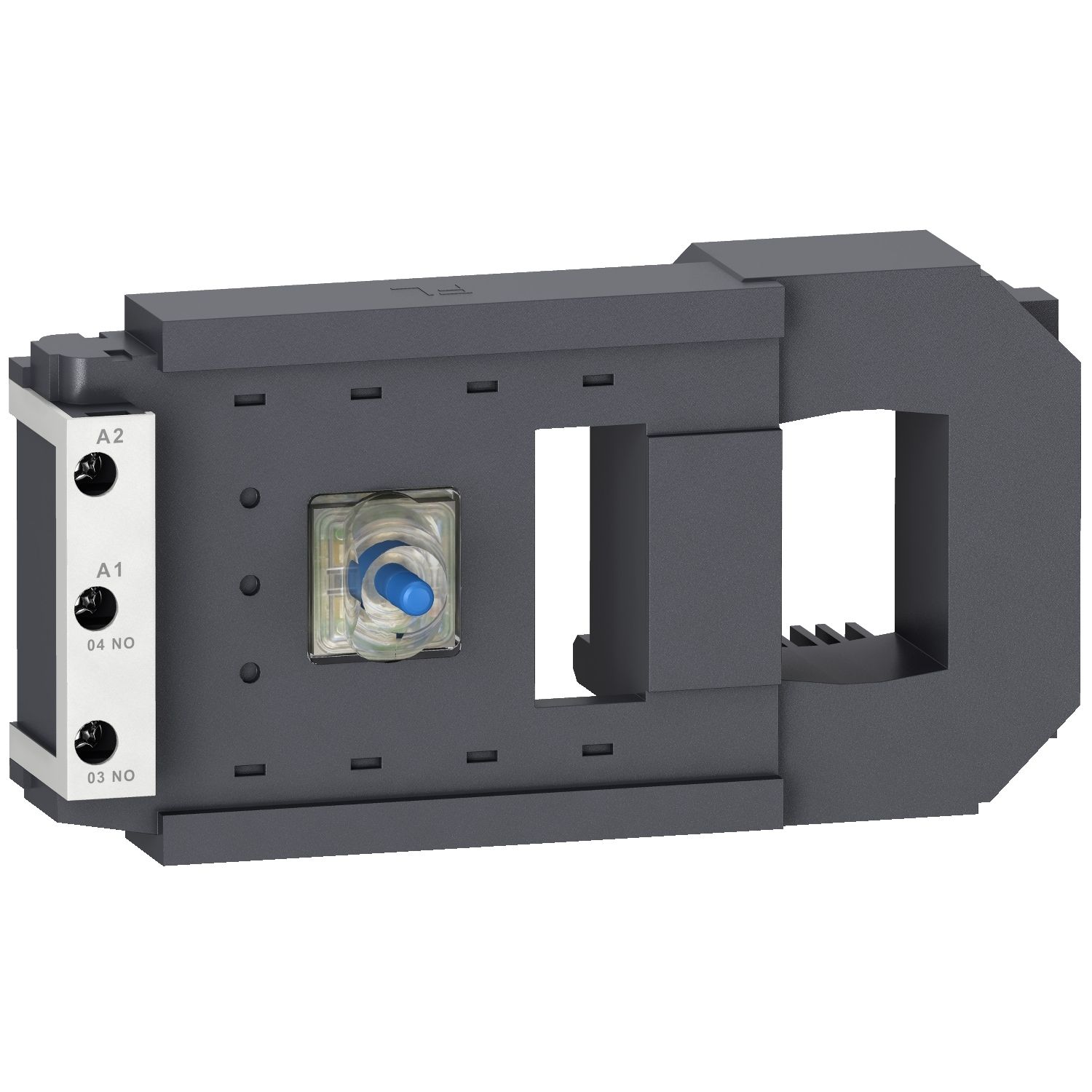

TeSys F AC coil 240/265V 40-400Hz (voltage code U7/UE7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mechanical durability | 10 Mcycles |
| Device short name | LX9FG |
| Product compatibility | LC1F225, LC1F185 |
| Operating time | 35 ms closing, 130 ms opening |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Inductance of closed circuit | 7.22 H |
| Range | TeSys |
| Product or component type | specific contactor coil |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Control circuit type | AC at 40...400 Hz low consumption |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 240 V AC 40...400 Hz |
| Average resistance | 2060 Ohm holding at 20 °C, 50.6 Ohm inrush at 20 °C |
| Complementary | |
| Heat dissipation | 8-9.8 W |
| Hold-in power consumption in VA | 8.9-10.9 VA 40...400 Hz (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 950-1180 VA 40...400 Hz (at 20 °C) |
| Control circuit voltage limits | drop-out: 0.2...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C) |
| Environment | |
| Net weight | 0.55 kg |
| Ambient air temperature for operation | -5-55 °C |
