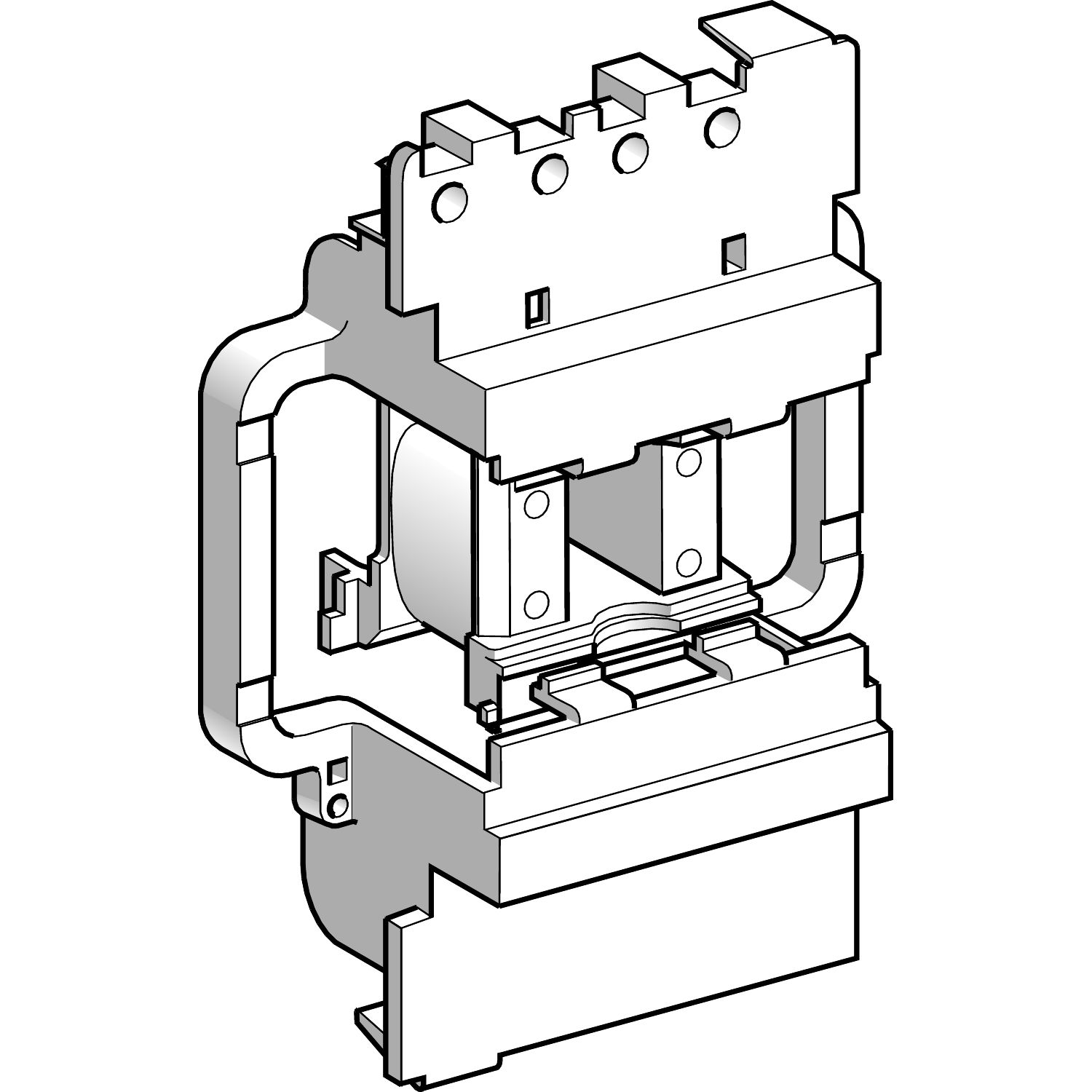

This product is TeSys Deca replacement DC coil 220V for TeSys Deca contactors. It is applied on 3-pole contactors LC1D80 or 4-pole contactors LP1D80. It operates in the voltage limits 0.75-1.2 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LX4D8 |
| Product compatibility | LC1D150, LC1D115 |
| Mechanical durability | 8 Mcycles |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Inductance of closed circuit | 210.72 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Control circuit type | DC standard |
| Range of product | TeSys Deca |
| [Uc] control circuit voltage | 220 V DC |
| Average resistance | 9895 Ohm at 20 °C |
| Complementary | |
| Inrush power in W | 270-365 W (at 20 °C) |
| Time constant | 25 ms |
| Coil technology | without built-in suppressor module |
| Hold-in power consumption in W | 2.4-5.1 W at 20 °C |
| Control circuit voltage limits | drop-out: 0.15...0.4 Uc (at <55 °C), operational: 0.75...1.2 Uc (at <55 °C) |
| Environment | |
| Net weight | 0.3 kg |
| Ambient air temperature for operation | -5-60 °C |
Only registered users can write reviews
Related products
Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, lugs/bars terminals
LC1D1156MD
Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, lugs/bars terminals
$939.40 inc GST
$372.85 inc GST

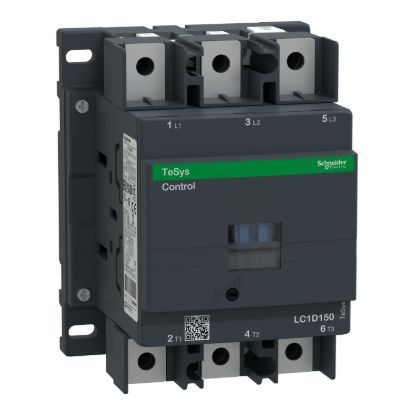

Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 220V DC standard coil, lugs/bars terminals
LC1D1506MD
Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 220V DC standard coil, lugs/bars terminals
$1,223.20 inc GST
$485.49 inc GST

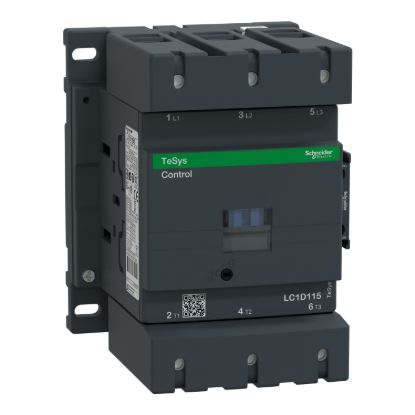

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, screw clamp terminals
