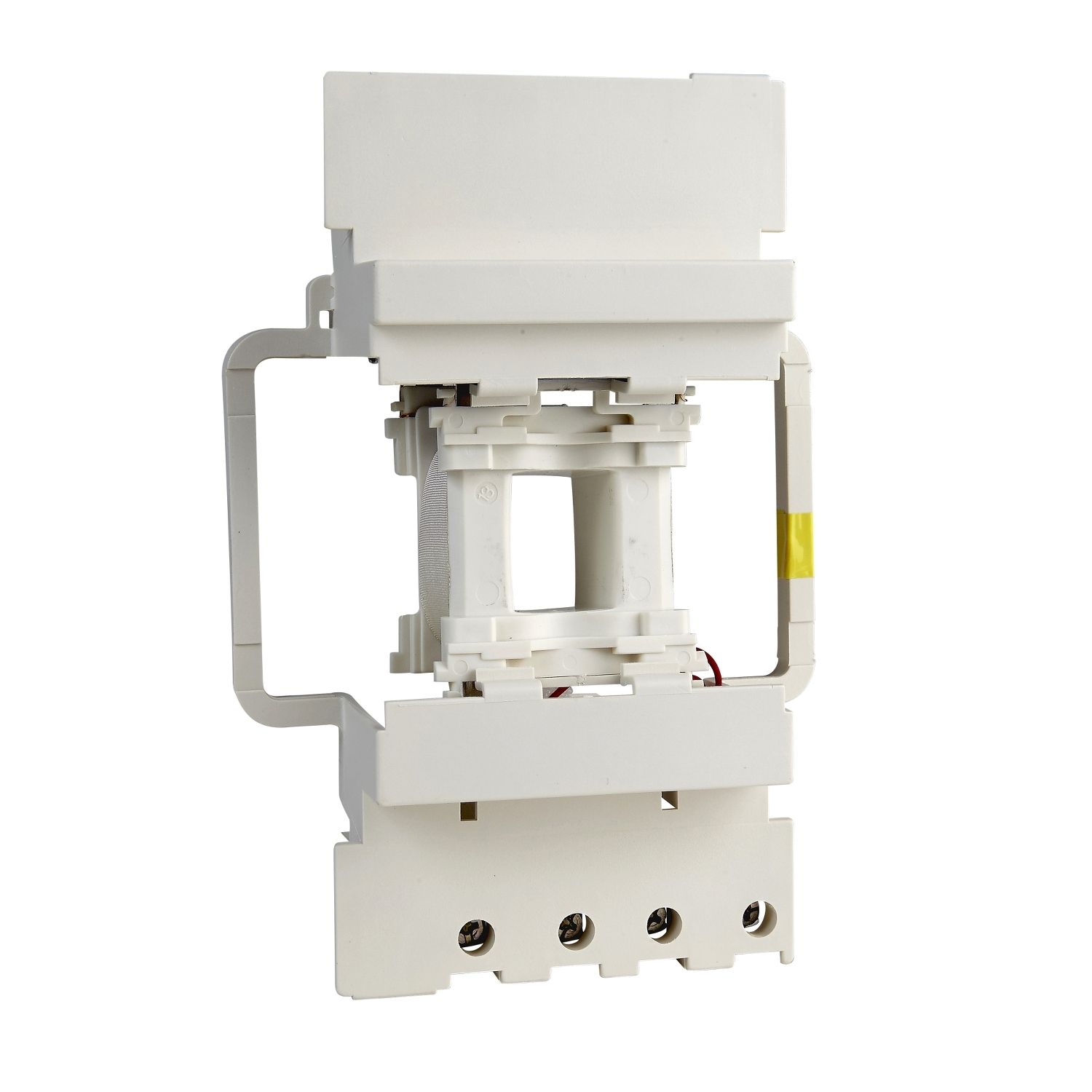

This product is TeSys Deca replacement AC coil 220V 50Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D115. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LX1D8 |
| Product compatibility | LC1D115 |
| Mechanical durability | 8 Mcycles |
| Maximum operating rate | 2400 cyc/h 60 °C |
| Inductance of closed circuit | 7.65 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Control circuit type | AC at 50 Hz |
| Range of product | TeSys Deca |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Average resistance | 104.77 Ohm at 20 °C |
| Complementary | |
| Heat dissipation | 3-8 W at 50 Hz |
| Hold-in power consumption in VA | 22-22 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 300-300 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Control circuit voltage limits | operational: 0.85...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C) |
| Environment | |
| Net weight | 0.26 kg |
| Ambient air temperature for operation | -5-60 °C |
