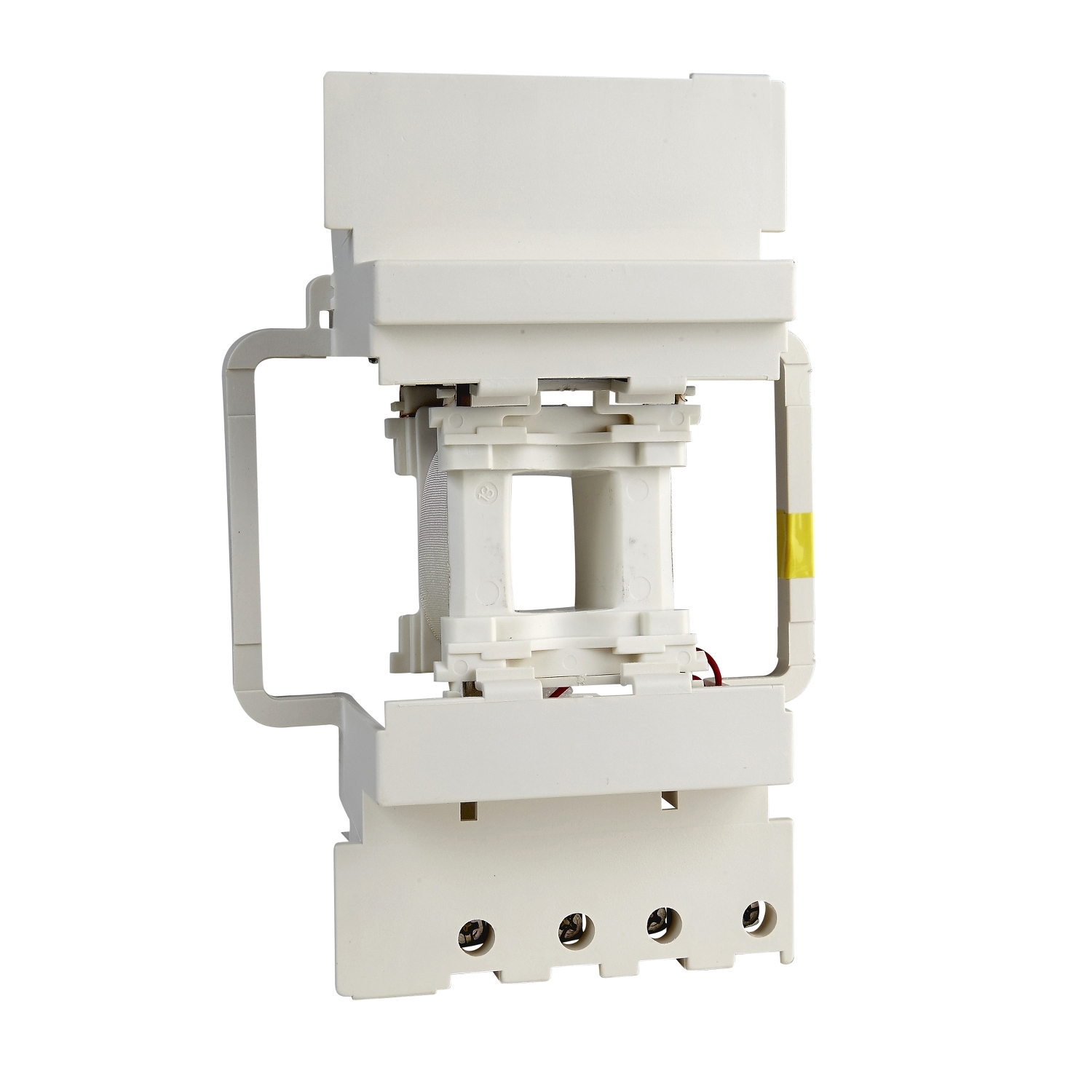

Contactor Coil, TeSys D, LX1D8, 48 V AC 50/60 Hz for 115 & 150 A Contactor

Manufacturer: Schneider Electric

SKU: LX1D8E7

GTIN: 3389110868371

Catalog

Environmental Disclosure

Old price: $211.42 inc GST

Price: $83.91 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca replacement AC coil 48V 50/60Hz for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.8-1.15 Uc and environments until 55°C Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LX1D8
Product compatibility	LC1D115, LC1D150
Mechanical durability	8 Mcycles
Maximum operating rate	1200 cyc/h 60 °C
Inductance of closed circuit	24.19 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 50/60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	48 V AC 50/60 Hz
Average resistance	1061 Ohm at 20 °C
Complementary
Heat dissipation	3-4.5 W at 50/60 Hz
Hold-in power consumption in VA	2-18 VA 50 Hz cos phi 0.9 (at 20 °C), 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	280-350 VA 50 Hz cos phi 0.9 (at 20 °C), 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
Control circuit voltage limits	operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C), drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Environment
Ambient air temperature for operation	-5-60 °C
