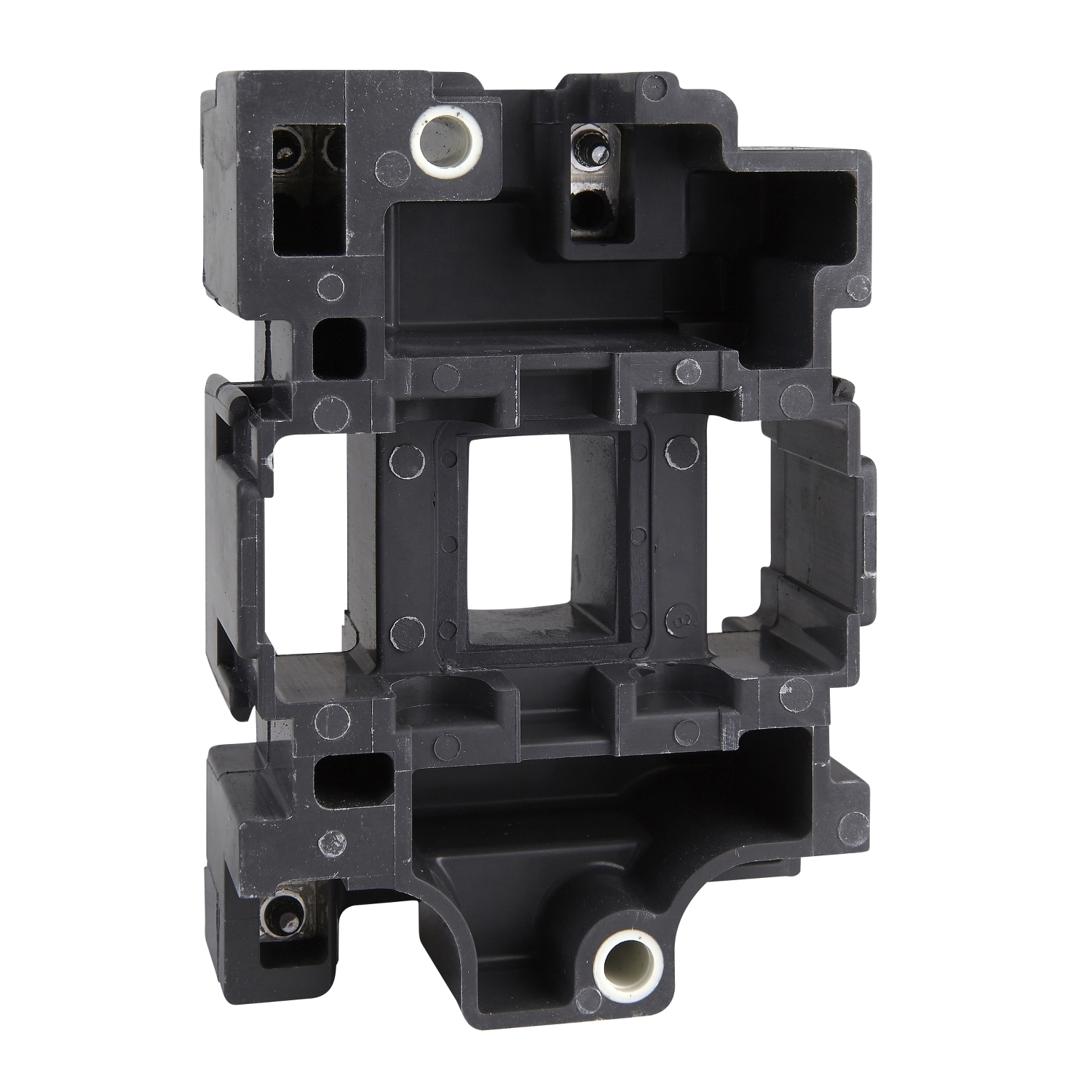

This product is TeSys Deca replacement AC coil 480V 60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LX1D6 |
| Product compatibility | LC1D95, LC1D80 |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Inductance of closed circuit | 23 H |
| Range | TeSys |
| Product or component type | contactor coil |
| Control circuit type | AC at 60 Hz |
| Range of product | TeSys Deca |
| [Uc] control circuit voltage | 480 V AC 60 Hz |
| Average resistance | 480 Ohm at 20 °C |
| Complementary | |
| Heat dissipation | 6-10 W at 50/60 Hz |
| Hold-in power consumption in VA | 22-22 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Coil technology | without built-in suppressor module |
| Inrush power in VA | 220-220 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Control circuit voltage limits | operational: 0.85...1.1 Uc at 60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) |
| Environment | |
| Net weight | 0.28 kg |
| Ambient air temperature for operation | -5-60 °C |
Only registered users can write reviews
Related products

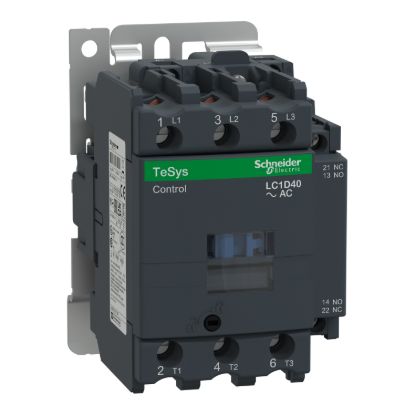

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,480V AC 60Hz coil, screw clamp terminals
