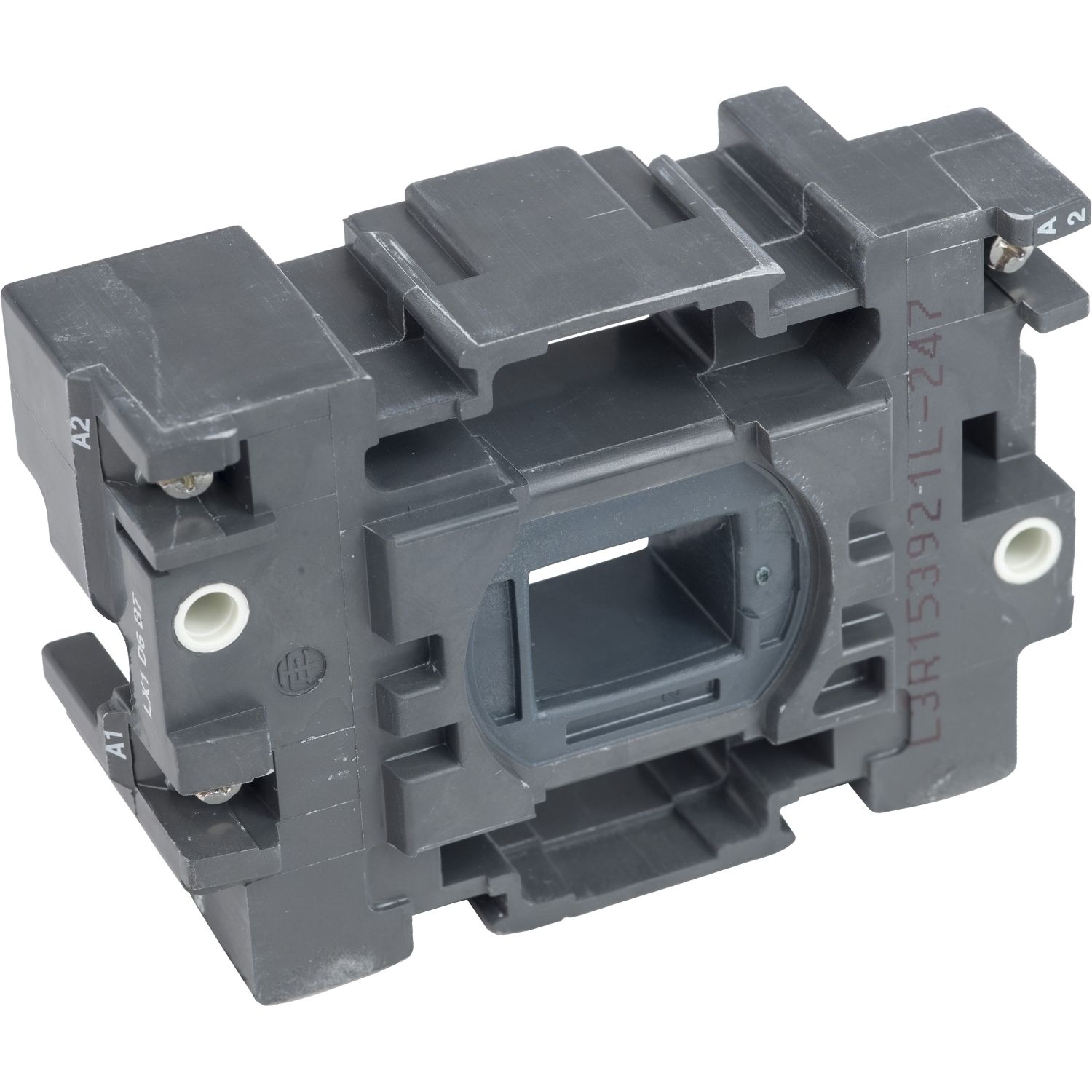

Contactor Coil, TeSys D, LX1D6, 24 V AC 50/60 Hz for 80 & 95 A Contactor

Manufacturer: Schneider Electric

SKU: LX1D6B7

GTIN: 3389110233353

Catalog

Environmental Disclosure

Old price: $275.55 inc GST

Price: $109.37 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is TeSys Deca replacement AC coil 24V 50/60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D80 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LX1D6
Product compatibility	LC1D65...D95, LC1D50, LC1D40
Mechanical durability	4 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Inductance of closed circuit	0.08 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 50/60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	24 V AC 50/60 Hz
Average resistance	1.22 Ohm at 20 °C
Complementary
Heat dissipation	6-10 W at 50/60 Hz
Hold-in power consumption in VA	26-26 VA 50 Hz cos phi 0.3 (at 20 °C), 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	245-245 VA 50 Hz cos phi 0.75 (at 20 °C), 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Environment
Net weight	0.28 kg
Ambient air temperature for operation	-5-60 °C
