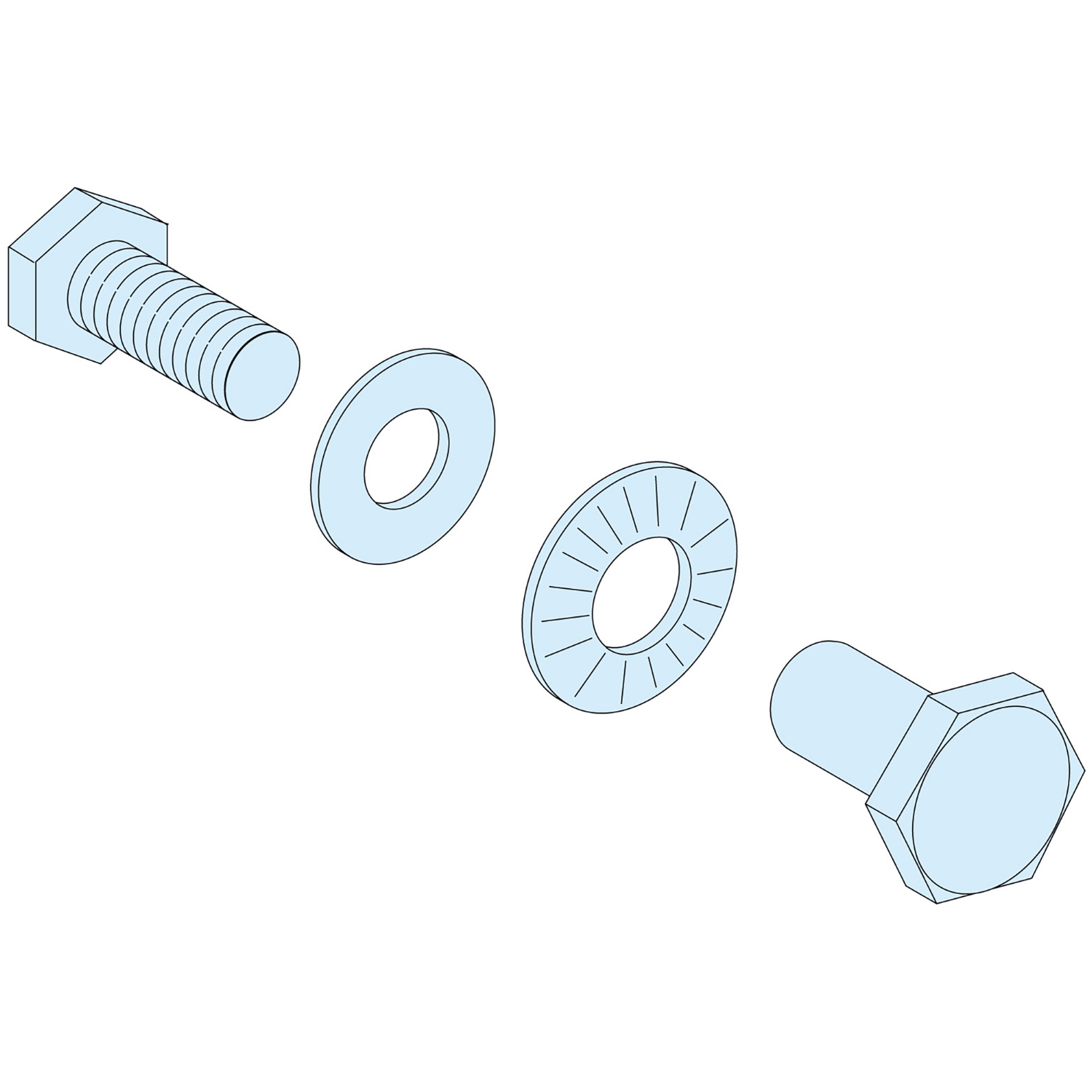

Linergy BS Mounting Hardware/Joint designed for Linergy. Compatible with the Linergy BS busbar and PrismaSeT P enclosures. Supplied with 20 screws/joints, each 2x10 mm thick, suitable for both horizontal and vertical busbar installations.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Linergy |
| Product name | Linergy BS |
| Product or component type | mounting hardware |
| Range compatibility | PrismaSeT Prisma PH enclosure, PrismaSeT Prisma iPM M enclosure, PrismaSeT Prisma iPM L enclosure, PrismaSeT PrismaSeT P enclosure, Linergy Linergy BS busbar |
| Range of product | Linergy |
| Complementary | |
| Screw length | 30 mm |
| Quantity per set | set of 20 |
| Net weight | 1.54 kg |
| Cubicle-device connection | two 10 mm thick horizontal/vertical busbar |
| Environment | |
| Standards | IEC 61439-1, IEC 61439-2 |
| Product certifications | ASTA |
