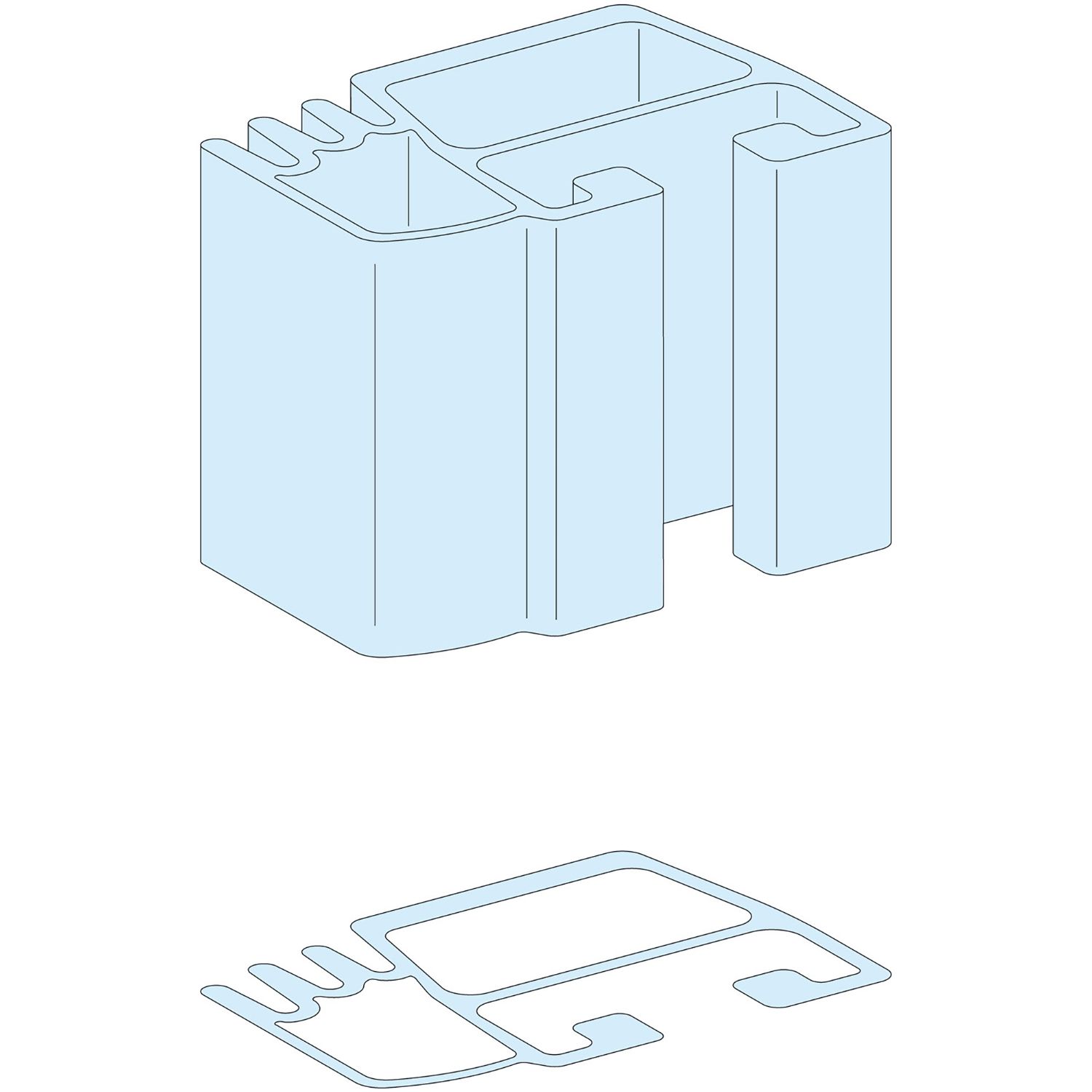

Linergy profile for rail 630A is a busbar system designed for vertical installation in electrical distribution panels. The busbar can handle currents up to 630A, making it suitable for high-power applications. Linergy profile with dimension of Length 1670mm x Width 32.5mm x Height 42.5mm The busbar has a compact design, allowing for efficient use of space in electrical panels.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 1 |
| Busbar description | Linergy |
| Range | Linergy |
| Product name | Linergy LGY |
| Product or component type | profile busbar |
| Range compatibility | PrismaSeT PrismaSeT P enclosure |
| Range of product | Linergy |
| Complementary | |
| [Icw] rated short-time withstand current | 30 kA (1 s) for 4 supports (rear position), 30 kA (1 s) for 3 supports (lateral position), 25 kA (1 s) for 3 supports (rear position) |
| Colour | natural |
| Compatibility code | Linergy_busbar |
| Installation direction | vertical, operating position: lateral, vertical, operating position: rear |
| Permissible current | 760 A at 35 °C: > IP31, 840 A at 35 °C: <= IP31 |
| [Ie] rated operational current | 800 A |
| [Ui] rated insulation voltage | 1000 V |
| Busbar cross section | 32.5 x 42.5 mm |
| Connection pitch | free connection position |
| Type of busbar connection | single t-slot |
| [Uimp] rated impulse withstand voltage | 12 kV (degree of pollution: 3) |
| Net weight | 1.64 kg |
| Length | 1670 mm |
| Enclosure/cubicle description | cubicle - width 650 + 150 mm, cubicle - width 650 mm |
| Environment | |
| Standards | IEC 61439-1, IEC 61439-2 |
| Product certifications | ASTA |
Only registered users can write reviews
Related products

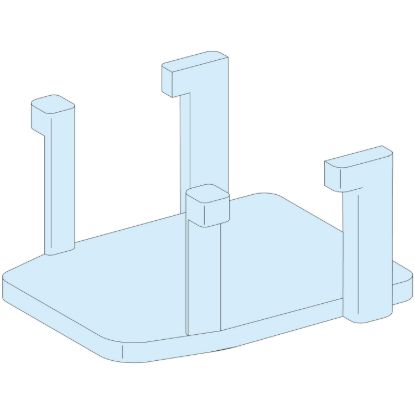

Choke, PrismaSeT P, 12 chocks for Linergy busbars
