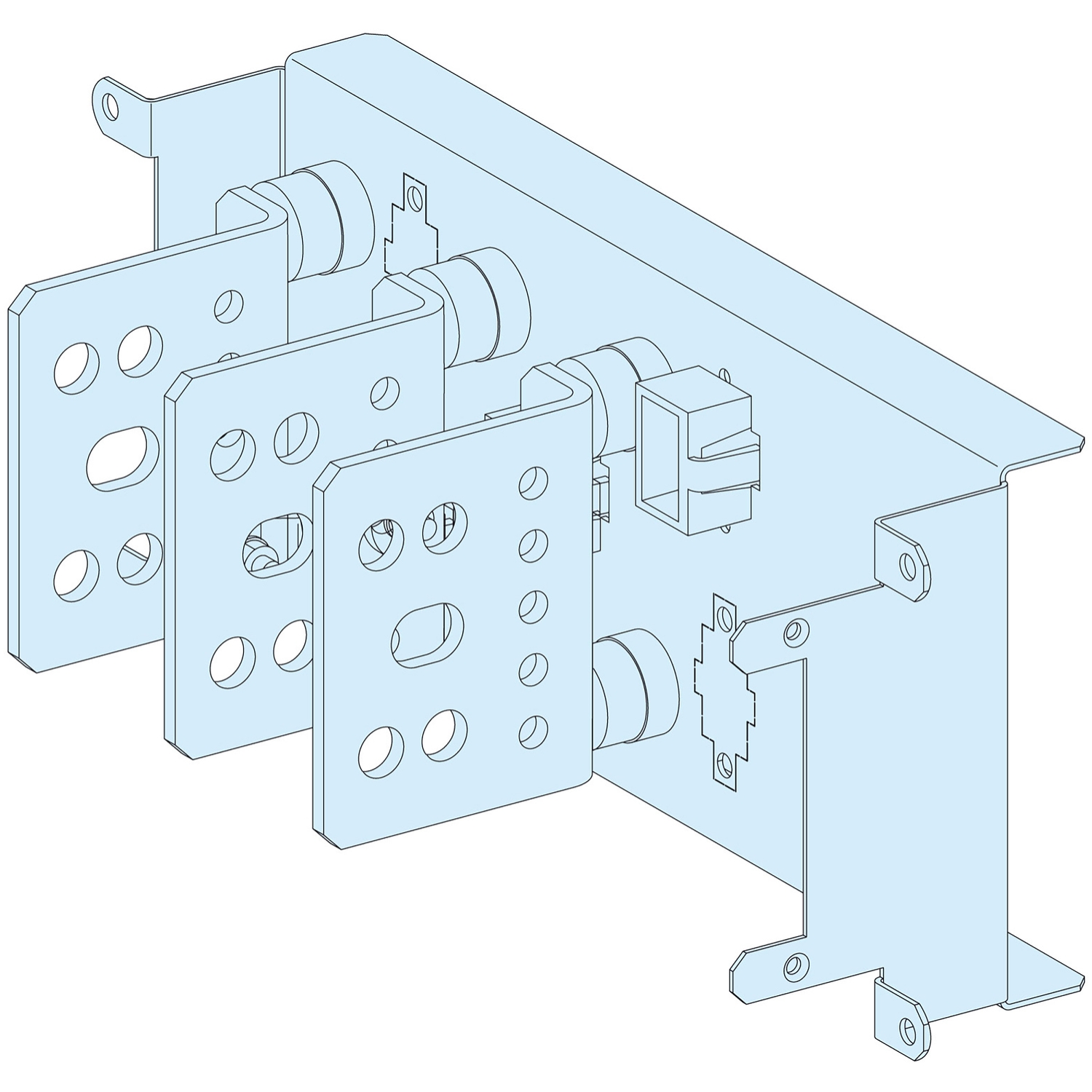

Universal connection transfer assembly designed for use in the PrismaSeT P. This assembly is for fixed horizontal installations of the NSX250 3P circuit breaker with a toggle control mechanism. Compatible with cubicle width 650 mm with busbar cross section 20 x 3 mm
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure |
| Range | PrismaSeT |
| Product or component type | connection transfer assembly |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | PrismaSeT PrismaSeT P enclosure |
| Range of product | PrismaSeT P |
| Product certifications | ASTA |
| Complementary | |
| Width | 350 mm |
| Quantity per set | set of 1 |
| Poles description | 3P |
| Enclosure/cubicle width | 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle horizontal 3P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 3P 1 direct 3 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 3P 1 direct 3 |
| [Ie] rated operational current | 250 A |
| Busbar cross section | 20 x 3 mm |
| Net weight | 2.84 kg |
| Installed device | ComPact: plug-in NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS250 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS250 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: toggle horizontal installation |
| Enclosure/cubicle description | cubicle - width 650 mm |
| Height | 150 mm |
| Cubicle-device connection | connection transfer assembly |
