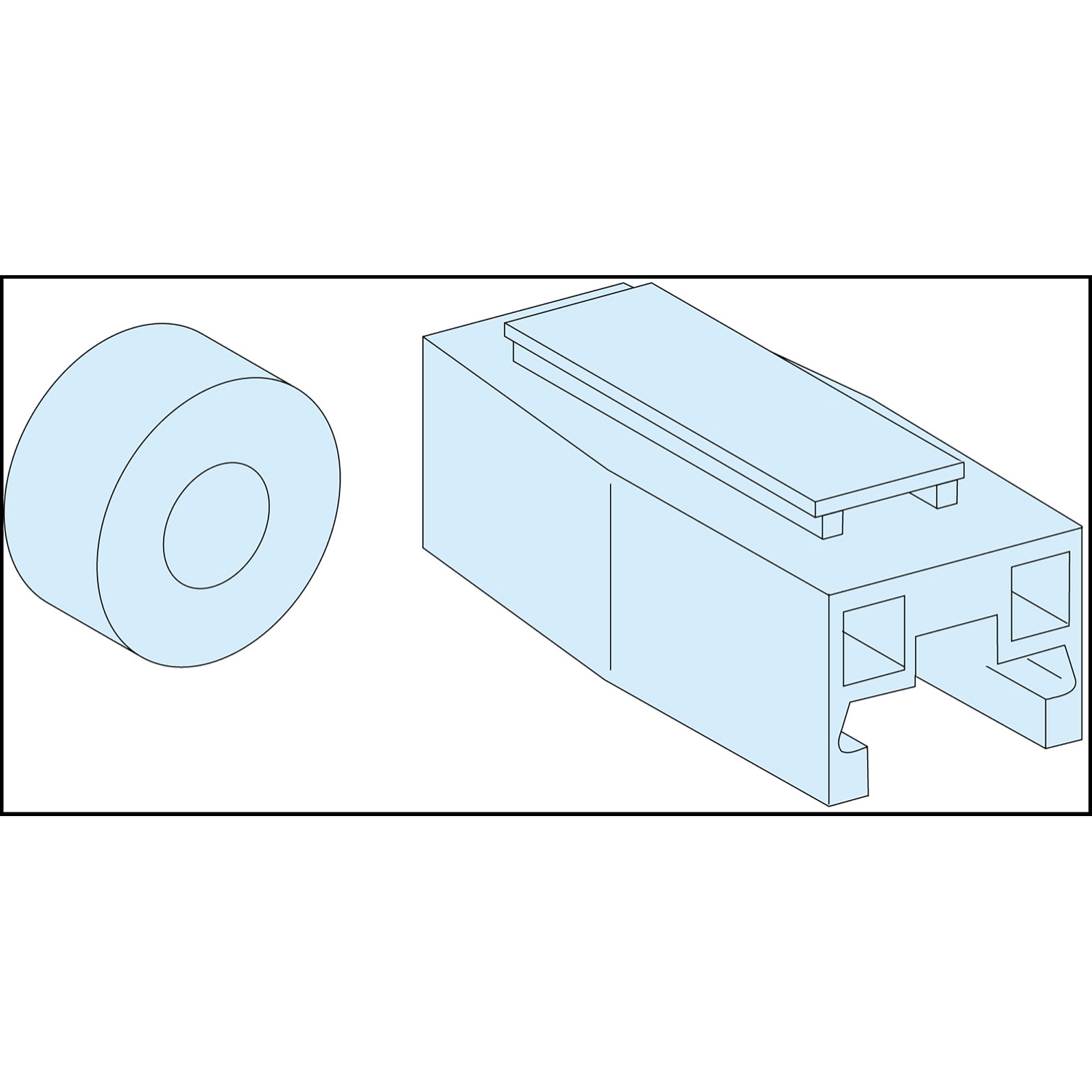

High-quality connector specifically designed for the Linergy FM system. This connector is a 4-pole unit, capable of handling up to 200 amps. It is intended for use with enclosures that have a width of 600 mm. Designed to seamlessly integrate with Linergy FM systems, providing a secure and efficient connection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 61439-2, inside enclosure, IEC 61439-1, inside enclosure |
| Range | Linergy |
| Product name | Linergy FM |
| Product or component type | connection |
| Range compatibility | Linergy Linergy FM device feeder, PrismaSeT Prisma iPM M enclosure, PrismaSeT Prisma iPM L enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure |
| Range of product | Linergy |
| Product certifications | ASTA |
| Complementary | |
| Colour | anthracite grey (RAL 7016) |
| Quantity per set | set of 1 |
| Poles description | 4P |
| [Ie] rated operational current | 200 A |
| Net weight | 0.08 kg |
| Enclosure/cubicle description | enclosure - width 600 mm |
| Cubicle-device connection | Linergy BS rear busbar, Linergy FM distribution block |
